Review Summary
Black
44.1 lbs (20kg)
63.43" (161.1cm)
No
7.64" (19.4cm)
29.25" (74.2cm)
1x 1/4"-20 Female Thread
No
No
China
1/4"-20 or 3/8"-16 Male
Carbon Fiber
Twist Lock
3
Yes
Leg 1: 1.26" (32mm)
Leg 2: 1.1" (28mm)
Leg 3: 0.98" (25mm)
Yes
Yes
Yes
+0 Degree to -90 Degree
No
1/4"-20 Screw (Quick Release Plate)
Ball Head
Flat Base with 3/8"-16 Female
4.39 lbs (1.99kg)
Head:
Base Diameter: 2.2" (57mm)
Height: 3.6" (91mm)
Camera Plate: 2.0 x 1.7" (50 x 44mm)
6940828313118

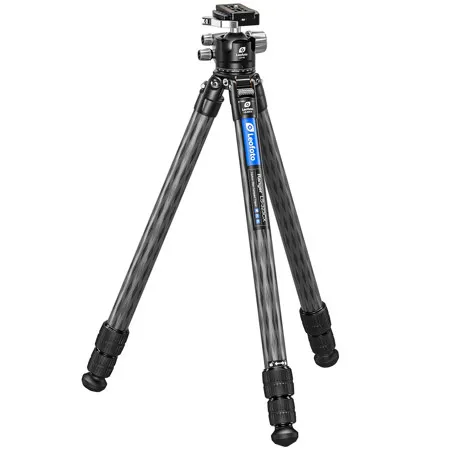

The brand new version of the Ranger Series, the Leofoto LS-323CX Carbon Fiber Tripod improves upon the classic Leofoto Ranger Series tripods with the latest technology. This model features angle stops have also been improved to be more ergonomic. This new angle stop design allows for one handed operation for convenience. This tripod features a 3/8" mounting stud and there is a 1/4th accessory mounting socket on the bottom as well as the side of the fixed apex/platform. (Apex/platform diameter is around (55mm/2.16in).
Three Angle Stops: 23-, 55-, and 85 Degree
1/4"-20 threaded Accessory Socket for Monitor, Microphone, LED light or More
Removable Ballast Hook
Interchangeable Feet (3/8")
Leofoto tripods features 10x carbon fiber tubes that make the tripod lightweight while maintaining a strong load capacity. The 6061 aluminum parts are CNC machined and hard anodized, making the surface tough against scratching and scuffing. The twist leg lock system is quickly deployed with a simple quarter turn. With the tripod's three variable leg angles, it allows you to splay the legs completely out, so the support can drop to a very low minimum height.
The included LH-40LR Lever-Release Ball Head is lightweight aluminum and features an Arca-type compatible quick release system. The lever release clamp allows quick attach. A precisely-machined ball provides ultra-smooth movements and a large, ergonomically-designed locking knob, enables the movement of the ball head to be controlled. Laser-engraved scales on the panning base provide precise control during panorama shooting and dual drop notches provide the capability for rapidly changing from horizontal to vertical orientation.
