Leofoto LS-324CXPRO X Ranger 4-Section Carbon Fiber Tripod with LH-40LR Ball Head

SKU: LEOLS324CXPR MFR: LS-324CXPRO+LH-40LR
Earn VIP Reward Points

Key Features

  • Capture stunning, stable shots with this lightweight carbon fiber tripod, perfect for travel photography.
  • Achieve precise camera positioning with the included LH-40LR ball head, ensuring smooth adjustments for any angle.
  • Enjoy quick and easy setup thanks to the 4-section leg design, ideal for on-the-go photographers.
  • Experience exceptional durability and stability with the robust carbon fiber construction, supporting up to 33.1 lbs.
  • Frame your perfect shot effortlessly with a versatile height range, from 6.9" to 58.6" for diverse scenes.
  • Transport your gear with ease using the compact 23.6" closed length and included carrying case.
See More Product Details
New Item?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Leofoto LS-324CXPRO+LH-40LR Specifications

General

General

Jump to...
  • Color

    Black

  • Load Capacity

    33.1 lbs (15kg)

  • Maximum Working Height

    58.6" (148.8cm)

  • Center Column

    No

  • Minimum Working Height

    6.9" (17.5cm)

  • Closed Length

    23.6" (59.9cm)

  • Bubble Level

    No

  • Detachable Monopod

    No

  • Country of Origin

    China

  • Primary Material

    Carbon Fiber

  • Leg Lock

    Twist Lock

  • Leg Sections

    4

  • Independent Leg Spread

    Yes

  • Leg Positions

    3

  • Leg Tube Diameter

    Leg 1: 1.26" (32mm)
    Leg 2: 1.1" (28mm)
    Leg 3: 0.98" (25mm)
    Leg 4: 0.87" (22mm)

Pan & Tilt

Jump to...
  • Drag Control

    Yes

  • Independent Pan Lock

    Yes

  • Independent Tilt Lock

    Yes

  • Lateral Tilt

    No

Physical Details

Jump to...
  • Weight

    4.3 lbs (2kg)

  • Dimensions

    Head:
    Base Diameter: 2.2" (5.6cm)
    Height: 3.6" (9.1cm)

  • UPC Code

    6940828320284

About Leofoto LS-324CXPRO+LH-40LR

The Leofoto LS-324CXPRO Ranger Series Carbon Fiber Tripod improves upon the classic Leofoto Ranger Series tripods with the latest technology. The Pro model features higher-density carbon fiber leg tubes for greater strength and rigidity. Another addition is the water-resistant twist leg locks, which help keep water and debris to a minimum. The angle stops have been improved to be more ergonomic. This new angle stop design allows for one-handed operation for added convenience.

Leofoto tripods feature lightweight carbon fiber tubes to reduce weight while maintaining a high load capacity. The T6-6061 grade aluminum hardware is CNC machined and hard-anodized, creating a durable and scratch-resistant setup. The standard twist leg lock system can be quickly deployed with a quarter turn. With the tripod's variable leg angle positions, the tripod can be fully spread out, allowing support to drop to a very low minimum height.

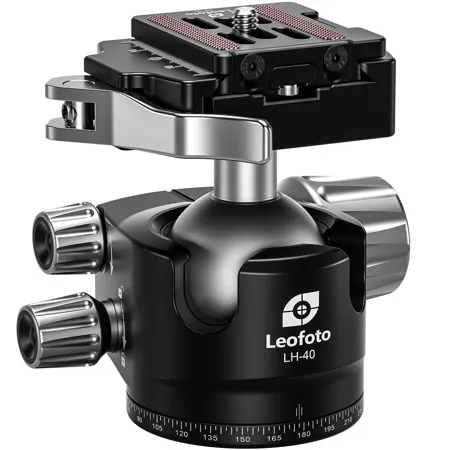

The Leofoto LH-40LR Ball Head is a support solution for general photography, providing fast and accurate control and solid support of your camera or lens. Aiming and horizon leveling can be accomplished in one instinctive motion, and rigid lockup takes just a quick twist of one control. The smaller profile and lack of protruding handles make the head easy to carry and pack. It is suitable for ground-level macro photography, lightweight backpacking, travel, and tabletop use. The head features a single ball locking knob, while the panning base has a separate lock and is laser-engraved in 2.5-degree increments from 0-360 Degree for accurate repeatability. The lever-release clamp allows quick attachment and detachment, unlike a knob clamp, which prioritizes maximum clamping force.

Leofoto LS-324CXPRO+LH-40LR Features

  • Latest Carbon Fiber Technology
  • Independent Leg Spread
  • Water-Resistant Twist Leg Locks
  • Improved Ergonomic Angle Stops
  • Three Angle Stops: 23 Degree, 55 Degree, 85 Degree
  • 1/4"-20 Threaded Accessory Socket
  • Rubber Feet (3/8") and Interchangeable Spikes

Key Features

  • Capture stunning, stable shots with this lightweight carbon fiber tripod, perfect for travel photography.
  • Achieve precise camera positioning with the included LH-40LR ball head, ensuring smooth adjustments for any angle.
  • Enjoy quick and easy setup thanks to the 4-section leg design, ideal for on-the-go photographers.
  • Experience exceptional durability and stability with the robust carbon fiber construction, supporting up to 33.1 lbs.
  • Frame your perfect shot effortlessly with a versatile height range, from 6.9" to 58.6" for diverse scenes.
  • Transport your gear with ease using the compact 23.6" closed length and included carrying case.

What's in the box:

  • Leofoto LS-324CXPRO X Ranger 4-Section Carbon Fiber Tripod
  • Carrying Case
  • Leofoto Lifetime Limited Warranty
