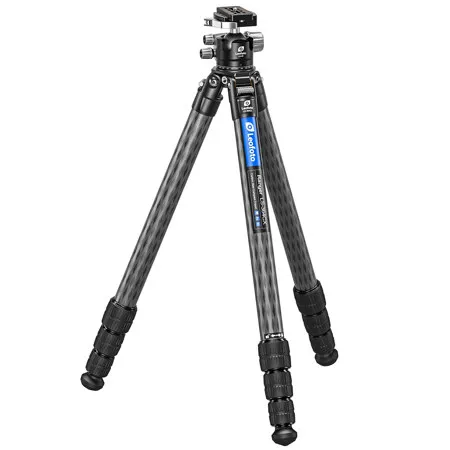

Leofoto LS-364C X Ranger 4-Section Carbon Fiber Tripod with LH-40LR Ball Head

SKU: LEOLS364CXLH MFR: LS-364CX+LH-40LR
Earn VIP Reward Points

Key Features

  • Capture stunning shots with the stable, sturdy build of this carbon fiber tripod, ensuring shake-free images.
  • Enjoy effortless portability thanks to its lightweight design, perfect for on-the-go photographers and videographers.
  • Achieve diverse perspectives with the versatile height range, adapting to any creative vision you have in mind.
  • Quickly mount and dismount your camera using the convenient quick-release plate, saving you precious time.
  • Experience smooth, precise adjustments with the integrated pan-tilt head, ideal for dynamic photography.
  • Trust in the durable materials of this tripod, providing reliable performance for all your adventures.
See More Product Details
New Item?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Leofoto LS-364CX+LH-40LR Specifications

General

General

Jump to...
  • Color

    Black

  • Load Capacity

    55 lbs (25kg)

  • Maximum Working Height

    61.7" (156.7cm)

  • Minimum Working Height

    7.1" (181mm)

  • Closed Length

    24.7" (62.7cm)

  • Accessory Mounting

    No

  • Bubble Level

    Yes

  • Country of Origin

    China

  • Head Mount Type

    3/8"-16 Male

  • Primary Material

    Carbon Fiber

  • Leg Lock

    Twist Lock

  • Leg Sections

    4

  • Independent Leg Spread

    Yes

  • Leg Positions

    3

  • Leg Tube Diameter

    Leg 1: 1.4" (36mm)
    Leg 2: 1.26" (32mm)
    Leg 3: 1.1" (28mm)
    Leg 4: 0.98" (25mm)

Pan & Tilt

Jump to...
  • Drag Control

    Yes

  • Independent Pan Lock

    Yes

  • Independent Tilt Lock

    Yes

  • Vertical Tilt

    +0 Degree to -90 Degree

  • Lateral Tilt

    No

Physical Details

Jump to...
  • Weight

    5.09 lbs (2.31kg)

  • UPC Code

    6940828313125

About Leofoto LS-364CX+LH-40LR

The brand new version of the Ranger Series, the Leofoto LS-364CX Carbon Fiber Tripod improves upon the classic Leofoto Ranger Series tripods with the latest technology. This model features angle stops have also been improved to be more ergonomic. This new angle stop design allows for one handed operation for convenience. This tripod features a 3/8" mounting stud and there is a 1/4th accessory mounting socket on the bottom as well as the side of the fixed apex/platform. (Apex/platform diameter is around (60mm/2.36in).

• Three Angle Stops: 23-, 55-, and 85 Degree
• 1/4"-20 threaded Accessory Socket for Monitor, Microphone, LED light or More
• Removable Ballast Hook
• Interchangeable Feet (3/8")

Leofoto tripods features 10x carbon fiber tubes that make the tripod lightweight while maintaining a strong load capacity. The 6061 aluminum parts are CNC machined and hard anodized, making the surface tough against scratching and scuffing. The twist leg lock system is quickly deployed with a simple quarter turn. With the tripod's three variable leg angles, it allows you to splay the legs completely out, so the support can drop to a very low minimum height.

The included LH-40LR Lever-Release Ball Head is lightweight aluminum and features an Arca-type compatible quick release system. The lever release clamp allows quick attach. A precisely-machined ball provides ultra-smooth movements and a large, ergonomically-designed locking knob, enables the movement of the ball head to be controlled. Laser-engraved scales on the panning base provide precise control during panorama shooting and dual drop notches provide the capability for rapidly changing from horizontal to vertical orientation.

Leofoto LS-364CX+LH-40LR Features

  • LH-40LR Arca-compatible lever-release ball head included
  • 10x carbon fiber with CNC-machined 6061 aluminum construction
  • One-handed angle stops with 23 Degree, 55 Degree and 85 Degree positions
  • 3/8" mounting stud with dual 1/4"-20 accessory sockets
  • Quarter-turn leg locks with removable ballast hook & 3/8" feet

Key Features

  • Capture stunning shots with the stable, sturdy build of this carbon fiber tripod, ensuring shake-free images.
  • Enjoy effortless portability thanks to its lightweight design, perfect for on-the-go photographers and videographers.
  • Achieve diverse perspectives with the versatile height range, adapting to any creative vision you have in mind.
  • Quickly mount and dismount your camera using the convenient quick-release plate, saving you precious time.
  • Experience smooth, precise adjustments with the integrated pan-tilt head, ideal for dynamic photography.
  • Trust in the durable materials of this tripod, providing reliable performance for all your adventures.

What's in the box:

  • Leofoto LS-364C X Ranger 4-Section Carbon Fiber Tripod
  • Carrying Case
  • Leofoto Lifetime Limited Warranty
