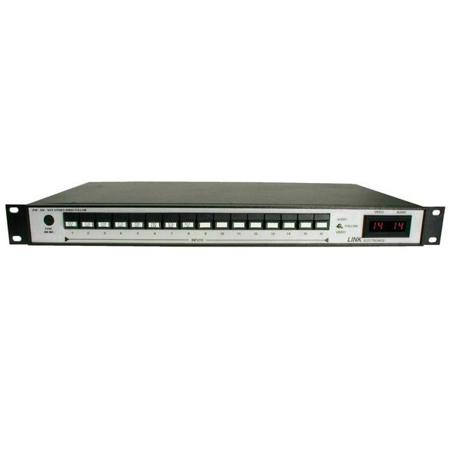

Link Electronics PAF-826 16x1 Stereo Audio Follow Switcher with Buttons

SKU: LEPAF826 MFR: PAF-826
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 16 stereo audio sources with this reliable switcher.
  • Enjoy high-fidelity audio with a wide frequency response using this component.
  • Easily manage audio routing in live events using the intuitive button interface.
  • Ensure optimal audio quality with low distortion, perfect for professional setups.
  • This audio switcher offers balanced differential configuration for clear sound.
  • Simplify your audio setup with this 16x1 switcher, built for easy integration.
See More Product Details
Special Order?Estimated to Ship: 08/25/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics PAF-826 Specifications

  • Input

    Number: 16x Stereo
    Impedance: 20KOhms, Looping
    Configuration: Balanced Differential
    Max Level: +24dBu

  • Output

    Number: 2x
    Level: +24dBu
    Impedance: 66Ohms +/- 5%
    Frequency Response: +/-0.02dB, 20Hz to 20KHz
    Insertion Gain: +/-0.05dB
    Slew Rate: >30V/½ Balanced
    Signal-to-Noise: >100dB A Wtd +8dBu
    THD: <0.004% @ 20KHz
    Crosstalk: 95dB @ 20KHz
    Output DC Offset: <10mV
    Common Mode Rejection: >80dB @ 20KHz
    Output Isolation: >100dB @ 20KHz

  • Temperature

    Ambient: 0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    0% to 90% non-condensing

  • Power Input

    120/240 VAC+/-10%

  • Power

    7 Watts

  • Dimensions (H x W x D)

    1.75 x 19 x 8.7" / 44.45 x 482.60 x 220.98mm

  • Weight

    6.5lbs / 2.95kg

About Link Electronics PAF-826

A high-performance solution for audio routing, the PAF-826 16x1 Stereo Audio Follow Switcher is a professional-grade device designed to seamlessly integrate with video companions. This advanced stereo audio switcher boasts high-impedance balanced input circuits, effectively minimizing loading effects and noise interference on incoming signals.

The PAF-826's low output impedance of 66 Ohms ensures a maximum level of +24dBu, delivering superior audio quality. It features input and output connections via printed circuit spring terminal blocks, offering reliable clamping action for secure operation, thanks to a force-amplifying hinge motion.

Equipped with a nine-pin female D connector, the PAF-826 provides a standard RS-232 control interface for easy connection to computers or modems. This stereo audio switcher is also available in other models, offering versatility for stereo, mono, or four-channel operation.

The PAF-826 integrates an RJ-11 telephone connector, enabling multiple audio follow units to operate in tandem for achieving various audio levels. Unlike other models, this switcher does not have push buttons on the front panel, as it receives its control functions from the VSW series switchers or RS-232 from a computer.

For added convenience, multiple switchers can be controlled by a single remote control panel from the PSR series. The PAF-826 is RS-232 controlled, and remote control is facilitated via RS-422 or RS-485 through an RJ11 telephone connector and cable assembly.

The PAF-826 Stereo Audio Follow Switcher combines digital switching logic with high-performance audio circuitry, laying the groundwork for the next generation of audio routing switchers. All units from the VSW, ASW, PAF, and PSR series occupy only one rack space and come with a power supply for reliable operation.

Whether used as an audio follow for the VSW-800 series video switchers or as a standalone audio switcher, the PAF-826 delivers exceptional performance and versatility, making it an essential tool for professional audio setups.

Link Electronics PAF-826 Features

  • 16 Inputs
  • Digital Switching
  • Balanced Differential
  • One Rack Unit Cabinet
  • Output Impedance, 66Ohms
  • RS-232, RS-422, RS-485

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Seamlessly switch between 16 stereo audio sources with this reliable switcher.
  • Enjoy high-fidelity audio with a wide frequency response using this component.
  • Easily manage audio routing in live events using the intuitive button interface.
  • Ensure optimal audio quality with low distortion, perfect for professional setups.
  • This audio switcher offers balanced differential configuration for clear sound.
  • Simplify your audio setup with this 16x1 switcher, built for easy integration.

What's in the box:

  • Link ELectronics PAF-826 16x1 Stereo Audio Follow Switcher with Buttons
  • Power Cord
  • Link Electronics 10 Year Limited Warranty
