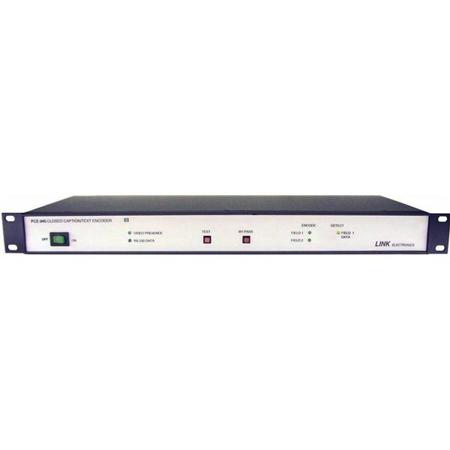

Link Electronics PCE-845 Closed Caption Encoder, NTSC and PAL, Field 1 & 2 On Line 21

SKU: LEPCE845 MFR: PCE-845
Earn VIP Reward Points

Key Features

  • Ensure accurate closed captioning with this Link Electronics video encoder.
  • Enjoy reliable NTSC and PAL support for seamless broadcast encoding.
  • Use this closed caption encoder for Field 1 & 2, Line 21 applications.
  • Get superior video quality with low latency encoding for live streams.
  • This broadcast equipment supports composite & S-VHS video inputs easily.
  • Simplify your workflow with user-friendly encoder controls and setup.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics PCE-845 Specifications

  • Input: Composite Video Level

    1Vpp +/-6dB

  • Input: Composite Video Impedance

    >100K Bridging

  • Input: Composite Video Connectors

    BNC

  • Input: Composite Video Return Loss

    40dB

  • Input: Composite Video Maximum DC

    4VDC

  • Input: Composite Video Common Mode Range

    8Vp-p

  • Input: S/VHS-Level Y Channel

    1Vpp +/-6dB

  • Input: S/VHS-Level C Channel

    0.6Vpp, Nominal

  • Input: S/VHS-Connector

    4 Pin Mini-DIN

  • Input: S/VHS-Impedance

    75Ohms Terminated

  • Input: Level Y Channel

    1Vpp +/-6dB

  • Input: Level R-Y Channel

    BETA or MII

  • Input: Level B-Y Channel

    BETA or MII

  • Input: Y, R-Y, B-Y - Connectors

    BNC

  • Input: Y, R-Y, B-Y - Impedance

    75Ohms, Terminated

  • NTSC Video: Number of outputs

    Two

  • Outputs: NTSC Video - Level

    1Vpp +/-6dB

  • Outputs: NTSC Video - Insertion Gain

    Unity

  • Outputs: NTSC Video - Impedance

    75Ohms

  • Outputs: NTSC Video - Connector

    BNC

  • Outputs: NTSC Video - Bandwidth

    26MHz

  • Outputs: NTSC Video - Tilt

    < 1% ref. 30Hz square wave

  • Outputs: NTSC Video - Hum

    >70dB, 1Vpp

  • Outputs: NTSC Video-Overshoot & Ringing

    <1%

  • Outputs: NTSC Video - Propagation Delay

    30nS +/-5%

  • Outputs: NTSC Video - Timing

    <5nS

  • Outputs: NTSC Video - S/N Ratio

    >50dB

  • Outputs: NTSC Video - Differential Phase

    <0.1 deg.

  • Outputs: NTSC Video - Differential Gain

    <0.1%

  • Outputs: Y Channel

    1Vpp +/-6dB

  • Outputs: R-Y Channel

    BETA or MII

  • Outputs: B-Y Channel

    BETA or MII

  • Outputs: Y, R-Y, B-Y - Bandwidth

    26MHz

  • Outputs: Y, R-Y, B-Y - Connectors

    BNC

  • S-VHS Video: Level - Y

    1Vpp +/-6dB

  • S-VHS Video: Level - C

    0.6Vpp, Nominal

  • S-VHS Video: Level - Impedance

    75Ohms

  • S-VHS Video: Level - Bandwidth

    26MHz

  • S-VHS Video: Level - Connector

    4 Pin Mini DIN

  • Front Panel Controls: AC Power

    On / Off

  • Front Panel Controls: By-Pass

    Push / Push, Maintained

  • Front Panel Controls: Test

    Push / Push, Momentary

  • Front Panel Controls: LED'S

    Video Presence
    RS-232 Data In
    Field 1 and Field 2

  • Rear Panel: Remote By-Pass

    Two wire terminal block

  • Rear Panel: Modem Connection

    9 Pin D wired as DTE

  • Rear Panel: Computer Connection

    9 Pin D wired as DCE

  • Rear Panel: Baud Rate

    Standard 1200, 8, N, 1

  • Environmental: AC In

    115 / 240VAC

  • Environmental: Power

    140mA

  • Ambient Temperature

    0 to 50 deg. C / 30 to 122 deg. F

  • Humidity

    10 to 90% non-condensing

  • AC In

    115/240V AC

  • Power

    140mA

  • Dimensions (W x H x D)

    19 x 1.75 x 8" / 482.6 x 44.45 x 203.2mm

  • Weight

    4.75lbs / 2.15kg

About Link Electronics PCE-845

Enhance your video production capabilities with the PCE-845 Closed Caption Encoder, a sophisticated and high-tech solution for embedding closed caption and text data into your video signals. This state-of-the-art encoder is expertly designed to insert four distinct channels of data into the vertical interval of line 21, field one of the NTSC signal. These channels include Caption Channel One, Caption Channel Two, Text Channel One, and Text Channel Two, ensuring a comprehensive captioning experience.

The innovative PCE-845 goes beyond the basics by also processing data on Line 21 of field two, adhering to the latest FCC specifications for closed captioning. With future-proofing in mind, the PCE-845 is equipped to handle data insertion on lines 10 through 25, with a simple internal jumper to select the correct line placement.

Compatibility is key, and the PCE-845 excels with its ability to work seamlessly with both NTSC and PAL systems. For PAL closed captioning, data is typically inserted on Line 22 of field one. The unit's versatility is further enhanced by its dual voltage operation, accommodating 115/240VAC at 50/60Hz, with internal selection for global use.

The PCE-845 offers a range of input signal options, including composite video, S/VHS, or component video (Y, R-Y, B-Y), and boasts two composite video outputs. When using a component format, the encoder meticulously matches the delay of each signal path to ensure a transparent throughput that maintains the integrity of your video.

Advanced connectivity is provided through an RS-232C Input/output data port on the rear panel, supporting baud rates from 600 to 4800 (jumper selected). A secondary data port is available for connecting an external modem. The encoder's front panel features a "TEST" switch that generates a test message on line 21, verifying the encoder's proper functionality.

For added convenience, the PCE-845 allows for both local and remote caption data reception through simultaneous connections to a modem and computer. Operational status is easily monitored with two front panel LEDs that indicate activity in field one or field two, along with additional indicators for input video and RS-232 presence.

The encoder also offers a user-friendly by-pass mode, which can be activated from the front panel, through software commands, or via remote control. This mode is designed to be transparent, ensuring that the video signal remains glitch-free when selected.

With the PCE-845 Closed Caption Encoder, professionals in the broadcast, post-production, and video editing industries can achieve advanced and accurate closed captioning, making their content accessible and compliant with regulatory standards.

Link Electronics PCE-845 Features

  • Line 21 Field 1
  • Line 21 Field 2
  • Caption & Text
  • Channel 1 & 2
  • News Wire
  • NTSC Input
  • S/VHS Input & Output
  • RS-232C Controlled
  • Y, R-Y, B-Y Input & Output
  • Two Composite Outputs

Warranty Information

This product has a limited warranty of 120 months.
