Link Electronics Analog CC Encoder and Data Recovery Decoder

SKU: LEPDR885 MFR: PDR-885
Earn VIP Reward Points

Key Features

  • Ensure reliable video quality with this Link Electronics analog CC encoder.
  • Achieve low latency encoding for seamless live broadcasts & critical monitoring.
  • This broadcast equipment supports multiple video formats, including composite & S-VHS.
  • Simplify your workflow with easy-to-use front panel controls for quick adjustments.
  • Maintain signal integrity with 75Ohms impedance for professional video outputs.
  • Perfect for studios: recover data with a dedicated data recovery decoder.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics PDR-885 Specifications

  • Input: Composite Video - Level

    1Vpp +/-6dB

  • Input: Composite Video - Impedance

    75Ohms, Terminated

  • Input: Composite Video - Connectors

    BNC

  • Input: Composite Video - Return Loss

    40dB

  • Input: Composite Video - Maximum DC

    4VDC

  • Input: Composite Video - CMR

    8Vp-p

  • Input: S/VHS - Level Y Channel

    1Vpp +/-6dB

  • Input: S/VHS - Level C Channel

    0.6Vpp, Nominal

  • Input: S/VHS - Connector

    4 Pin Mini-DIN

  • Input: S/VHS - Impedance

    75Ohms Terminated

  • Input: Level Y Channel

    1Vpp +/-6dB

  • Input: Level R-Y Channel

    BETA or MII

  • Input: Level B-Y Channel

    BETA or MII

  • Input: Y, R-Y, B-Y - Connectors

    BNC

  • Input: Y, R-Y, B-Y - Impedance

    75Ohms, Terminated

  • Number of NTSC Video Outputs

    Two

  • Outputs: NTSC Video - Level

    1Vpp +/-6dB

  • Outputs: NTSC Video - Insertion Gain

    Unity

  • Outputs: NTSC Video - Impedance

    75Ohms

  • Outputs: NTSC Video - Connector

    BNC

  • Outputs: NTSC Video - Bandwidth

    26MHz

  • Outputs: NTSC Video - Tilt

    < 1% ref. 30Hz square wave

  • Outputs: NTSC Video - Hum

    >70dB, 1Vpp

  • Outputs: NTSC Video-Overshoot & Ringing

    <1%

  • Outputs: NTSC Video - Propagation Delay

    30nS +/-5%

  • Outputs: NTSC Video - Timing

    <5nS

  • Outputs: NTSC Video - S/N Ratio

    >60dB

  • Outputs: NTSC Video - Differential Phase

    <0.1 deg.

  • Outputs: NTSC Video - Differential Gain

    <0.1%

  • Outputs: NTSC Video - DC Offset

    <0.2VDC

  • Outputs: Y Channel

    1Vpp +/-6dB

  • Outputs: R-Y Channel

    BETA or MII

  • Outputs: B-Y Channel

    BETA or MII

  • Outputs: Y, R-Y, B-Y - Bandwidth

    26MHz

  • Outputs: Y, R-Y, B-Y - Connectors

    BNC

  • S-VHS Video: Level - Y

    1Vpp +/-6dB

  • S-VHS Video: Level - C

    0.6Vpp, Nominal

  • S-VHS Video: Level - Impedance

    75Ohms

  • S-VHS Video: Level - Bandwidth

    26MHz

  • S-VHS Video: Level - Connector

    4 Pin Mini DIN

  • Decoder: Output

    Two

  • Decoder: Level

    Unity Gain +/-6dB

  • Decoder: Character Video

    90 IRE

  • Decoder: Character Background

    10 IRE

  • Decoder: Frequency Response

    -3dB to 26MHz

  • Decoder: Differential Gain

    <0.1%

  • Decoder: Differential Phase

    <0.1 deg.

  • Decoder: DC Offset

    <0.2Vdc

  • Decoder: Line Rate Tilt

    <0.1%

  • Decoder: Field Rate Tilt

    <0.1%

  • Front Panel Controls

    AC Power: On / Off
    By-Pass: Push/Push, Maintained
    Test: Push/Push, Momentary
    LED's, 36 total: Video Presence
    RS-232 Data In
    Field 1 & Field 2

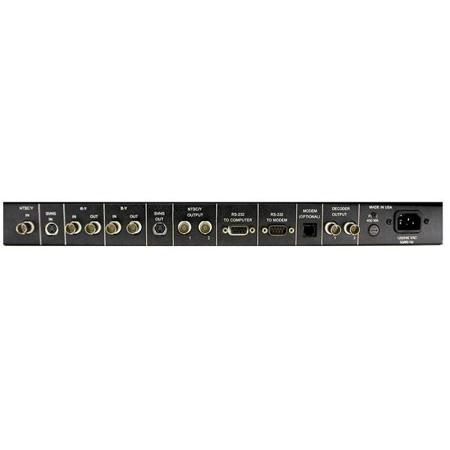

  • Rear Panel: Modem Connection

    9 Pin D wired as DTE

  • Rear Panel: Computer Connection

    9 Pin D wired as DCE

  • Rear Panel: Baud Rate

    Standard 1200, 8, N, 1

  • AC Input

    120 / 240VAC (+/-10%) 50 / 60Hz

  • Power

    8VAR

  • Ambient Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    10 to 90% non-condensing

  • Dimensions (W x H x D)

    19 x 1.75 x 8" / 482.6 x 44.45 x 203.2mm

  • Weight

    4.75lbs / 2.15kg

About Link Electronics PDR-885

While the PDR-885 primarily serves as a sophisticated Closed Caption Encoder with an integrated Decoder for embedding caption and text data into Line 21 of the NTSC signal, its capabilities extend far beyond this essential function. This advanced unit offers the flexibility to insert Caption and Text data into either field of the Vertical Blanking Interval (VBI), enhancing its utility for professional broadcast applications.

Moreover, the PDR-885 is equipped with the ability to recover data from the incoming video signal from either field of the VBI. This high-tech feature allows for the display of Open Captions through the built-in Closed Caption Decoder, and the data can be captured by a computer via the PDR-885's serial data port. This seamless integration of Encoding, Decoding, and Data Recovery functions can be performed concurrently, ensuring a reliable and efficient workflow for users.

The unit's video data path is engineered to near perfection, with differential phase and gain errors impressively low at less than 0.1 degrees and 0.1% respectively. The video bandwidth exceeds 26MHz, while the Signal to Noise ratio surpasses 60dB, ensuring high-quality video output. The PDR-885 provides versatile connectivity options with inputs and outputs for composite NTSC video, Component (RY/B-Y/Y), and S-Video.

For instances where composite video is utilized, a high-performance relay ensures power-off bypass of the program video, maintaining signal integrity. Remote captioning is facilitated through a secondary serial port designed for modem input, expanding the unit's operational reach. Both serial ports can be configured for RS-232 or RS-422 I/O, with an optional plug-in PCB, and an internal jumper allows for baud rate selections from 1200 to 9600 bps.

The PDR-885 is designed to accommodate both local and remote caption data processing, with the capability to connect a modem and computer simultaneously, though only one can be active at a time. User interaction is streamlined with front panel LED indicators that display the unit's status and signal the presence of data on the incoming video. Additionally, a pair of front panel push-buttons enables users to execute an encoded test message or to switch the unit into bypass mode.

Prepared for future advancements, the PDR-885 is ready for V-Chip technology integration, which will empower parents to filter out television programming they deem inappropriate. LINK Electronics is at the forefront of this innovation, embedding the technology into the firmware of the PDR-885. The device adeptly manages the automatic repetition of "V-Chip" data and can interleave it with existing Line 21 Closed Caption data. An optional plug-in modem, supporting 1200 or 2400 baud, is available to enhance the unit's capabilities further.

The PDR-885 stands out as a versatile and efficient solution for encoding and decoding analog signals, backed by the reputable brand Link Electronics, known for its commitment to producing high-quality audio and video equipment. This combination of an analog CC encoder and data recovery decoder makes it an indispensable tool for professionals in the broadcasting and video production industries.

Link Electronics PDR-885 Features

  • Encode, Data Recovery
  • Field 1 or Field 2
  • Caption & Text
  • Decoder Output
  • Optional Modem
  • Y,R-Y,B-Y Input & Output
  • Two Composite Outputs
  • S/VHS Input & Output
  • RS-232C Controlled, RS-422 Option
  • V-Chip Compatible

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Ensure reliable video quality with this Link Electronics analog CC encoder.
  • Achieve low latency encoding for seamless live broadcasts & critical monitoring.
  • This broadcast equipment supports multiple video formats, including composite & S-VHS.
  • Simplify your workflow with easy-to-use front panel controls for quick adjustments.
  • Maintain signal integrity with 75Ohms impedance for professional video outputs.
  • Perfect for studios: recover data with a dedicated data recovery decoder.

What's in the box:

  • Link ELectronics Analog CC Encoder and Data Recovery Decoder
  • Power Cord
  • Link Electronics 10 Year Limited Warranty
