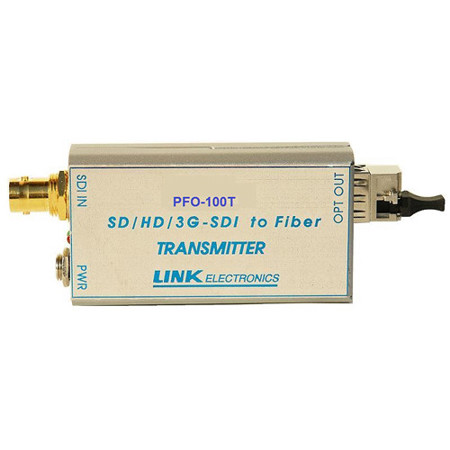

Link Electronics Fiber Optic 3G/HD/SD-SDI Transmitter, 24.9 Miles

SKU: LEPFO100T MFR: PFO-100T
Earn VIP Reward Points

Key Features

  • Achieve long transmission range with this fiber optic 3G/HD/SD-SDI transmitter.
  • Enjoy reliable connection with a robust 13 dB link margin for uninterrupted video.
  • Experience high image quality with low jitter, ensuring pristine broadcast clarity.
  • Benefit from strong compatibility using standard BNC and LC connectors for video signals.
  • Facilitate easy setup with indicators for power, signal, link, and optical power status.
  • Transmit up to 24.9 miles, ideal for professional wireless video transmitters setups.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics Fiber Optic Transmitter Specifications

  • Input Voltage

    5 VDC

  • Power Connector

    DC Latching Jack

  • Power Consumption, Each End

    600mW

  • Operating Temperature

    77 to 131 Degree F (25 to +55 Degree C )

  • Relative Humidity

    0 to 95%, non-condensing

  • Video: Transmission Method

    Digital

  • Video: Input Level

    800 mV (peak to peak)

  • Video: Input Impedance

    75 ohms

  • Video: Equalization

    350m@270 Mbps, 140m@1.485 Gbps, 50m@ 2.97 Gbps

  • Video: Output Impedance

    75 ohms

  • Video: Jitter (pathological data pattern

    < 120 ps

  • Video: Rise/Fall Times

    < 120 ps

  • Transmission: Operating Wavelength

    1310nm normal, (Optional 18 Ch. 1270-1610nm CWDM)

  • Transmission: Video Connector In/Out

    BNC

  • Transmission: Optical Connector

    LC (Standard)

  • Transmission: Transmitter Output

    -6-0 dBm (0-+3 dB m Optional)

  • Transmission: Receiver Sensitivity

    -20 dBm

  • Transmission: Link Margin/Distance

    13 dB/5 km@3G for Single Mode

  • Transmission: Fiber Type

    Single mode

  • Transmission: Transmission Distance

    40 km

  • Indicators

    Power, signal, link, optical power

  • Dimensions (L X W x H)

    3.2 x 0.65 x 2.0" (8.12 x 1.65 x 5.08 cm)

  • Weight

    4 oz (150 g)

About Link Electronics Fiber Optic Transmitter

Overcome distance limitations in your video production workflow with this compact and high-performance Fiber Optic 3G/HD/SD-SDI Transmitter, capable of transmitting high-quality video signals over an impressive distance of up to 24.9 miles. Engineered to maintain signal integrity, this transmitter is compliant with pathological pattern testing, ensuring reliable performance even under challenging conditions.

Featuring built-in equalization (EQ) and re-clocking capabilities, this transmitter is designed to optimize signal quality and reduce jitter, providing a stable and clear transmission. It is versatile enough to work with both single-mode and multimode fiber optic cables, making it a flexible solution for a variety of setups.

The transmitter supports a wide range of video formats, adhering to industry standards such as SMPTE 424M/297M for 1080p at 2.97Gbps, SMPTE 292M/297M for HDTV at 1.485Gbps, and SMPTE 259M/297M for SDTV at 270/360Mbps. This ensures compatibility with most professional video equipment and infrastructures.

Despite its diminutive size, this transmitter module can be easily integrated into any broadcast environment, thanks to its straightforward design. It is equipped with intuitive LED indicators that display the power status and SDI signal presence, allowing for quick visual confirmation of the device's operational status. This feature provides essential system diagnostic information at a glance, eliminating the need for additional test equipment.

The 3G/HD/SD-SDI Fiber Optical Transmission System is powered by its own 5 Vdc power supply, ensuring a dedicated power source for consistent performance. Whether you're setting up for live broadcasts, in-studio production, or remote video feeds, this fiber optic transmitter is an essential tool for professionals seeking to maintain high-quality video signals over long distances.

Link Electronics Fiber Optic Transmitter Features

  • Portable, Lightweight, Reliable, Efficient and Quick
  • Easy installation
  • Class 1 FDA and IEC60825-1 Laser Safety Compliant Pathological test compliance
  • LED indicators show you: 1) Power on. 2)HD/SDI data presence 19.4 Mbps to 3 Gbps SMPTE 424M/297M compliant SMPTE 292M/259M/297M compatible
  • Supports embedded audio Up to 40 km of fiber cable Low system jitter
  • Power from 5 VDC
  • Digital diagnostic function
  • High durability design

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Achieve long transmission range with this fiber optic 3G/HD/SD-SDI transmitter.
  • Enjoy reliable connection with a robust 13 dB link margin for uninterrupted video.
  • Experience high image quality with low jitter, ensuring pristine broadcast clarity.
  • Benefit from strong compatibility using standard BNC and LC connectors for video signals.
  • Facilitate easy setup with indicators for power, signal, link, and optical power status.
  • Transmit up to 24.9 miles, ideal for professional wireless video transmitters setups.

What's in the box:

  • Transmitter
  • Link Electronics 10 Year Limited Warranty
