Link Electronics PSR-816 Remote Control for AVS-816 Video Switcher

How the LINK PSR-816 Series Remote Control panels revolutionize your AVS-816 video/audio switcher operation is truly remarkable. Designed for seamless control from a remote location, the PSR-816 is a robust 16x1 controller. Each panel is equipped with an RS-232/422 serial port, enabling smooth interfacing with a computer.

The PSR-816 Remote Control for AVS-816 Video Switcher offers the flexibility of choosing between RS-232 or RS-422, thanks to an internal switch. Communication between the switchers is facilitated via an RS-485 compatible serial link, utilizing an RJ-11 modular jack. This unique configuration ensures a reliable connection over long distances, reaching up to 1,000ft with cost-effective, easily accessible cable.

The active video and audio channels are conveniently indicated by an LED above each pushbutton for the selected source signal. A front panel switch provides the option to select audio follow, break-away, or lock-out. The PSR-816's serial commands are user-friendly, and if needed, it can control the AVS-816 as a video or audio-only switcher.

One of the standout features of the AVS-816 is its modem control. The included software boasts a telephone dialer, enabling operation through a standard telephone line. A modem at the main switcher location communicates back to the PC, providing full feedback of a selected command.

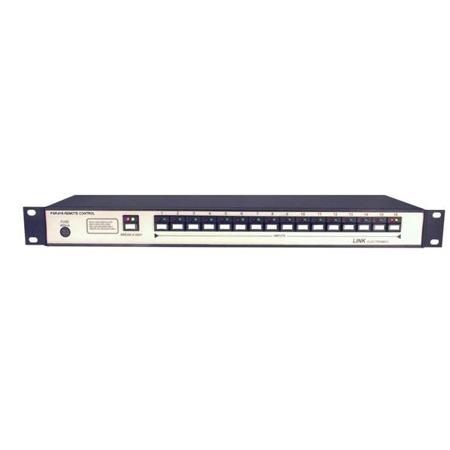

The LINK PSR-816 is housed in a durable one R.U. chassis. Its compact design features reduced depth, making it suitable for mounting on a table or desktop. The provided software supports the control of up to 32 switchers, making the PSR-816 Remote Control for AVS-816 Video Switcher a versatile and essential tool for your audio and video switching needs.
