Link Electronics PTC-892 Closed Caption Encoder/Decoder, SD SDI/Analog, CV, CAV, Y/C with LTC

SKU: LEPTC892 MFR: PTC-892
Earn VIP Reward Points

Key Features

  • Ensure accurate closed captioning with this reliable Link Electronics encoder/decoder.
  • Achieve seamless SD SDI and analog video encoding with low latency for live broadcasts.
  • Enjoy wide compatibility with CV, CAV, and Y/C inputs for diverse video sources.
  • Utilize LTC inputs for precise timecode synchronization in professional video workflows.
  • Remotely control and monitor your closed captioning via RS-232 for efficient management.
  • Simplify setup with user-friendly front panel controls for input and output selection.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics PTC-892 Specifications

  • Video Inputs: SD SDI

    Connector: One, BNC
    Standard: SMPTE 259M-C 270Mb/s
    Impedance: 75Ohms, terminated
    Signal Level: 800mV +/- 10%
    Return Loss: >18db to 270MHzOne, BNC

  • Video Inputs: SD analog

    CV, Y and G: One, BNC
    1Vpp +/- 3d (with sync)
    C, U and B: One, BNC
    V and R: One, BNC
    S-video: One, mini-din
    Impedance: 75Ohms, terminated
    R, B, U and V: 0.7Vpp +/- 3db (100% Sat)
    C: 0.8Vpp +/- 3db (100% Sat)
    Return Loss: 40db
    Maximum DC: 3.2V DC

  • Inputs: Longitudinal Time Code

    +4db analog signal

  • Inputs: Weather Lift GPI

    Activated when shorted

  • Inputs: AC power

    85 to 264VAC 50 / 60Hz

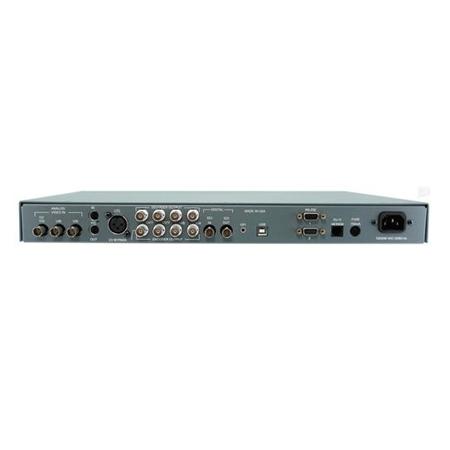

  • Rear Panel Connectors: Video

    Thirteen, BNC

  • Rear Panel Connectors: S-video

    mini-din

  • Rear Panel Connectors: LTC

    XLR plug

  • Rear Panel Connectors: Weather Lift GPI

    3.5 mono audio plug

  • Rear Panel Connectors: RS-232

    9 pin D connectors

  • Rear Panel Connectors: Modem

    RJ11 (optional)

  • Rear Panel Connectors: USB

    "B" type plug

  • Rear Panel Connectors: Power

    IEC-320 male

  • Front Panel Controls: AC power

    On / Off

  • Front Panel Controls: Menu knob

    Push / rotary

  • Front Panel Controls: Input Selection

    Six, push/push momentary

  • Front Panel Controls: Output Selection

    Push / push momentary

  • Front Panel Controls: Test

    Push / push momentary

  • Front Panel Controls: Bypass

    Push / push momentary

  • Encoder Video O/P: SD SDI

    Connector: One, BNC
    Standard: SMPTE 259M-C 270Mb/s
    Impedance: 75Ohms, terminated
    Signal Level: 800mV +/- 10%
    Delay: 1200ns +/- 5% (Propagation)One, BNC

  • Encoder Video Output: SD analog

    CV, Y and G (with sync): Two, BNC (with sync)
    C, U and B: One, BNC
    V and R: One, BNC
    S-video: One, mini-din
    All analog outputs: Unity +/- 5%
    Impedance: 75Ohms
    Tilt: <1% ref. 30Hz square wave
    Hum: >70db, 1Vpp
    Overshoot & Ringing: <1% (SD analog)
    Delay: 180ns +/- 5% (Propagation)
    SNR: >50db
    Differential gain: <1% (SD analog)
    Differential phase: <1 deg. (SD analog)
    DC Offset: <+/- 0.2V DC (SD analog)
    Frequency Response: -3db to 26MHz (SD analog)

  • Decoder Output: SD analog

    CV, Y and G: Two, BNC (with sync)
    C, U and B: One, BNC
    V and R: One, BNC
    All SD analog: Unity +/- 5%
    Impedance: 75Ohms
    Character Level: 90 IRE (CV,Y,R,G & B)
    Background Level: 10 IRE (CV,Y,R,G & B)
    Background Insert: 0V DC (C,U and V)

  • Power

    24W

  • Ambient Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    10 to 90% non-condensing

  • Dimensions (H x W x D)

    1.75 x 19 x 10.75" / 44.45 x 482.6 x 273.05mm

  • Weight

    5lbs / 2.27kg

About Link Electronics PTC-892

The PTC-892 Closed Caption Encoder/Decoder, a sophisticated product from Link Electronics, is an advanced solution for inserting, decoding, and recovering caption text data for NTSC/PAL signals. This high-tech device is compatible with a variety of signals, including composite, Y/C, S-video, RGB, and YUV I.

Designed for optimal functionality, the PTC-892 allows for caption text to be encoded in either field of the Vertical Blanking Interval (VBI). The inserted data can be displayed as open captions through the decoder output(s). Additionally, it can recover caption data from either field of the VBI on the incoming or outgoing video, making it an innovative tool for broadcasting applications.

The PTC-892 stands out with its ability to perform encoding, decoding, and data recovery simultaneously. These functions can be controlled either through the front panel menus or by serial communications. It features inputs and outputs for both I analog, including composite, Y/C, S-video, YUV, and RGB.

In case of power loss, the PTC-892 has a feature that bypasses the composite analog I, ensuring uninterrupted operation. It also incorporates a weather-lift feature that moves the caption up to 4 lines when a contact-closure is detected on its GPI input. This feature is designed to ensure that captions do not interfere with emergency crawls, in compliance with FCC requirements.

The PTC-892 offers remote captioning through its dual serial communication ports, allowing for multiple encoders to be controlled at once. It also features a front panel with LEDs that display the unit status, including NTSC/PAL detection, modem status, encode on/off, video presence detection, negative pedestal on/off, serial data detection, and LTC detection.

This state-of-the-art encoder/decoder is V-chip technology compliant and TSID ready, with the ability to interweave "VChip" data with existing line 21 closed captioning data. It also includes a Longitudinal Time Code (LTC) input for precise caption timing with the video. The front panel Vacuum Fluorescent Display (VFD) and a rotary optical encoder provide easy selection of various operating set-up functions.

In summary, the PTC-892 Closed Caption Encoder/Decoder is a versatile, high-quality product that offers a comprehensive solution for encoding and decoding closed caption signals in television broadcasting.

Link Electronics PTC-892 Features

  • V-Chip compatible & TSID ready
  • Dual RS-232 com ports
  • LTC input & "B" Type USB port
  • Detailed front panel display with menus
  • Data Recovery of both caption & text
  • Weather Lift up to 4 lines
  • ½ SD SDI/analog encoded outputs
  • User selectable data recovery modes
  • Firmware version viewed from front panel
  • User, power-up factory default settings
  • SD analog decoded outputs including component
  • Optional Modem w/ RI, OH CD indication
  • User selectable encode modes, including newsw
  • SD SDI to SD analog conversion
  • Auto Detection of NTSC/PAL
  • Encodes both caption text

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Ensure accurate closed captioning with this reliable Link Electronics encoder/decoder.
  • Achieve seamless SD SDI and analog video encoding with low latency for live broadcasts.
  • Enjoy wide compatibility with CV, CAV, and Y/C inputs for diverse video sources.
  • Utilize LTC inputs for precise timecode synchronization in professional video workflows.
  • Remotely control and monitor your closed captioning via RS-232 for efficient management.
  • Simplify setup with user-friendly front panel controls for input and output selection.

What's in the box:

  • Link ELectronics PTC-892 Closed Caption Encoder/Decoder
  • Link Electronics 10 Year Limited Warranty
