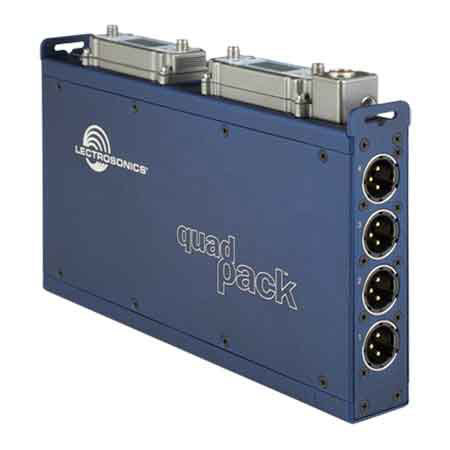

Lectrosonics Quadpack Power & Audio Interface for SRa Series Compact Receivers, 4x Balanced XLR-Male, 4x Balanced TA3-Male

SKU: LEQUADPACK

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lectrosonics Quadpack Specifications

  • Compatibility

    SRa Series Compact Receivers

  • Power Interface Connector

    dB-25 (Unislot)

  • Audio Outputs

    4x Balanced XLR-Male
    4x Balanced TA3-Male

  • Power

    Hirose 4-pin
    Coaxial (LZR)

  • Power Requirement

    7 to 18 VDC
    400 mA max

  • Dimensions (H x W x D)

    4.95 x 9.40 x 1.40" / 12.57 x 23.87 x 3.55cm

  • Weight

    Assembly only: 1.45lbs (0.66kg)
    With 2-SRa5P receivers: 2.20lbs (1.0 kg)
    With 2-SRa5P receivers: 2.35lbs (1.07kg)

About Lectrosonics Quadpack

Make your field recording sessions more efficient and organized with the Lectrosonics Quadpack Power & Audio Interface for SRa Series Compact Receivers. This device is specifically designed for portable applications, offering a streamlined solution for mounting and interconnecting two SRa receivers, thereby enabling the management of 4 audio channels.

The Quadpack's lightweight yet robust construction makes it an ideal addition to your bag systems, providing ample space for your mixer, recorder, and transmitters for seamless audio feed to cameras. It ensures all your connections are neatly routed and easily accessible, with one set of audio outputs dedicated to feeding a recorder and another set for the mixer.

Powering the Quadpack is made convenient with an external DC source through one or both of the connectors. It features smart circuitry that draws power from the jack with the higher voltage, allowing for a backup power supply to prevent any interruptions if power is cut from one of the jacks.

The Quadpack is equipped with interchangeable side panels, housing LZR and Hirose 4-pin power connectors, 4 balanced TA3 outputs, and 4 balanced XLR connectors. These panels are secured with four screws, two on the top and two on the bottom, enabling you to easily switch panels to their opposite sides if required.

To avoid any damage, it's recommended to use a connector, such as Hirose, Power, or XLR, on one of the lower connectors to remove the panel. The pin connectors for the side panels are conveniently located on the lower end of the panel.

In summary, the Lectrosonics Quadpack Power & Audio Interface for SRa Series Compact Receivers offers a comprehensive solution for managing your audio channels in the field, ensuring reliability, efficiency, and ease of use.

Lectrosonics Quadpack Features

  • Streamlined audio interface for dual SRa Series receivers and 4-channel management
  • Durable and lightweight design for optimal portability in field applications
  • Dual DC input with smart circuitry for uninterrupted power supply
  • Includes LZR and Hirose 4-pin connectors for versatile power options
  • 4 balanced TA3 outputs and 4 balanced XLR connectors for comprehensive connectivity
  • Easy-to-switch interchangeable side panels for customized setup

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Streamlined audio interface for dual SRa Series receivers and 4-channel management
  • Durable and lightweight design for optimal portability in field applications
  • Dual DC input with smart circuitry for uninterrupted power supply
  • Includes LZR and Hirose 4-pin connectors for versatile power options
  • 4 balanced TA3 outputs and 4 balanced XLR connectors for comprehensive connectivity
  • Easy-to-switch interchangeable side panels for customized setup

What's in the box:

  • Lectrosonics Quadpack Power & Audio Interface
  • Slot Plug
  • Combo Tool
  • Manual
  • Lectrosonics 1 Year Limited Warranty
