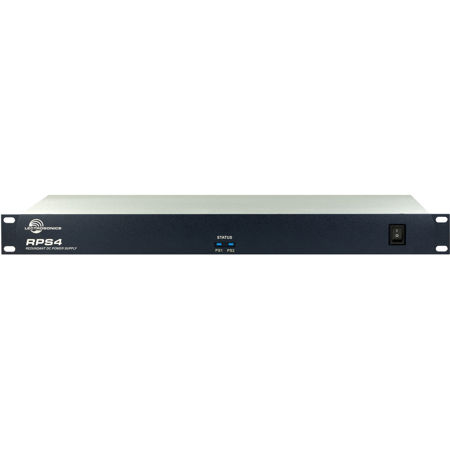

Lectrosonics RPS4 Redundant DC Power Supply

SKU: LERPS4

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What devices can the RPS4 Redundant DC Power Supply be used with?

The RPS4 Redundant DC Power Supply is perfect for low voltage devices such as wireless microphone receivers, IFB transmitters, and audio signal processing equipment.

What is the purpose of the two internal power supplies and temperature-controlled fans in the RPS4?

The two internal power supplies and temperature-controlled fans in the RPS4 operate in a failover mode. This provides an automatic backup power source in the event of a failure, ensuring uninterrupted operation of your devices.

What is the benefit of the 1RU chassis design in the RPS4?

The 1RU chassis design of the RPS4 eliminates the need for separate power strips with individual 'wall warts' or 'boa style' power supplies. This not only saves space but also simplifies your setup, making it more efficient and organized.

How does the RPS4 ensure a secure and reliable connection?

The RPS4 ensures a secure and reliable connection through its threaded and lockable DC power connectors. This design feature helps to prevent accidental disconnects.

What makes the RPS4 a durable and reliable power supply option?

The RPS4 is constructed with high-quality materials and advanced components, making it durable and capable of withstanding frequent use. Its redundant design and automatic backup feature also enhance its reliability, making it an ideal power supply solution for professionals.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Lectrosonics RPS4 Specifications

  • Input voltage range

    100 to 240 VAC; 1.4A maximum; 50/60Hz

  • Overall power consumption

    100W maximum

  • Outputs

    Four 12VDC; 1.5A; 18W

  • Output fuses

    Individual 2A automotive blade type

  • Temperature range

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Output DC ripple

    <20 mV

  • Dimensions (HxWxD)

    1.75 x 19 x 9.1" (4.45 x 48.26 x 23.11cm) (width with faceplate)
    1.75 x 17.4 x 9.1" (4.45 x 44.20 x 23.11cm) (width with housing)

  • Weight

    4.68 lbs (2.12kg)

About Lectrosonics RPS4

Be assured of a steady and reliable power source for your low voltage devices with the RPS4 Redundant DC Power Supply. This advanced power solution is perfect for powering a range of equipment, including wireless microphone receivers, IFB transmitters, and audio signal processing devices.

The RPS4 is equipped with two internal power supplies and two temperature-controlled fans. These components work in a failover mode, providing an automatic backup power source in the event of a failure. This innovative design ensures uninterrupted operation of your devices, enhancing their reliability and performance.

The compact 1RU chassis of the RPS4 eliminates the need for separate power strips with individual "wall warts" or "boa style" power supplies. This not only saves space but also simplifies your setup, making it more efficient and organized.

The power cables from the RPS4 to your devices can be securely routed to prevent accidental disconnects, freeing up space on power strips in your equipment rack. The DC power connectors are threaded and lockable, ensuring a secure and reliable connection.

In summary, the RPS4 Redundant DC Power Supply is a durable, high-quality solution that provides a stable and reliable power source for your low voltage devices. Its innovative design and advanced features make it an ideal choice for professionals seeking a reliable and long-lasting power supply for their equipment.

Lectrosonics RPS4 Features

  • Dual power supplies for fail-over operation
  • Four 12VDC 1.5A outputs
  • Dual cooling fans - temp controlled
  • 2A automotive type blade fuses
  • Locking coaxial DC power connectors
  • LED indicators blink red during fault
  • Spare fuse holder on rear panel

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Equipped with two internal power supplies and two temperature-controlled fans for automatic backup
  • Compact 1RU chassis design, eliminating the need for separate power strips
  • Power cables can be securely routed to prevent accidental disconnects and free up space
  • Threaded and lockable DC power connectors for a secure and reliable connection
  • Durable and high-quality construction, ensuring long-lasting performance and reliability

What's in the box:

  • Lectrosonics RPS4 Redundant DC Power Supply
  • Lectrosonics 1 Year Limited Warranty
