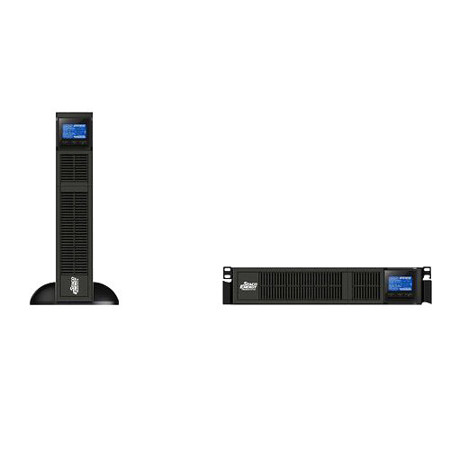

Link Electronics UniStar V Single Phase Uninterruptible Power Supply, 1kVA/0.9kW
See all Link Electronics items

Link Electronics UniStar V Single Phase Uninterruptible Power Supply, 1kVA/0.9kW

SKU: LESCV10001 MFR: SCV-10001
Be the first to review this itemAsk a Question
$870.00
OR
$73/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Safeguard your audio equipment with this 1kVA Uninterruptible Power Supply (UPS).
  • Enjoy pure sine wave output, ensuring clean power for sensitive audio processors.
  • Get automatic voltage regulation (AVR) that stabilizes power for consistent audio quality.
  • Benefit from hot-swappable batteries for continuous power, keeping your audio running.
  • Protect your audio investment with surge protection up to 400 joules, extending its life.
  • Easily monitor power conditions with the user-friendly display on this Link Electronics UPS.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Link Electronics UniStar V Power Supply Specifications

  • Ratings

    120Vac

  • Load kVA / kW

    1kVA / 0.9kW

  • Input Cord

    5-15P

  • Output Connection

    (4) 5-15R

  • Voltage Range

    55Vac -150Vac, +/- 5%

  • Frequency Range

    40Hz - 70Hz

  • Frequency

    50/60 Hz Auto-Select, +/- 5Hz

  • Phase/Wire

    Line + Ground

  • Power Factor

    >0.99 at nominal voltage (100% Load)

  • Transfer Time

    0ms

  • AC Leakage Current

    <5mA

  • Surge Protection

    400 joules

  • Output: Capacity

    1kVA/900W

  • Output: Voltage

    120 Vac

  • Output: Voltage Regulation

    +/- 1%

  • Output: Frequency (Sync Range)

    47 - 53Hz or 57 - 63Hz

  • Output: Frequency Range (Battery Mode)

    50Hz +/- 0.5% or 60Hz +/- 0.5%

  • Output: Crest Factor Ratio

    5:1

  • Output: Harmonic Distortion

    < 2% THD (Linear Loads), < 8% THD (Battery Mode)

  • Output: Transient Response

    < = 60ms/5%

  • Output: Waveform

    Pure Sine Wave

  • Output: Efficiency AC Mode

    1kVA 86%/88% peak

  • Output: Efficiency Bat. Mode

    1kVA 83%/86% peak

  • Output: DC Start

    Yes

  • Output: Cooling

    Load Dependent Variable Speed Fans

  • Output: Over temperature

    Normal Mode - Transfer to bypass;
    Battery Mode - UPS shuts down immediately

  • Output: Overload

    <105% continuous, >120% for 30 seconds, >150% for 10 seconds

  • Output: Full Load Heat

    1kVA

  • Output: Rejection BTU/hr

    359

  • Internal Battery Run Time

    2.7 (Full Load -Minutes)

  • Battery

    2 ea.12V/9AH

  • Type

    Maintenance Free Cell - VRLA Lead Acid

  • Charging Current

    120Vac - 1.0 Amps

  • Charging Voltage

    27.4Vdc

  • Hot - Swappable

    Yes

  • Recharge Time (Typical)

    4 hours to 90%

  • Extended Battery

    Yes - Hot Swappable

  • DC Linkage Current

    <30uA (+/-10uA) with no AC applied and unit Off

  • Battery Management

    Automatic Battery Management (ABM) saves battery life

  • Operating Temp

    32 Degree F / 0 Degree C - 104 Degree F / 40 Degree C

  • Storage Temp

    -13 Degree F/-25 Degree C - 122 Degree F/40 Degree C (-LB Units -13 Degree F / -25 Degree C - 122 Degree F / 60 Degree C)
    (Battery Packs, "BAT" & Units with internal batteries require refresh charing every 3 month @ 104 Degree F (40 Degree C))

  • Altitude

    0 - 2,000 m up to 40 Degree C

  • Noise Level

    <50dBA @ 1 m

  • Relative Humidity:

    0 to 90% non-condensing

  • Rack Dimensions (H x W x D)

    3.39 x 17.24 x 16.44" (86.2 x 438.0 x 417.5mm)

  • Tower Dimensions (H x W x D)

    17.24 x 3.39 x 16.44" (438.0 x 86.2 x 417.5mm)

  • Weight

    29 lbs (13kg)

About Link Electronics UniStar V Power Supply

Single Phase, On-Line Double Conversion, Uninterruptible Power Supply

The UniStar V features a field-proven Digital Signal Processor (DSP) achieving high reliability, while providing protection from electrical power disturbances to the connected load. The convertible tower/rack design offers maximum flexibility, enabling UPS integration into a wide variety of environments.

Industry-leading functionality is standard and includes hot swappable battery, powerful internal charger, emergency shut-down and programmable receptacles. The UniStar V is an ideal power protection solution for servers, networks, telecommunications, industrial equipment, and manufacturing processes.

Market Applications:

• Broadcast
• Processing Manufacturing (food/beverage, pharmaceutical, plastics, packaging)
• Water / Waste Water Treatment
• Hospitals/Medical
• Education /Research Laboratories

The UniStar V provides reliable protection against:

• Blackouts
• Voltage fluctuations
• Frequency fluctuations
• Harmonics, electrical noise, and brownouts

Link Electronics UniStar V Power Supply Features

  • Tower/Rack Mount Convertible Design
  • Compact and Lightweight
  • Advanced Digital Control Technology
  • Wide Input Voltage and Frequency Ranges
  • Near Unity Power Factor
  • Hot Swappable Battery, Built-in Charger
  • Optional Extended Run Time Capability
  • Optional Make-Before-Break Maintenance Bypass
  • DC-start function Programmable receptacles
  • Emergency shutdown control
  • Communication software
  • User-friendly Plug-and-Play Design
  • Innovative battery management circuit
  • Internal maintenance-free sealed-type battery

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Safeguard your audio equipment with this 1kVA Uninterruptible Power Supply (UPS).
  • Enjoy pure sine wave output, ensuring clean power for sensitive audio processors.
  • Get automatic voltage regulation (AVR) that stabilizes power for consistent audio quality.
  • Benefit from hot-swappable batteries for continuous power, keeping your audio running.
  • Protect your audio investment with surge protection up to 400 joules, extending its life.
  • Easily monitor power conditions with the user-friendly display on this Link Electronics UPS.

What's in the box:

  • Power Supply
  • Link Electronics 1 Year Limited Warranty
