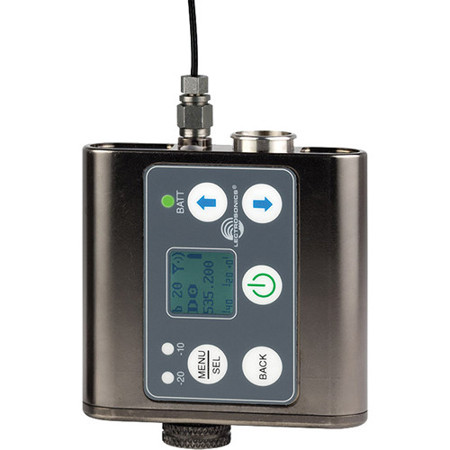

Lectrosonics SMDWB Wireless Miniature Wideband Beltpack Microphone Transmitter and Recorder, 14.5 Hours Battery Runtime, A1: 470.100 to 537.575MHz

SKU: LESMDWBA1 MFR: SMDWBA1
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Lectrosonics wireless microphone transmitter; exceptional sound quality.
  • Enjoy extended use with a 14.5-hour battery life, perfect for long recording sessions and broadcast events.
  • Achieve professional results with the wideband beltpack transmitter, ideal for broadcast and ENG applications.
  • Ensure reliable audio transmission with selectable RF power output; switch between 25, 50, or 100 mW.
  • Record directly to microSDHC with the built-in recorder, offering 24-bit audio in .wav format.
  • Experience low latency and clear sound using Digital Hybrid Wireless compatibility modes for seamless audio.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lectrosonics SMDWB Specifications

Used for

Used for

Jump to...
  • Used for

    Broadcast, EFP and ENG Applications

Transmitter

Jump to...
  • Operating frequencies

    A1: 470.100 to 537.575 MHz

  • Channel Spacing

    Selectable; 25 or 100 kHz

  • RF Power output

    Switchable; 25, 50 or 100 mW

  • Compatibility Modes

    Digital Hybrid Wireless (NU Hbr), 200 Series, 100 Series, Mode 3, Mode 6, IFB

  • Pilot tone (Digital Hybrid Mode)

    25 to 32 kHz; 5 kHz deviation

  • Frequency stability

    +/- 0.002%

  • Deviation

    +/- 75 kHz max. (Digital Hybrid Mode)

  • Spurious radiation

    Compliant with ETSI EN 300 422-1

  • Equivalent input noise

    -125 dBV, A-weighted

  • Input level

    If set for dynamic mic: 0.5 mV to 50 mV before limiting Greater than 1 V with limiting
    If set for electret lavaliere mic: 1.7 uA to 170 uA before limiting Greater than 5000 uA (5 mA) with limiting
    Line level input: 17 mV to 1.7 V before limiting Greater than 50 V with limiting

  • Input impedance

    Dynamic mic: 300 Ohms
    Electret lavaliere: Input is virtual ground with servo adjusted constant current bias
    Line level: 2.7 k ohms

  • Input limiter

    Soft limiter, 30 dB range

  • Bias voltages

    Fixed 5 V at up to 5 mA
    Selectable 2 V or 4 V servo bias for any electret lavaliere

  • Gain control range

    44 dB; panel mounted membrane switches

  • Modulation indicators

    Dual bicolor LEDs indicate modulation
    -20, -10, 0, +10 dB referenced to full modulation

  • Controls

    Control panel w/ LCD and 4 membrane switches

  • Low frequency roll-off

    Adjustable from 35 to 150 Hz

  • Audio Frequency Response

    35 Hz to 20 kHz, +/-1 dB

  • Signal to Noise Ratio

    Off: 103.5 dB (no limiting); 108.0 dB (with limiting)
    Normal: 107.0 dB (no limiting); 111.5 dB (with limiting)
    Full: 108.5 dB (no limiting); 113.0 dB (with limiting)

  • Total Harmonic Distortion

    0.2% typical (400 Series mode)

  • Audio Input Jack

    Switchcraft 5-pin locking (TA5F)

  • Antenna

    Flexible, unbreakable steel cable.

  • Battery

    AA lithium, disposable

  • Battery Life with Lithium AA

    50 mW (2 x AA): 14.5 hours
    100 mW (2 x AA): 14 hours

  • Emission Designator

    180KF3E

Recorder

Jump to...
  • Storage media

    microSDHC memory card

  • File format

    .wav files (BWF)

  • A/D converter

    24-bit

  • Sampling rate

    44.1 kHz

  • Recording modes/Bit rate

    HD mono mode:
    24 bit - 144 kbytes/s
    32 bit - 192 kbytes/s

    Split gain mode:
    24 bit - 288 kbytes/s
    32 bit - 384 kbytes/s

  • Input Type

    Analog mic/line level compatible; servo bias preamp for 2V and 4V lavaliere microphones

  • Input level

    Dynamic mic: 0.5 mV to 50 mV
    Electret mic: Nominal 2 mV to 300 mV
    Line level: 17 mV to 1.7 V

  • Input connector

    TA5M 5-pin male

  • Audio Performance

    Frequency response: 20 Hz to 20 kHz; +0.5/-1.5 dB
    Dynamic range: 110 dB (A), before limiting
    Distortion: < 0.035%

  • Operating temperature range

    -20 to 50 deg. C (-4 to 122 deg. F)

General

Jump to...
  • Dimensions

    2.37 x 2.48 x 0.64" (6.02 x 6.30 x 1.63cm) (without microphone)

  • Weight

    4.0 oz (113.40g) (with lithium batteries)

About Lectrosonics SMDWB

With the SMDWB Wireless Miniature Wideband Beltpack Microphone Transmitter and Recorder, you can enjoy an extended operating range and battery life, thanks to its selectable output power of 25, 50, and 100 mW. This feature allows you to optimize the balance between range and battery life according to your specific needs.

This advanced microphone transmitter and recorder offers a hands-free setup and adjustment process using audible tones. It also features a sleep mode to conserve battery power during setup, especially when concealed inside costumes, and can be easily awakened for normal operation when your production begins.

The SMDWB transmitter boasts an input gain adjustment in 1 dB increments over a 44 dB range, and an adjustable low-frequency audio roll-off for 3 dB down points at 35, 50, 70, 100, 120, or 150 Hz. This allows you to control subsonic and very low-frequency audio content effectively.

Designed with DSP-based technology, this device is compatible with all Digital Hybrid receivers and can also work with Lectrosonics 200 and 100 Series, IFB receivers, and some analog receivers from other manufacturers. Its input section features the unique Lectrosonics servo bias input circuitry with a standard TA5M type jack, making it suitable for use with electret lavaliere mics, dynamic mics, or line-level signals.

The SMDWB transmitter also includes a DSP-controlled analog audio limiter, which protects the entire audio chain from overload. It offers a range of more than 30 dB for superior overload protection and a dual release envelope for acoustically transparent operation while maintaining low distortion of brief transients and longer duration peaks.

The device features a water-resistant control panel with an LCD, membrane switches, and multi-color LEDs for quick and accurate input gain adjustments, frequency, and compatibility mode selection. It is powered by lithium AA batteries and housed in a lightweight, rugged package machined from solid aluminum blocks. The special non-corrosive finish makes it resistant to saltwater exposure and perspiration, making it ideal for use in extreme environments.

In addition to its transmitting capabilities, the SMDWB transmitter can also function as a standalone recorder, producing industry-standard .wav (BWF) files compatible with virtually any audio or video editing software.

For RF-intense multichannel and mobile venues, the device offers a broad selection of 3072 frequencies selectable in 25 or 100 kHz steps across the wide tuning range of each frequency band. This ensures optimal performance even in the face of potential interference problems, such as those posed by DTV telecasts.

In summary, the SMDWB Wireless Miniature Wideband Beltpack Microphone Transmitter and Recorder offers a comprehensive solution for high-quality audio recording and transmission, with a host of features designed to enhance performance, versatility, and ease of use.

Lectrosonics SMDWB Features

  • Selectable output power to maximize battery life or operating range
  • Ultra-lightweight, corrosion resistant housing
  • Water resistant seals for use in damp environments
  • LCD interface with lockout option
  • Programmable compatibility modes for use with a wide variety of different receivers
  • Servo Bias input circuitry
  • IR (infrared) port for fast setup
  • Covers 3 standard frequency blocks
  • Update firmware in the field via Micro SD card reader
  • Alternate use as recorder on internal microSDHC memory card

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Capture pristine audio with this Lectrosonics wireless microphone transmitter; exceptional sound quality.
  • Enjoy extended use with a 14.5-hour battery life, perfect for long recording sessions and broadcast events.
  • Achieve professional results with the wideband beltpack transmitter, ideal for broadcast and ENG applications.
  • Ensure reliable audio transmission with selectable RF power output; switch between 25, 50, or 100 mW.
  • Record directly to microSDHC with the built-in recorder, offering 24-bit audio in .wav format.
  • Experience low latency and clear sound using Digital Hybrid Wireless compatibility modes for seamless audio.

What's in the box:

  • Lectrosonics SMDWB Wireless Miniature Wideband Beltpack Microphone Transmitter and Recorder
  • Antenna
  • Pouch
  • Spring Loaded Belt Clip
  • Connector Kit
  • Lectrosonics 1 Year Limited Warranty
