29% Off

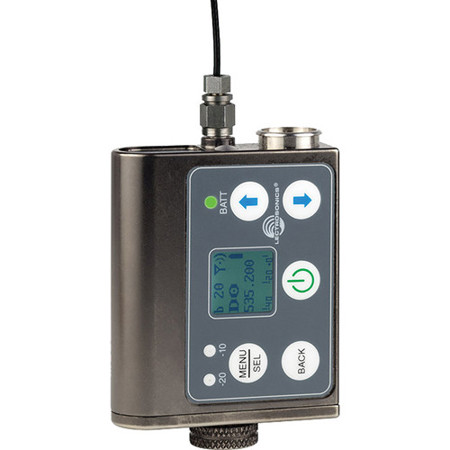

Lectrosonics SMWB Single Battery Wideband Beltpack Transmitter, A1: 470.100 to 537.575MHz

SKU: LESMWBA1 MFR: SMWB-A1
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Lectrosonics wireless transmitter, ideal for film.
  • Achieve reliable, wideband wireless with selectable 25/100kHz channel spacing options.
  • Enjoy extended battery life with AA lithiums, ensuring your wireless mic lasts through shoots.
  • This beltpack transmitter offers exceptional sound quality with low total harmonic distortion.
  • Rugged build for field use, this wireless transmitter features a flexible steel cable antenna.
  • Switchable RF power output (25/50/100mW) lets you optimize range & battery for every scene.
See More Product Details

Product Options

FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lectrosonics SMWB Specifications

Transmitter

Transmitter

Jump to...
  • Operating Frequencies

    A1: 470.100 to 537.575MHz

  • Channel Spacing

    Selectable between 25 or 100kHz

  • RF Power Output

    Switchable 25, 50 and 100mW

  • Compatibility Modes

    Digital Hybrid Wireless (NU Hbr), 200 Series, 100 Series, Mode 3, Mode 6, IFB

  • Pilot Tone

    25 to 32kHz; 5kHz deviation (digital hybrid mode)

  • Frequency Stability

    +/-0.002%

  • Deviation

    +/- 75kHz maximum (digital hybrid mode)

  • Spurious Radiation

    Compliant with ETSI EN 300 422-1

  • Equivalent Input Noise

    -125dBV, A-weighted

  • Input Level

    If set for dynamic mic: 0.5 to 50mV before limiting, greater than 1 V with limiting
    If set for a lavalier mic: 1.7 to 170MuA before limiting; greater than 5000MuA (5mA) with limiting
    If set for line-level input: 17 mV to 1.7 V before limiting; greater than 50V with limiting

  • Input Impedance

    Dynamic mic: 300Ohms
    Lavalier: Input is virtual ground with servo adjusted constant current bias
    Line level: 2.7kOhms

  • Input Limiter

    Soft limiter, 30dB range

  • Bias Voltage

    Fixed 5V at up to 5mA; Selectable 2V or 4V servo bias for any electret lavaliere

  • Gain Control Range

    44dB; panel mounted membrane switches

  • Modulation Indicators

    Dual bicolor LEDs indicate modulation; -20, -10, 0, +10dB referenced to full modulation

  • Controls

    Control panel with LCD and 4 membrane switches

  • Low Frequency Roll-Off

    Adjustable from 35 to 150Hz

  • Audio Frequency Response

    35Hz to 20kHz, +/- 1dB

  • Signal to Noise Ratio

    Off: 103.5dB (no limiting); 108.0dB (with limiting)
    Normal: 107.0dB (no limiting); 111.5dB (with limiting)
    Full: 108.5dB (no limiting); 113.0dB (with limiting)

  • Total Harmonic Distortion

    0.2% typical (400 Series mode)

  • Audio Input Jack

    Switchcraft 5-pin locking (TA5F)

  • Antenna

    Flexible, unbreakable steel cable

  • Battery

    AA lithium, disposable

  • Battery Life with Lithium AA

    50mW (1x AA): 4.4 hours
    100mW (1x AA): 4.4 hours

  • Emission Designator

    180KF3E

Recorder

Jump to...
  • Storage Media

    microSDHC memory card

  • File Format

    .wav files (BWF)

  • A/D Converter

    24-bit

  • Sampling Rate

    44.1 kHz

  • Recording modes/Bit rate

    HD mono mode:
    24-bit: 144 kbps
    32-bit: 192 kbps

    Split gain mode:
    24-bit: 288 kbps
    32-bit: 384 kbps

  • Input

    Input Type: Analog mic/line level compatible; servo bias preamp for lavalier microphones (2 and 4 V)

    Input Level:
    Dynamic mic: 0.5 to 50 mV
    Electret mic: Nominal, 2 to 300 mV
    Line level: 17mV to 1.7V

    Input Connector: TA5M 5-pin male

  • Audio Performance

    Frequency response: 20Hz to 20kHz; +0.5/-1.5dB
    Dynamic range: 110dB (A-weighted), before limiting
    Distortion: < 0.035%

  • Operating Temperature Range

    -5 to 122 deg. F (-21 to 50 deg. C)

General

Jump to...
  • Dimensions

    Without Microphone: 2.366 x 1.954 x 0.642" (60.10 x 49.63 x 16.31mm)

  • Weight

    With Lithium Batteries: 3.2 oz (90.72g)

About Lectrosonics SMWB

Why choose the Lectrosonics SMWB Single Battery Wideband Beltpack Transmitter This advanced and reliable piece of audio equipment is designed to cater to professionals in the film, television, theater, and live event industries who demand both exceptional operating range and extended battery life. The SMWB series stands out with its selectable output power of 25, 50, and 100 mW, allowing users to optimize the balance between range and battery longevity to suit their specific needs.

Crafted for durability, the transmitter's housing is machined from solid aluminum blocks, ensuring a lightweight yet rugged package that can withstand the rigors of on-location work. Its special non-corrosive finish is built to resist the challenges of saltwater exposure and perspiration, making it suitable for use in even the most extreme environments.

The innovative DSP-based design of the SMWB transmitter ensures compatibility with all Digital Hybrid receivers, as well as backward compatibility with Lectrosonics 200 and 100 Series, IFB receivers, and some analog receivers from other manufacturers. This versatility is further enhanced by the wide frequency tuning range, offering 3072 selectable frequencies in 25 or 100 kHz steps, which is essential for navigating the crowded RF spectrum in today's RF-intense, multichannel venues.

For precise audio control, the transmitter features input gain adjustment in 1 dB increments over a 44 dB range and an adjustable low-frequency audio roll-off with multiple settings to manage subsonic and very low-frequency content. The unique Lectrosonics servo bias input circuitry, along with a standard TA5M type jack, accommodates a variety of input sources, from electret lavaliere mics to dynamic mics or line-level signals.

The high-quality audio limiter, with more than 30 dB of range, employs a dual-release envelope to maintain acoustic transparency and low distortion, safeguarding the audio chain from overload. Hands-free setup and adjustment are made simple with audible tones, and the transmitter can be put into a sleep mode to conserve battery power during setup, then easily awakened for operation.

Ease of use is further emphasized by the water-resistant control panel, which features an LCD, membrane switches, and multi-color LEDs for quick and accurate input gain adjustments, frequency selection, and compatibility mode settings. The battery compartment is designed to accept lithium AA batteries, offering a practical solution for power management.

In addition to its primary function as a transmitter, the SMWB offers an alternate recording function, allowing it to be used as a standalone recorder. The industry-standard .wav (BWF) file format ensures compatibility with virtually any audio or video editing software, adding another layer of versatility to this high-quality device.

With its combination of innovative features, reliable performance, and Lectrosonics' reputation for producing top-tier audio equipment, the SMWB Single Battery Wideband Beltpack Transmitter is a superior choice for professionals seeking to elevate their audio transmission capabilities.

Lectrosonics SMWB Features

  • Selectable output power to maximize battery life or operating range
  • Ultra-lightweight, corrosion resistant housing
  • Water resistant seals for use in damp environments
  • LCD interface with lockout option
  • Programmable compatibility modes for use with a wide variety of different receivers
  • Servo Bias input circuitry
  • IR (infrared) port for fast setup
  • Covers 3 standard frequency blocks
  • Update firmware in the field via Micro SD card reader
  • Alternate use as recorder on internal microSDHC memory card

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Capture pristine audio with this Lectrosonics wireless transmitter, ideal for film.
  • Achieve reliable, wideband wireless with selectable 25/100kHz channel spacing options.
  • Enjoy extended battery life with AA lithiums, ensuring your wireless mic lasts through shoots.
  • This beltpack transmitter offers exceptional sound quality with low total harmonic distortion.
  • Rugged build for field use, this wireless transmitter features a flexible steel cable antenna.
  • Switchable RF power output (25/50/100mW) lets you optimize range & battery for every scene.

What's in the box:

  • Lectrosonics SMWB Single Battery Wideband Beltpack Transmitter
  • Lectrosonics 1 Year Limited Warranty
