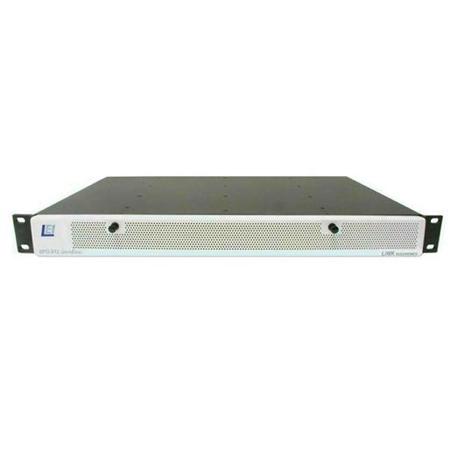

Link Electronics SPG-812 Master Generator Chassis - for 812 Series Modules

Become the master of precision in signal generation with the Link Electronics SPG-812 Master Generator Chassis, a cornerstone for professional-grade audio and video setups. This SDI master sync generator is the epitome of reliability and flexibility, designed to accommodate the diverse needs of broadcast, production, and post-production environments.

The SPG-812 chassis is engineered to house a variety of 812 Series Modules, each tailored to deliver specific signal outputs. It includes a robust power supply and six module cells, with one cell exclusively dedicated to dual analog/digital audio reference tone generation. The chassis's modular construction not only ensures seamless compatibility with 812 Series Modules but also offers an easy upgrade path from analog to digital formats.

This durable 1RU chassis is equipped with an array of modules, including the SDI genlock 812-OP/D, SDI black burst 812-OP/B, SDI pattern generator 812-OP/F, and AES + analog tone 812-OP/E. Additional modules available cater to a wide range of signal generation needs:

- 812-OP/A: Analog Black Burst Master Timebase Generator
- 812-OP/C: Black Master Timebase Generator with Gen-Lock
- 812-OP/G: Analog Test Signal Generator with 16 Signals
- 812-OP/H: Sync, SC & Blanking Generator
- 812-OP/I: Optional 0.5 Master Oscillator
- 812-OP/J: Source ID, XDS Monitor and CC Decoder
- 812-OP/K: HD, VD & SC Generator
- 812-OP/L: Sync, SC and Burst Flag Generator
- 812-OP/M: Digital Tone Generator

The SPG-812's test generator module, available in both SDI and analog, supports a comprehensive range of patterns such as 100% and 75% Color Bars, SMPTE and EBU Color Bars, various modulated and unmodulated test signals, and more, ensuring that you have the right tools for calibration and testing.

Each module boasts three independent outputs with infinite timing adjustments, accessible from the front of the unit for ease of installation and maintenance. The SPG-812's design allows for a gen-lock module to be added, providing a synchronized timebase for all chassis modules, or an output module can be used as the master timebase if gen-lock is not required.

The SPG-812 is not just sturdy and high-quality; it's a testament to Link Electronics' commitment to providing professional solutions that are both reliable and versatile. Whether starting with an all-analog setup or transitioning to a fully digital system, the SPG-812 Master Generator Chassis stands as a robust foundation for any professional signal generation requirement.
