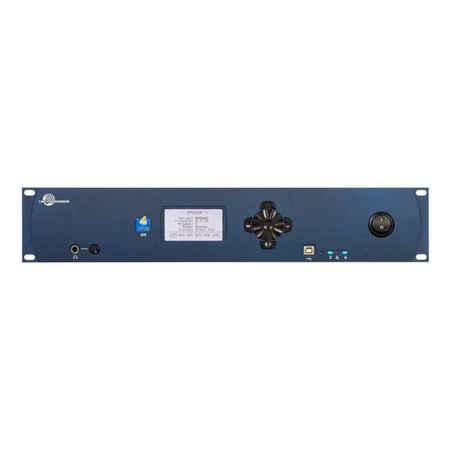

Lectrosonics SPN1624 2 RU Digital Matrix Audio Processor
See all Lectrosonics items

Lectrosonics SPN1624 2 RU Digital Matrix Audio Processor, 16 Inputs, 24 Outputs, 20Hz-21kHz Frequency Response, <50Ohms Output Impedance

SKU: LESPN1624
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Lectrosonics SPN1624 Specifications

  • Inputs

    16 Mic/Line

  • Max. input level

    20 dBu

  • Gain

    0 dB to 56 dB, programmable in 8 dB steps (the analog gain is automatically selected by selecting the input gain)

  • Input impedance

    8 KOhms differential mode, 2 KOhms common mode

  • Phantom voltage

    48 V

  • Input dynamic range

    102 dB

  • EIN

    -127 dBu (20Hz - 20kHz, unweighted)

  • THD

    + noise: 0.01%

  • Outputs

    1-8 line level, 9-12 mic/line level, 13-19 line level, 20-24 mic/line level

  • Nominal level

    1-8 line level (0dBu), 9-12 mic/line level(0, -20, -40 dBu), 13-19 line level (0 dBu), 20-24 mic/line level (0, -20, -40dBu)

  • Headroom

    20 dB

  • Output impedance

    < 50 Ohms , all outputs, at all attenuator settings

  • Output dynamic range

    105 dB

  • THD + noise

    0.01%

  • Frequency response

    20 Hz - 21 kHz +/- 1 dB

  • Latency

    Single-board: 64 audio samples = 1.333 ms
    System: 64 + 6 (total number or boards - 1) audio samples = 1.333 + 0.125 (total number or boards - 1) ms

  • Monitor output (1/4" headphone jack)

    Signal: any of the 48 final mixes
    Output power: 50 mW (<50 Ohms impedance recommended)

  • Noise reduction filters

    Adjustable 6 to 35 dB on every input

  • Tone control stages

    4 per input channel

  • Parametric EQ stages

    8 per output channel

  • ADFE

    8 per input channel Configurable as Static or Dynamic

  • Low Pass

    Butterworth (6, 12, 18, 24 dB/octave)
    Bessel (6, 12, 18, 24 dB/octave)
    Linkwitz-Riley (12, 24 dB/octave)
    Additional parameters: frequency [Hz]

  • High Pass

    Butterworth (6, 12, 18, 24 dB/octave)
    Bessel (6, 12, 18, 24 dB/octave)
    Linkwitz-Riley (12, 24 dB/octave)
    Additional parameters: frequency [Hz]

  • Low Shelving

    Butterworth (6, 12, 18, 24 dB/octave)
    Bessel (6, 12, 18, 24 dB/octave)
    Additional parameters:
    frequency [Hz]
    boost/cut [dB]

  • High Shelving

    Butterworth (6, 12, 18, 24 dB/octave)
    Bessel (6, 12, 18, 24 dB/octave)
    Additional parameters:
    frequency [Hz]
    boost/cut [dB]

  • Peaking EQ (parametric)

    Parameters:
    frequency [Hz]
    bandwidth [octave]
    boost/cut [dB]

  • Internal Signal Generator

    Swept sine:
    Modes: single sweep, continuous sweep
    Waveforms: sawtooth (up or down), triangle
    Sweep rate: linear, logarithmic
    Parameters: start freq, stop freq, level [dBu], sweep time [sec]
    White noise: Parameter: level [dBu]
    Pink noise: Parameter: level [dBu]
    Tone (sine wave): Parameters: level [dBu], frequency

  • Power Requirements

    100-240 VAC, 50/60 Hz

  • Power Consumption

    40 Watts

  • Rack Height

    2 Ru

  • Dimensions

    3.5 x 19 x 7.7" / 88.9 x 482.6 x 195.58mm

  • Weight

    5.73lbs / 2.6kg

About Lectrosonics SPN1624

The Lectrosonics SPN1624 2 RU Digital Matrix Audio Processor offers unlimited input expansion and 48 mix buses give you phenomenal scalability. The Proportional Gain Algorithm provides seamless auto-mixing and integrates easily with echo cancellation, analog mixing consoles or any other type of audio system. And with TCP/IP addressability for control through Ethernet, ASPEN is now part of your network.

Lectrosonics SPN1624 Features

  • Ultra low noise input preamps
  • Full crosspoint matrix with 48 outputs
  • Unlimited input expansion
  • TCP/IP Ethernet addressable
  • Seamless auto-mixing with PGA at the matrix crosspoints
  • Simultaneous multi-point 3rd party and native control
  • Ultra-low latency
  • Automatic Master/Slave detection
  • Single CAT6 interconnection carries data, audio and control signals

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ultra low noise input preamps
  • Full crosspoint matrix with 48 outputs
  • Unlimited input expansion
  • TCP/IP Ethernet addressable
  • Seamless auto-mixing
  • Simultaneous multi-point 3rd party and native control

What's in the box:

  • Lectrosonics SPN1624 2 RU Digital Matrix Audio Processor
  • Power Cord
  • 2x Cord Plug
  • 20x 5-Position Plug
  • USB Cable
  • 2x Patch Cable
  • Adjustment Tool
  • Software CD
  • Manual
  • Lectrosonics 1 Year Parts and Labor Warranty
