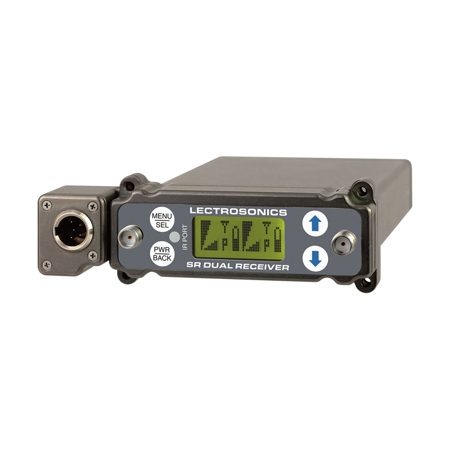

Lectrosonics SRc5P Dual-Channel Slot-Mount ENG Receiver, A1: 470.1-537.5MHz

SKU: LESRC5PA1 MFR: SRC5P-A1
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this Lectrosonics wireless receiver system.
  • Dual-channel receiver excels in ENG applications, ensuring reliable audio capture.
  • Achieve pristine sound with low latency, ideal for live broadcasts and film sets.
  • Wideband receiver (470.1-537.5MHz) minimizes interference for cleaner recordings.
  • SmartDiversity antenna combining maximizes signal strength for uninterrupted audio.
  • Compact slot-mount design integrates seamlessly with professional camera setups.
See More Product Details
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lectrosonics SRc5P Specifications

  • Operating Frequencies

    A1: 470.100 to 537.575MHz

  • Frequency Selection Steps

    Selectable; 100 or 25 kHz

  • Type of Receiver

    Dual conversion, superheterodyne

  • IF Frequency

    Ch.1: 248.450MHz and 350.000 kHz
    Ch.2: 243.950MHz and 250.000 kHz

  • Frequency Stability

    +/-0.001 %

  • Front End Bandwidth

    20MHz @ -3 dB

  • Sensitivity

    20 dB SINAD: 1.0 uV (-107 dBm), A-weighted
    60 dB Quieting: 2.2 uV (-100 dBm), A-weighted

  • Squelch Quieting

    Greater than 100 dB typical

  • AM Rejection

    Greater than 60 dB, 4 uV to 1 V

  • Modulation Acceptance

    85 kHz

  • Image and Spurious Rejection

    85 dB

  • Third Order Intercept

    0 dBm

  • Diversity Method

    SmartDiversity phased antenna combining or Ratio Diversity using both receivers for a single audio channel

  • FM Detector

    Digital Pulse Counting Detector operating at 250 and 350 kHz

  • RF Spectrum Analyzer

    Coarse and fine scanning modes for RF spectrum site survey

  • Antenna Inputs

    50 Ohms SMA female connectors

  • Audio Output Connectors

    Interchangeable D-connector adapters for camera-slot interfaces
    Dual TA3 male (mini XLR) balanced output adapter
    Balanced output adapter with fixed cables
    Front-panel TA5M with two balanced outputs (5P version)

  • Audio Output Level

    Adjustable -50 to +5 dBu in 1 dB steps; unbalanced output is 6 dB lower

  • Audio Channel Crosstalk

    -80 dB or better

  • Front Panel Controls and Indicators

    Sealed panel with membrane switches
    LCD monitors pilot tone; antenna phase, receiver battery level; transmitter battery status; audio level, RF level

  • Audio Test Tone

    1 kHz, -50 dBu to +5 dBu output (bal); 1% THD

  • Transmitter Battery Type Selection

    9 V alkaline, 9 V lithium, AA alkaline, AA lithium, NiMH

  • Phase Invert

    Audio output phase normal or inverted

  • Compatibility Modes

    HYB native Digital Hybrid mode
    M.3 non-Lectrosonics (call factory)
    200 Lectrosonics 200 Series
    100 Lectrosonics 100 Series
    HYB/TB Digital Hybrid w/ Talkback
    M.7 non-Lectrosonics (call factory)
    M.6 non-Lectrosonics (call factory)

  • Compatibility Modes

    HYB native Digital Hybrid mode
    M.3 non-Lectrosonics (call factory)
    200 Lectrosonics 200 Series
    100 Lectrosonics 100 Series
    HYB/TB Digital Hybrid w/ Talkback
    M.7 non-Lectrosonics (call factory)
    M.6 non-Lectrosonics (call factory)

  • SmartNR (Noise Reduction)

    Off, Normal, Full modes (available in Digital Hybrid mode only)

  • Audio Performance (overall system)

    Frequency Response: 32 Hz to 20 kHz (+/- 1 dB)
    THD: 0.15% (system) typical in Digital Hybrid mode

  • Input Dynamic Range

    125 dB (with full Tx limiting)

  • Rear Panel Controls

    Audio output connectors
    External DC input

  • Powering and Current Consumption

    Min. 7 V to max. 18 VDC; 2.2 W
    125 mA at 18 VDC
    180 mA at 12 VDC
    295 mA at 7 VDC

  • Runtime with SRBATTSLED Adapter

    7.2 V, 2200 mAh "L" style battery will typically provide about 11 hours of operation

  • Transmitter Battery

    Level Tracking: LCD display with battery icon or timer readout

  • Operating Temperature

    -4 to 122 Degree F (-20 to +50 Degree C)

  • Dimensions

    2.68 x 0.72 x 3.52" (68 x 18 x 89mm)

  • Weight

    7 oz (195g)

About Lectrosonics SRc5P

Over the years, Lectrosonics has earned a reputation for delivering high-quality, reliable, and innovative audio equipment. The SRc5P Dual-Channel Slot-Mount ENG Receiver, A1: 470.1-537.5MHz, is no exception. This advanced device is designed with two separate receivers, each housed within a single, ultra-compact unit. It's compatible with video camera receiver slots and can also be used as a standalone device.

The SRc5P employs Digital Hybrid Wireless technology, ensuring superb, compandor-free audio quality and compatibility with other wireless systems. Its RF performance remains stable over a wide temperature range, making it an ideal choice for field production where environmental conditions can be challenging.

This receiver is designed with DSP compatibility modes, allowing it to work seamlessly with various Lectrosonics systems, other brands of wireless systems, and Lectrosonics IFB transmitters. The front panel features a user-friendly, menu-driven LCD interface, and four membrane switches for viewing and altering settings.

The SRc5P offers a wide frequency range of 470.1-537.5 MHz, providing greater versatility and compatibility with different types of equipment. It also includes a built-in spectrum analyzer that scans across the tuning range of the receiver, displaying a histogram of RF activity across the band. This feature makes it easy to identify areas with little or no RF activity.

The two internal receivers can be operated separately or in tandem with ratio diversity reception. The audio outputs of the receivers can be mixed internally or left separated for discrete recording tracks or external mixing. The SRc5P model provides a 5-pin connector next to the control panel with audio output from both channels in addition to the camera slot outputs.

The SRc5P Dual-Channel Slot-Mount ENG Receiver is powered from an external 7 to 18 volt DC source. It's designed with a variety of output adapters and mounting options for camera slot operation. This receiver is a testament to Lectrosonics' commitment to delivering durable, high-quality, and reliable audio equipment for the film, television, and music industries.

Lectrosonics SRc5P Features

  • Fits camera "slots," Lectrosonics Duopack adapter and Octopack multicoupler, and operates stand-alone with various adapters
  • Tunes over a 76 MHz range (3 blocks)
  • Dual receiver design for two channels with phase switched diversity or single channel with ratio diversity operation
  • Digital Hybrid Wireless with compatibility modes for use with earlier transmitters
  • Tracking front-end filters for high performance in tough RF environments
  • LCD with RF spectrum scanning
  • SmartSquelch DSP-controlled, noise based filtering and squelch
  • DSP-based pilot tone for squelch control
  • IR sync port for quick transmitter setup
  • SmartTune operation for quick and confident frequency selection

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience superior audio clarity with this Lectrosonics wireless receiver system.
  • Dual-channel receiver excels in ENG applications, ensuring reliable audio capture.
  • Achieve pristine sound with low latency, ideal for live broadcasts and film sets.
  • Wideband receiver (470.1-537.5MHz) minimizes interference for cleaner recordings.
  • SmartDiversity antenna combining maximizes signal strength for uninterrupted audio.
  • Compact slot-mount design integrates seamlessly with professional camera setups.

What's in the box:

  • Lectrosonics SRc5P Dual-Channel Slot-Mount ENG Receiver (A1: 470.1-537.5MHz)
  • Adjustment Tool
  • 2x Antennas
  • Quick Start Guide
  • Lectrosonics 1 Year Limited Warranty
