Levenhuk DTX 500 20-500x Digital Microscope with 3.5" Color LCD Display, Mac & Windows

SKU: LEV61024

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2019-11-07T07:42:22

Rated 5 out of 5

Very impressed with the product and especially Levenhuk's lifetime warranty.

For the price, this microscope takes very nice pictures.

RALPH B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Levenhuk DTX 500 Specifications

  • Head

    3.5" Color LCD display

  • Optics Material

    Glass

  • Magnification

    20-500x

  • Focus

    Manual, 0-150mm

  • Illumination

    8 White LED lights

  • Power Supply

    110V, 50/60 Hz
    5 V, 1 A output or Li-ion, 3.7 V,1050mAh battery
    Work time: 2 hours
    Charging time: 2 hours

  • Megapixels

    5 (Interpolated to 12)

  • Video Recording

    Yes

  • Speed

    30 fps

  • Image Format

    .jpeg

  • Software

    Image processing software with measurement function

  • Camera Slot

    USB 2.0

  • System Requirements

    Windows XP SP2/Vista/7/8/10
    Mac 10.6-10.10
    Minimum P4 1.8 GHz, 512 Mb RAM
    64MB Video Card
    USB 2.0 Port, CD-ROM

  • Usage

    General use product. May be used by kids over 3 years old.

  • Ability to connect additional equipment

    Support of microSD cards with capacity up to 32 Gb (not included in the kit)

  • Software Language

    English, German, French, Spanish, Russian, Italian, Portuguese, Polish, Dutch, Japanese, Korean, Chinese

  • Video Format

    .avi

  • Maximum Resolution

    12 MP, 8 MP, 5 MP, 3 MP, 1.3 MP, VGA

  • Weight

    26.8 oz (760g) (with the battery)

  • Dimensions

    8.9 x 4.1 x 5.9" (22.7 x 10.4 x 14.9mm)

  • UPC Code

    611901508559

About Levenhuk DTX 500

FEATURED REVIEWS

Very impressed with the product and especially Levenhuk's lifetime warranty.

By RALPH B.

For the price, this microscope takes very nice pictures.

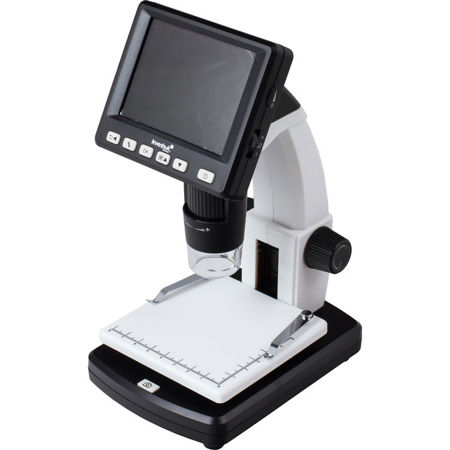

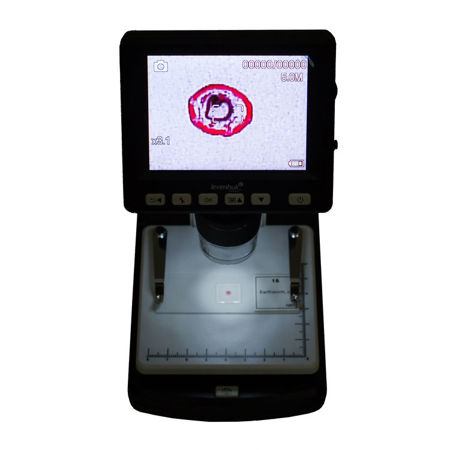

Levenhuk DTX 500 LCD Digital Microscope with built-in 3.5-inch LCD display allows you to study samples under magnification of 20x to 500x and save results of your work in image or video format to a microSD card. 8 built-in LED lights evenly light the working surface and ensure minimal energy consumption. The illumination system also features a brightness adjustment.

The stage of this microscope is equipped with a measuring scale (8 cm along the x - axis, 6 cm along the y-axis) and two clips to secure the sample under the camera.

The high-quality LCD panel provides crystal-clear images and has buttons that allow you to quickly change brightness, exposure and color balance. You can easily connect the Levenhuk DTX 500 LCD to your PC using the USB cable included in the kit and copy all the files created during your observations to your hard drive. This amazing model also features an AV output to transfer observed images to a TV screen or projector in real time.

Levenhuk DTX 500 LCD Digital Microscope is powered by the Li-ion battery included in the kit, which provides for up to 2 hours of standalone work. The microscope may also be powered via the USB port of your PC.

Recommendations on using the software.
In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Levenhuk DTX 500 LCD Digital Microscope is not compatible with external digital cameras.

Levenhuk DTX 500 Features

  • 3.5" Color LCD display
  • Support of microSD cards with capacity up to 32 Gb
  • PC connection via USB 2.0 interface
  • AV output for connecting to TV or projector
  • Able to take photos/videos
  • Automatic exposure and white balance
  • 8 White LEDs with adjustable brightness
  • 4x Digital zoom
  • Li-ion Rechargeable battery
  • Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples
  • Compatible with Windows and Mac OS

Key Features

  • 3.5" Color LCD display
  • Support of microSD cards with capacity up to 32 Gb
  • PC connection via USB 2.0 interface
  • AV output for connecting to TV or projector
  • Able to take photos/videos
  • Automatic exposure and white balance

What's in the box:

  • DTX 500 LCD Digital Microscope (Gray)
  • AC Adapter
  • Rechargeable Li-ion Battery
  • AV Cable
  • USB 2.0 Cable
  • Calibration Ruler
  • Software CD
  • Cleaning Cloth
  • Levenhuk Lifetime Limited Warranty
