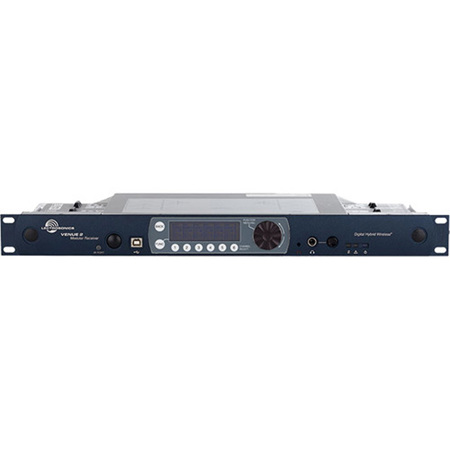

Lectrosonics WD Band Venue 2 6-Channel Modular Receiver, 941 MHz

Take your audio experience to the next level with the WD Band Venue 2 6-Channel Modular Receiver, operating at 941 MHz. This innovative device is a comprehensive solution to the challenges of a crowded RF spectrum, offering a multitude of options for system configuration. It's designed to optimize performance for any installation or application.

The Venue 2 Receiver is a modular system, composed of a master rack mount host assembly, up to six receiver modules, a built-in antenna multicoupler with loop-thru output, and intuitive software for effortless setup and control. The design's core concept is flexibility, allowing the receiver modules to operate either independently or in pairs for enhanced diversity reception. This versatility enables a total of six audio channels when operated separately, or a more robust diversity reception with one audio channel per module pair when operated in pairs.

The receiver modules are user-friendly and can be easily changed without the need for any tools. The wideband multicoupler accommodates any frequency module in any position, except when modules are paired for ratio diversity reception.

One of the standout features of this design is the inclusion of a high-quality antenna multicoupler. This multicoupler functions as a dual 1 in, 7 out splitter, with six outputs for the receiver modules and an additional "loop thru" output for another Venue receiver. This feature enables multiple Venue receivers to operate from a single pair of antennas, enhancing efficiency and performance.

The Venue 2 Receiver also offers phantom power for remote antenna amplifiers, accessible from the multicoupler antenna inputs via menu selection.

The device employs Digital Hybrid Wireless technology, a groundbreaking design that fuses digital audio with an analog FM radio link. This combination delivers exceptional audio quality and noise-free RF performance. A patented algorithm encodes 24-bit digital audio information in the transmitter into an analog format, which is then transmitted over an analog FM wireless link. The receiver decodes the signal to restore the original digital audio, eliminating compandor artifacts and producing an audio frequency response flat to 20 kHz.

In essence, the WD Band Venue 2 6-Channel Modular Receiver, 941 MHz, is a versatile, high-performance solution for any audio setup, offering superior sound quality, flexibility, and user-friendly operation.
