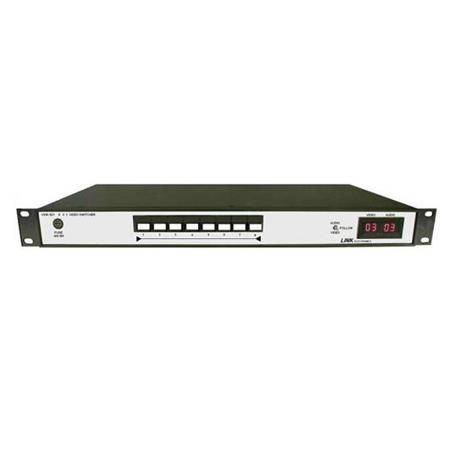

Link Electronics VSW-821 8x1 Vertical Interval Video Switcher with Buttons

SKU: LEVSW821 MFR: VSW-821
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 8 video sources with this reliable video switcher.
  • Enjoy high video quality with +/-0.5dB to 15MHz frequency response output.
  • Easily control via RS-232, RS-422, or RS-485 for versatile compatibility.
  • Maintain signal integrity with low <0.1 differential phase output.
  • Ensure stable broadcast with <0.5% output tilt for professional video.
  • Minimize interference with >60dB crosstalk rejection in worst-case scenarios.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics VSW-821 Specifications

  • Number of Inputs

    8

  • Input Impedance

    75Ohms, Termination Required

  • Input Configuration

    Single-ended

  • Input Level

    1Vpp +/-3dB

  • Number of Outputs

    2

  • Output Destinations

    1

  • Output Level

    Unity Gain

  • Output Impedance

    75Ohms

  • Output Frequency Response

    +/-0.5dB to 15MHz
    -3dB to 30MHz

  • Output Differential Phase

    <0.1

  • Output Differential Gain

    <0.1%

  • Output Tilt

    <0.5%

  • Output Propagation Delay

    16.l ns +/-0.2ns (All Channels)

  • Outputs: Crosstalk

    >60dB, Worst Case

  • Control Port

    RS-232, RS-422 or RS-485

  • Input Power

    120/240VAC +/-10%

  • Power

    7.2W

  • Ambient Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    0 to 90% non-condensing

  • Dimensions (H x W x D)

    1.75 x 19 x 8.7" / 44.45 x 482.60 x 220.98mm

  • Weight

    6.5lbs / 2.95kg

About Link Electronics VSW-821

With its wide bandwidth and vertical interval design, the VSW-821 is a high-performance video switcher engineered for composite video inputs. This device boasts eight high impedance looping inputs and dual outputs, offering users the ability to route or delegate multiple video signals in an efficient and cost-effective manner.

Housed in a 19" rack-mountable cabinet, the VSW-821 is equipped with eight composite inputs, ensuring a broad range of connectivity options. The user-friendly interface features high-quality push buttons and an LED digital readout for seamless audio and video channel selection, making it an optimal solution for various video switching needs.

The VSW-821 offers front panel controlled audio and video breakaway, providing users with enhanced control and flexibility. Serial control is facilitated through a DSub connector, while remote control is enabled through an RJ-11 connector. The switcher supports RS-232, RS-422, and RS-485 serial control characteristics, offering diverse control options.

Switching is achieved during the vertical interval using the vertical sync derived from the video at the output stage of the VSW-821 video switcher. This device is a video-only switcher, featuring LED digital readouts for both the selected audio and video.

When paired with the PAF-823 audio follow unit, the VSW-821 selects the video and its corresponding audio, enhancing the overall audio-visual experience. A three-position front panel switch allows users to select audio follow, audio breakaway, and video breakaway, providing further customization options.

The rear panel houses two outputs of the selected video, while the audio follow may be a unit with or without pushbuttons. The VSW-821 Vertical Interval Video Switcher with Buttons is a comprehensive solution for all your video switching needs.

Link Electronics VSW-821 Features

  • 8 Source Inputs
  • 1 Destination Outputs
  • Serial Controlled
  • Vertical Interval
  • Wide Bandwidth
  • Digital Switching
  • One Rack Unit Cabinet
  • Audio Follow Companion
  • Audio & Video Break-away
  • 7 Seg LED Reads Source

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Seamlessly switch between 8 video sources with this reliable video switcher.
  • Enjoy high video quality with +/-0.5dB to 15MHz frequency response output.
  • Easily control via RS-232, RS-422, or RS-485 for versatile compatibility.
  • Maintain signal integrity with low <0.1 differential phase output.
  • Ensure stable broadcast with <0.5% output tilt for professional video.
  • Minimize interference with >60dB crosstalk rejection in worst-case scenarios.

What's in the box:

  • Link ELectronics VSW-821 8x1 Vertical Interval Video Switcher with Buttons
  • Power Cord
  • Link Electronics 10 Year Limited Warranty
