Link Electronics VSW-822 8x2 Vertical Interval Video Switcher with Buttons

While catering to the needs of video professionals, the VSW-822 stands out as an advanced wide bandwidth vertical interval switcher, boasting eight high impedance looping inputs, each capable of being looped to two distinct destinations. This sophisticated device is engineered to function either as a unified 8x2 switcher or as two independent 8x1 switchers, providing versatility for various production requirements.

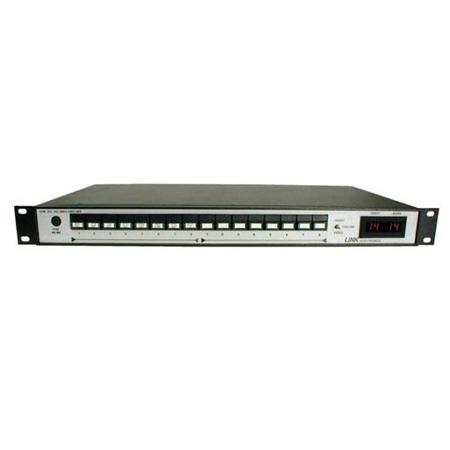

Encased in a sleek 19" rack-mountable cabinet, the VSW-822 is equipped with high-quality push buttons for seamless operation and an LED digital readout, ensuring clear visibility of both audio and video channels. This user-friendly interface allows for quick identification and selection of inputs, enhancing the efficiency of any video setup.

The switcher's audio breakaway feature can be conveniently selected from the front panel, offering the flexibility to separate audio from video signals when needed. Additionally, the VSW-822 provides robust serial control capabilities through a D-Sub connector, complemented by remote control access via an RJ-11 connector. The integration of RS-232, RS-422, and RS-485 serial control characteristics ensures that the switcher can easily adapt to a wide range of equipment and systems.

Switching is executed with precision during the vertical interval, utilizing the vertical sync derived from the video at the output stage, which guarantees a seamless transition between video sources without disruption. Although the VSW-822 is primarily a video-only switcher, it features dual sets of LED digital readouts for both audio and video, indicating the currently selected input.

When used in conjunction with the PAF-821 audio follow unit, the VSW-822 not only selects the video but also its companion audio, maintaining synchronization between audiovisual content. A three-position front panel switch provides users with the option to select audio follow, audio breakaway, or video breakaway, offering additional control over the signal flow.

The rear panel houses the output for the selected video, ensuring a high-quality, reliable connection to the desired display or recording device. The VSW-822 Vertical Interval Video Switcher with Buttons is a testament to Link Electronics' commitment to producing high-quality, reliable equipment that meets the sophisticated needs of video professionals seeking a user-friendly solution for managing multiple video sources.
