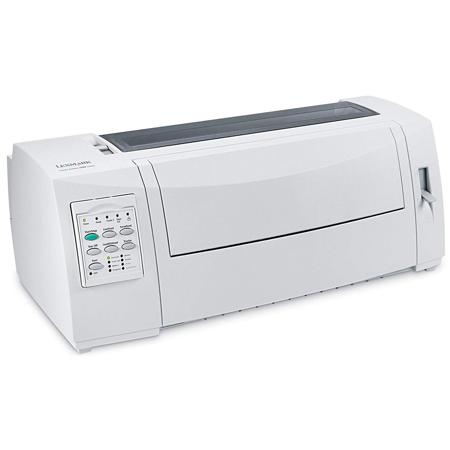

Lexmark 2590n+ 24-Pin Dot Matrix Forms Network Printer with Narrow Sheet Fed Paper

SKU: LEX11C0118

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Lexmark 2590n+ Specifications

General

General

Jump to...
  • Print Technology

    24-Pin Dot Matrix

  • Media Sizes Supported

    Single-part or multi-part continuous forms (10 in. or 254 mm maximum page width, 3.0 in. or 76 mm minimum page width, 22.0 in. or 559 mm maximum page length, 3.0 in. or 76 mm minimum page length), Narrow sheet fed paper (8.5 in. or 215 mm maximum page width, 4.13 in. or 105 mm minimum page width, 22.0 in. or 559 mm maximum page length, 5.5 in. or 139 mm minimum page length)

  • Media Sizes Supported

    Single-part or multi-part continuous forms (10 in. or 254 mm maximum page width, 3.0 in. or 76 mm minimum page width, 22.0 in. or 559 mm maximum page length, 3.0 in. or 76 mm minimum page length), Narrow sheet fed paper (8.5 in. or 215 mm maximum page width, 4.13 in. or 105 mm minimum page width, 22.0 in. or 559 mm maximum page length, 5.5 in. or 139 mm minimum page length)

  • Standard Ports

    USB, Ethernet 10/100BaseTX (RJ-45)

  • Dimensions (H x W x D)

    7.7 x 19.4 x 11.4" (19.55 x 49.27 x 28.95cm)

  • Weight

    17.6 lb (7.98kg)

  • Resolution

    360 x 360 dots per inch

  • Maximum Print Line

    8.0"

  • Mean Time Between Failures

    MTBF:
    12,500 POH @ 25% duty cycle

Paper Handling

Jump to...
  • Media Types Supported

    Multi-part forms - Up to 1+5 parts (up to 0.020 in. or 0.51 mm paper thickness), Single-part forms - 16 to 24 lb., 60 to 90 gsm (0.0045 in. or 0.11 mm paper thickness), Forms or Paper - 16 to 24 lb., 60 to 90 gsm (0.0045 in. or 0.11 mm maximum paper thickness)

  • Paper Handling Standard

    Front Tractor Feeder

  • Paper Handling Optional

    Tractor 2 (narrow), Automatic Sheet Feeder (narrow)

Cartridges & Imaging

Jump to...
  • Supplies Yield

    Optional 8 million characters (draft mode at 10 cpi)- Re-Inking Ribbon, Standard 4 million characters (draft mode at 10 cpi) - Re-Inking Ribbon

Hardware

Jump to...
  • Memory

    512 KB

  • Printer Languages

    Standard:
    Personal Printer Data Stream (PPDS), Epson Emulation

  • Text Fonts

    Proportional Spaced (PS), Fast Draft, Draft, Courier, Gothic, Orator, Presentor, Prestige, Script, 10, 12, 15, 17.1, 20, 24 cpi

  • Bar Codes

    UPC-E, Code 3 of 9, EAN-13, Codabar (NW-7), Industrial 2 of 5, Interleaved 2 of 5, US Postal (POSTNET 5-digit ZIP Code), Code 128, UPC-A, EAN-8

Connectivity

Jump to...
  • Ethernet Network

    Yes

  • Network Protocol Support

    TCP/IP IPv6, IPX/SPX, TCP/IP IPv4

  • Network Printing Methods

    LPR/LPD, Direct IP (Port 9100), IPP (Internet Printing Protocol), NDS Queue-based Printing, FTP, TFTP, Enhanced IP (Port 9400)

  • TCP/IP Set of Application Services

    NTP: Network Time Protocol, ping, finger, telnet, DDNS, mDNS, Zero configuration

  • Network Management Protocols

    DHCP, APIPA (AutoIP), IGMP, SLPv1, WINS, SNMPv3, SNMPv1, SNMPv2c, HTTPs (SSL /TLS), ICMP, HTTP, DNS

  • Network Security

    IPSec, SNMPv3, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS

  • Optional Network Ports

    External MarkNet N7020e Gigabit Ethernet

Supported Operating Systems

Jump to...
  • Microsoft Windows Operating Systems

    Windows 2000, Windows 7 x64, Windows Vista, Windows XP x64, Windows Server 2003 x64, Windows Server 2003, Windows XP, Windows 7, Windows Vista x64

  • Linux Operating Systems Supported

    SUSE Linux Enterprise Server 8.0, 9.0, 10, 11, Red Hat Enterprise Linux WS 3.0, 4.0, 5.0, Linspire Linux 5.0, Debian GNU/Linux 3.1, 4.0, SUSE Linux 10.0, 10.1, 10.2

  • Novell Operating Systems

    Novell Open Enterprise Server on SUSE Linux Enterprise Server, Novell NetWare 5.1(SP 6+), 6.0(SP 3+) with Novell Distributed Print Services (NDPS), Novell NetWare 6.5 Open Enterprise Server

  • UNIX Operating Systems

    IBM AIX 5.1, 5.2, 5.3, Sun Solaris SPARC 8, 9, 10, Sun Solaris x86 10, HP-UX 11.11

Electrical & Operation

Jump to...
  • ENERGY STAR

    No

  • Noise Level

    Operating:
    15 dBA (Idle)
    55 dBA (Print)

  • Average Power

    0.2 watts (Hibernate Mode)
    5.5 watts (Sleep Mode)
    50 watts (Printing)

  • Specified Operating Environment

    Temperature: 50 to 104 Degree F (10 to 40 Degree C)
    Humidity: 8 to 90% Relative Humidity

  • Product Certifications

    UL 60950-1, CSA, FCC Class A, CB IEC 60950-1, SEMKO, GS (TUV), CE Class A, SMA C-Tick

About Lexmark 2590n+

The network-ready Lexmark Forms Printer 2590n+ provides high-quality narrow forms printing and features such as high-yield ribbons, multi-font document support, and character and page monitoring.

High-quality and long lasting
Print near letter-quality multi-font documents and replace supplies less often. Powerful printheads last up to 300 million characters and re-inking ribbons that print up to 8 million characters are available.

Reliability and performance
Print speeds up to 556 cps at 12 cpi and a rugged design that can handle extreme environments and workloads help you to be productive no matter where you are.

Flexible paper handling
Easily switch between push and pull feeds and print on multiple types of media, including single-part or multi-part continuous forms, sheet-fed paper, and single-part or multi-part cut forms.

Easy to use
The easy-to-use operator panel lets you access all of the printer functions, monitor character and page counts and preview fonts.

Easy to maintain
Easily maintain multiple devices from a centralised location with the embedded web server and Lexmark Markvision Enterprise.

Lexmark 2590n+ Features

  • 24-Pin Dot Matrix
  • Print Speeds: Up to 556 cps Fast Draft @ 12 cpi, Up to 480 cps Draft @ 12 cpi, Up to 160 cps Near Letter Quality @ 12 cpi

Key Features

  • 24-Pin Dot Matrix

What's in the box:

  • 2590n+ 24-Pin Dot Matrix Forms Network Printer with Narrow Sheet Fed Paper
  • Safety Instruction Sheet- Operator Panel Overlays
  • Setup Sheet
  • Software and Documentation CD
  • Power Cord
  • Standard Yield Re-Inking Ribbon
  • Lexmark 1 Year Limited Warranty
