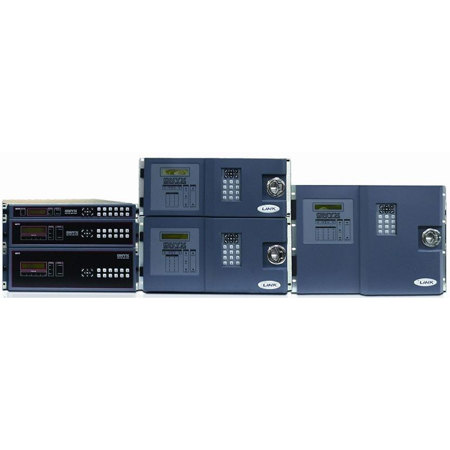

Link Electronics XEV1A2 32x32 Analog Video Router with Stereo Audio Follow, 4RU Frame Supports Redundant Power Supplies

SKU: LEXE32X324U MFR: XE32X32V1A2-4U
Earn VIP Reward Points

Key Features

  • Manage your video signals effectively with this 32x32 analog video router.
  • Enjoy reliable video switching with stereo audio follow for seamless broadcasts.
  • This video switcher supports redundant power for uninterrupted performance.
  • Achieve high-quality video distribution with unity gain and low signal loss.
  • Easily integrate this video router into your existing BNC video setup.
  • Control your video and audio with this Link Electronics video routing solution.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics XEV1A2 Specifications

  • Number of Analog Video Input

    32

  • Analog Video Input: Connectors

    BNC

  • Analog Video Input: Signal Format

    Analog video

  • Analog Video Input: Video Level

    1V +/- 10%

  • Analog Video Input: Impedance

    75Ohms looping

  • Analog Video Input: Coupling

    AC

  • Analog Video Input: Return Loss

    >40dB at 4.43MHz

  • Number of Analog Video Output

    32

  • Analog Video Output: Connector

    BNC

  • Analog Video Output: Level

    Unity gain, +/-0.1dB

  • Analog Video Output: Return Loss

    >40dB at 4.43MHz

  • Analog Video Output: Impedance

    75Ohms +/- 1%

  • Analog Video O/P: Interval Switch

    Line 6, NTSC (Vertical)

  • Analog Video Output: Differential Gain

    0.10%, 10 to 90% APL

  • Analog Video Output: Differential Phase

    0.10 deg., 10 to 90% APL

  • Analog Video Output: Crosstalk

    <62dB

  • Analog Video Output: DC Offset

    <25mV

  • Analog Video Output: Line Rate Tilt

    <0.1%

  • Analog Video Output: Field Rate Tilt

    <0.1%

  • Analog Video Output: SNR

    -73dB

  • Analog Input: Maximum Source Level

    +20dB Max

  • Analog Input: Impedance

    600Ohms balanced

  • Analog Input: Connector Type

    DB25F

  • Analog Output: Maximum Source Level

    +20dB, 600Ohms loaded

  • Analog Output: Impedance

    600Ohms balanced

  • Analog Output: Connector Type

    DB25F

  • Ethernet: Internet

    10/100 Base

  • Power

    400W

  • AC Voltage

    120 / 240 VAC +/- 10%, 50 / 60Hz

  • Humidity

    10 to 90% non-condensing

  • Ambient Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Dimensions (H x W x D)

    7 x 19 x 14" / 17.78 x 48.26 x 35.56cm

  • Weight

    <40lbs / <18.14kg

About Link Electronics XEV1A2

Multiple control interfaces include RS-232/422, TCP/IP, CAN and C-BUS. It supports 1RU, 2RU, 4RU and 8RU frames. Redundant control systems and power supply units are available in 2RU, 4RU and 8RU frames, which enhance system reliability. It is ideal for applications of TV Broadcast, video production, corporate conference rooms, museums, college classrooms, video conferencing, remote learning facilities and many entertainment facilities. The xE line of routing switchers combines full scales of routing with mixed matrix to satisfied most routing demands required by the world today.

The xE routing frames feature front-loading and rear-loading, hot-swappable modules for easy serviceability. 1RU frames use single power supply, 2RU and 4RU frames support redundant power supplies. The routing scale can be configured "on-line" by changing the number of removable modules. The intuitive front LCD display and buttons ease local control. The xE routing switchers are compatible with almost all the control panels and routing control applications produced by Link and support multiple world's prevailing control protocols. The V1A2 Series multi-configuration router includes stereo audio follow. This series is comfortable from an 8x8 up to a 128x128, with or without audio follow.

Link Electronics XEV1A2 Features

  • Composite Video
  • Vertical Interval Switching
  • Up to 64x64, W/AFV
  • Optional Remote Control Panel
  • AFV, breakaway, or X-Y Control
  • Ethernet Control
  • C-BUS, CAN, TCP/IP, RS-232/422

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Manage your video signals effectively with this 32x32 analog video router.
  • Enjoy reliable video switching with stereo audio follow for seamless broadcasts.
  • This video switcher supports redundant power for uninterrupted performance.
  • Achieve high-quality video distribution with unity gain and low signal loss.
  • Easily integrate this video router into your existing BNC video setup.
  • Control your video and audio with this Link Electronics video routing solution.

What's in the box:

  • Link ELectronics XEV1A2 32x32 Analog Video Router with Stereo Audio Follow
  • Link Electronics 10 Year Limited Warranty
