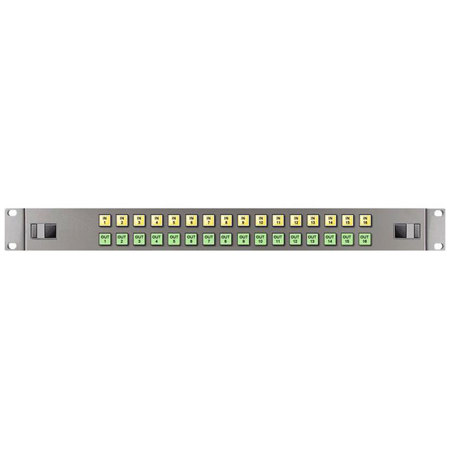

Link Electronics 16 x 16 Analog Video Routing Switcher

SKU: LEXL1616A MFR: XL1616A
Earn VIP Reward Points

Key Features

  • Easily manage multiple analog video sources with this 16x16 video routing switcher.
  • Enjoy reliable video signal distribution with low latency, ideal for live broadcasts.
  • This video switcher supports wide compatibility with various analog video equipment.
  • Achieve high-resolution video clarity with minimal signal degradation using this switcher.
  • Simplify your setup with this easy-to-install video routing solution, saving you time.
  • Get great value with this robust analog video router, backed by a 10-year warranty.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics Video Routing Switcher Specifications

  • Input

    16 x BNC

  • Input: Video Level

    1.0 Vpp, +/- 6 dB

  • Input: Impedance

    75 Ohms looping

  • Input: Coupling

    DC

  • Input: Return Loss

    40 dB @ 3.58 or 4.43 MHz

  • Output

    16 x BNC

  • Output: Level

    Unity gain, +/- 0.1 dB

  • Output: Character Video

    10 IRE units

  • Output: Return Loss

    35 dB @ 3.58 or 4.43 MHz

  • Output: Impedance

    75 Ohms +/- 1%

  • Output: Vertical Interval Switching

    Line 6, NTSC

  • Output: Frequency Response

    +/- 0.1 dB to 5 MHz / -3.0 dB to 50 MHz

  • Output: Differential Gain

    0.10%, 10% to 90% APL

  • Output: Differential Phase

    0.10%, 10% to 90% APL

  • Output: Crosstalk

    62 dB to 5 MHz, Worst case

  • Output: Propagation Delay

    5 ns, typical

  • Output: Hum and Noise

    >60 dB to 5 Hz

  • Output: DC Offset

    <25 mV

  • Output: Line Rate Tilt

    <0.1%

  • Output: Field Rate Tilt

    <0.1%

  • Output: SNR

    -73 dB

  • Ambient Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Humidity

    10 to 90%, non-condensing

  • Power

    9.5 VAR

  • AC Voltage

    120/240 VAC +/- 10%, 50/60 Hz

  • Dimensions (H x W x D)

    1.8 x 19.0 x 9.3" (4.5 x 48.0 x 23.5 cm)

  • Weight

    9 lb (4 kg)

About Link Electronics Video Routing Switcher

Enhance your video routing capabilities with the 16x16 Analog Video Routing Switcher, a high-performance solution designed for the most demanding applications. This durable and reliable switcher is a critical component in modern television facilities, offering unparalleled versatility and ease of use.

Unlike many other routing switchers, this 16x16 model boasts a modular design, allowing for the addition of a 16x16 audio module at a later date. Simply connect a separate audio frame to expand your audio routing capabilities. The frame contains no active components, ensuring a seamless integration.

The switcher also features plug-in power-supply modules. Each frame comes equipped with two front load slots for power supplies, with one standard power supply included. For added reliability, a redundant power supply option is available. The switcher also includes true load power monitoring with remote indicators for both power supplies, ensuring optimal performance.

This 16x16 Analog Video Routing Switcher is equipped with a standard computer hardware-based Ethernet 10Base2 single coax connection remote control panel system. Thanks to the unique 'control panel cradle' feature, local control panels can be easily moved to the 10Base2 remote network and vice-versa, providing a high level of flexibility.

The switcher offers a wide selection of AFV and breakaway types of local and/or remote control panels, catering to a variety of needs. It also includes a built-in RS232 user serial port, with a simple and flexible protocol.

The switcher also supports vertical interval switching referenced to an external input, ensuring precise and efficient video signal routing. Whether you're managing security systems, CCTV systems, or video conferencing systems, this 16x16 Analog Video Routing Switcher from Link Electronics is the high-quality, versatile solution you need.

Link Electronics Video Routing Switcher Features

  • Modular design
  • Plug-in power-supply modules
  • Flexible Ethernet and RS232 based control system
  • Rugged frame construction

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Easily manage multiple analog video sources with this 16x16 video routing switcher.
  • Enjoy reliable video signal distribution with low latency, ideal for live broadcasts.
  • This video switcher supports wide compatibility with various analog video equipment.
  • Achieve high-resolution video clarity with minimal signal degradation using this switcher.
  • Simplify your setup with this easy-to-install video routing solution, saving you time.
  • Get great value with this robust analog video router, backed by a 10-year warranty.

What's in the box:

  • Analog Video Router
  • Power Supply
  • Link Electronics 10 Year Limited Warranty
