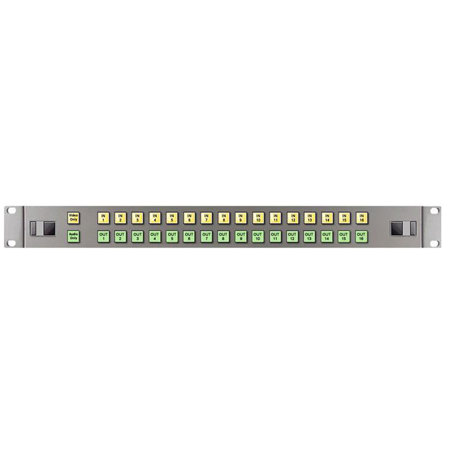

Link Electronics 16 x 16 Analog Video Routing Switcher with Stereo Audio

SKU: LEXL1616C MFR: XL1616C
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 16 video sources with this reliable video switcher.
  • Enjoy high-quality video output with +/- 0.1 dB frequency response up to 5 MHz.
  • This affordable video routing switcher supports both video and stereo audio.
  • Ensure a stable connection with 75 Ohms impedance for consistent performance.
  • Easily manage your audio signals with balanced inputs and outputs for clarity.
  • Compact size (1.8 x 19.0 x 9.3") fits perfectly into any professional setup.
See More Product Details
