Link Electronics 16 x 16 HD/SDI Video Routing Switcher

SKU: LEXL1616HD1 MFR: XL1616HD/1
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 16 HD/SDI video sources with this reliable routing switcher.
  • Enjoy low latency and high resolution video distribution for professional setups.
  • This Link Electronics video switcher supports SMPTE standards for optimal performance.
  • Ensure a stable connection with automatic cable equalization up to 300m at 270 Mb/s.
  • Easily integrate with existing systems using standard BNC connectors and RS-232 control.
  • Get good value with this 16x16 HD/SDI video routing switcher, backed by a 10-year warranty.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics Video Routing Switcher Specifications

  • SDI Input

    16 x BNC

  • SDI Input: Data Rate

    270 Mb/s, 360 Mb/s, 540 Mb/s, 1.4835 Gb/s

  • SDI Input: Data Type

    SMPTE 259M, SMPTE 292M, SMPTE 344M, DVB-ASI

  • SDI Input: Input Cable Equalization

    Automatic up to 300 m @270 Mb/s, 100 m @ 1.485 Gb/s

  • SDI Input: Video Level

    800 mV +/- 10%

  • SDI Input: Impedance

    75 Ohms looping

  • SDI Input: Coupling

    DC

  • SDI Input: Return Loss

    >15 dB @ 1.485 Gb/s

  • SDI Output

    16 x BNC

  • SDI Output: Level

    Unity gain, +/- 0.1 dB

  • SDI Output: Character Video

    90 IRE units

  • SDI Output: Return Loss

    >15 dB @ 1.485 Gb/s

  • SDI Output: Impedance

    75 Ohms +/- 1%

  • SDI Output: Vertical Interval Switching

    Line 6, NTSC

  • SDI Output: Frequency Response

    +/- 0.1 dB to 5 MHz / -3.0 dB to 50 MHz

  • SDI Output: Differential Gain

    0.10%, 10% to 90% APL

  • SDI Output: Differential Phase

    0.10%, 10% to 90% APL

  • SDI Output: Crosstalk

    62 dB

  • SDI Output: Propagation Delay

    5 ns, typical

  • SDI Output: Hum and Noise

    >60 dB to 5 Hz

  • SDI Output: DC Offset

    <25 mV

  • SDI Output: Line Rate Tilt

    <0.1%

  • SDI Output: Field Rate Tilt

    <0.1%

  • SDI Output: SNR

    -73 dB

  • SDI Output: Output Jitter

    <25 ps

  • Ambient Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Humidity

    10 to 90%, non-condensing

  • Power

    9.5 VAR

  • AC Voltage

    120/240 VAC +/- 10%, 50/60 Hz

  • Dimensions (H x W x D)

    1.8 x 19.0 x 9.3" (4.5 x 48.0 x 23.5 cm)

  • Weight

    9 lb (4 kg)

About Link Electronics Video Routing Switcher

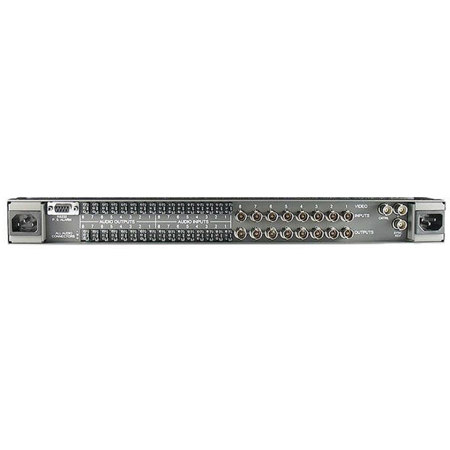

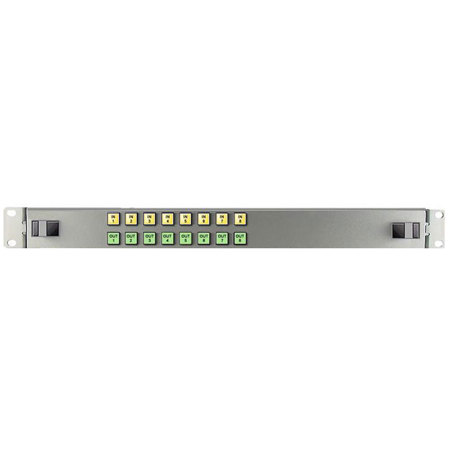

You can elevate your professional video production capabilities with the INNOVATION XL1616HD, a robust 16 x 16 HD/SDI Video Routing Switcher designed to meet the rigorous demands of live events, broadcast studios, and post-production facilities. This high-quality switcher is engineered to flawlessly route all SMPTE and ITU serial digital video signals, including up to 1.4835Gbps HD-SDI serial digital signals, as well as high-resolution signals from computer graphics cards with HD/SDI outputs.

Utilizing cutting-edge technology and advanced HD engineering techniques, the XL1616HD stands out with exceptional performance specifications. It features a return loss greater than 20dB, ensuring signal integrity and minimizing potential disruptions. The durable 1RU rack enclosure, a staple in the industry for its space-saving efficiency, is designed to accommodate up to two power supplies and the main signal processor board along with its control module. The convenience of front-loading cards allows for easy maintenance and upgrades without the need to power down or reconfigure rear frame cabling.

The XL1616HD boasts the latest Trompeter video I/O connectors, which support performance up to 3Gbps, contributing to the switcher's superior return loss performance. The versatile and efficient power supplies are auto-ranging and front-loading, secured with the standard RJM latching system, making this switcher a reliable choice for mobile applications where stability is crucial.

For added reliability, an optional redundant power supply can be housed within the unit, providing constant protection and peace of mind. The switcher is compatible with a wide range of RJM control panels, from intuitive X-Y versions to streamlined single bus alternatives, ensuring a seamless fit into your existing workflow. All control panels can be situated locally or remotely, offering flexibility to accommodate the unique requirements of your installation.

Integration with third-party controllers or control systems is made effortless with the switcher's standard RS232 serial interface, making it compatible with sophisticated router control systems like AMX and Crestron controllers. The INNOVATION XL1616HD is not only a testament to Link Electronics' reputation for producing high-quality video routing equipment but also a versatile and efficient solution for professionals seeking to enhance their video signal routing with a reliable and high-performance switcher.

Link Electronics Video Routing Switcher Features

  • Automatically adapts to SMPTE and ITU standards for HD/SDI and SDI data streams
  • Data rates from 143Mbps to 1.4835Gbps
  • Excellent return loss and jitter performance
  • Input equalization up to 300 ft (100M) of 1694A cable or equivalent
  • Output re-clocking
  • Color black or Tri-level sync reference input
  • RS232 serial port for external control
  • Redundant power supplies available
  • Range of control panels available from X-Y to single bus
  • Windows-based GUI interface
  • All boards are front loading and hot swappable

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Seamlessly switch between 16 HD/SDI video sources with this reliable routing switcher.
  • Enjoy low latency and high resolution video distribution for professional setups.
  • This Link Electronics video switcher supports SMPTE standards for optimal performance.
  • Ensure a stable connection with automatic cable equalization up to 300m at 270 Mb/s.
  • Easily integrate with existing systems using standard BNC connectors and RS-232 control.
  • Get good value with this 16x16 HD/SDI video routing switcher, backed by a 10-year warranty.

What's in the box:

  • HD Routing Switcher
  • Power Supply
  • Link Electronics 10 Year Limited Warranty
