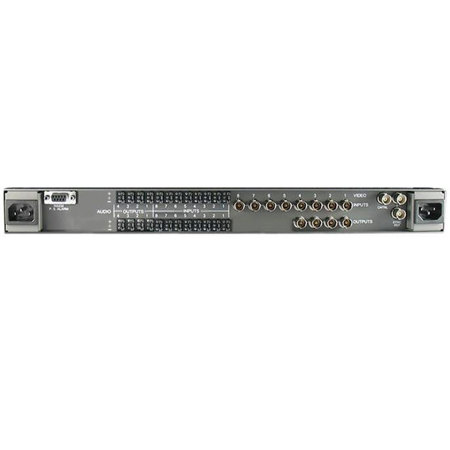

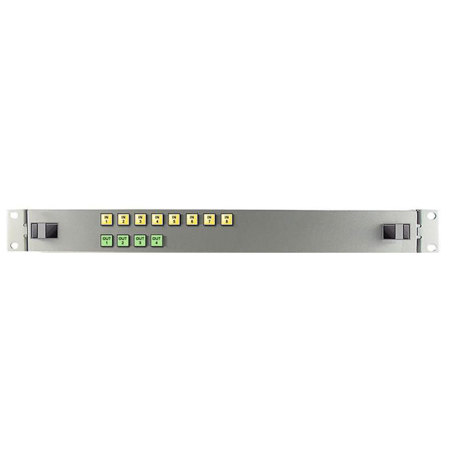

Link Electronics 8 x 4 HD/SDI Video and Analog Audio Routing Switcher
Link Electronics Video Routing Switcher: Picture 1 thumbnail
Link Electronics Video Routing Switcher: Picture 2 thumbnail
See all Link Electronics items

Link Electronics 8 x 4 HD/SDI Video and Analog Routing Switcher

SKU: LEXL804HD1A MFR: XL804HD/1A
Be the first to review this itemAsk a Question
$5,140.00
OR
$429/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamless HD/SDI video routing: Effortlessly switch between 8 inputs and 4 outputs.
  • Ensure reliable connections with automatic cable equalization up to 300m @270 Mb/s.
  • Enjoy wide compatibility: Supports SMPTE 259M, 292M, 344M, and DVB-ASI data types.
  • Maintain high resolution: Experience unity gain with +/- 0.1 dB for pristine video.
  • Easy setup with standard 120/240 VAC power input, perfect for any environment.
  • Low latency switching: Benefit from a typical propagation delay of just 5 nanoseconds.
See More Product Details
Special Order?Estimated to Ship: 09/14/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Link Electronics Video Routing Switcher Specifications

  • SDI Input

    8 x BNC

  • SDI Input: Data Rate

    270 Mb/s, 360 Mb/s, 540 Mb/s, 1.4835 Gb/s

  • SDI Input: Data Type

    SMPTE 259M, SMPTE 292M, SMPTE 344M, DVB-ASI

  • SDI Input: Input Cable Equalization

    Automatic up to 300 m @270 Mb/s, 100 m @ 1.485 Gb/s

  • SDI Input: Video Level

    800 mV +/- 10%

  • SDI Input: Impedance

    75 Ohms looping

  • SDI Input: Coupling

    DC

  • SDI Input: Return Loss

    >15 dB @ 1.485 Gb/s

  • SDI Output

    4 x BNC

  • SDI Output: Level

    Unity gain, +/- 0.1 dB

  • SDI Output: Character Video

    90 IRE units

  • SDI Output: Return Loss

    >15 dB @ 1.485 Gb/s

  • SDI Output: Impedance

    75 Ohms +/- 1%

  • SDI Output: Vertical Interval Switching

    Line 6, NTSC

  • SDI Output: Frequency Response

    +/- 0.1 dB to 5 MHz / -3.0 dB to 50 MHz

  • SDI Output: Differential Gain

    0.10%, 10% to 90% APL

  • SDI Output: Differential Phase

    0.10%, 10% to 90% APL

  • SDI Output: Crosstalk

    62 dB

  • SDI Output: Propagation Delay

    5 ns, typical

  • SDI Output: Hum and Noise

    >60 dB to 5 Hz

  • SDI Output: DC Offset

    <25 mV

  • SDI Output: Line Rate Tilt

    <0.1%

  • SDI Output: Field Rate Tilt

    <0.1%

  • SDI Output: SNR

    -73 dB

  • SDI Output: Output Jitter

    <25 ps

  • Ambient Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Humidity

    10 to 90%, non-condensing

  • Power

    9.5 VAR

  • AC Voltage

    120/240 VAC +/- 10%, 50/60 Hz

  • Dimensions (H x W x D)

    1.8 x 19.0 x 9.3" (4.5 x 48.0 x 23.5 cm)

  • Weight

    9 lb (4 kg)

About Link Electronics Video Routing Switcher

From the INNOVATION series, the 8 x 4 HD/SDI Video and Analog Routing Switcher is a state-of-the-art device designed to seamlessly integrate into your video production setup. This advanced switcher features an 8x4 and 8x8 configuration, intelligently auto-sensing HD or SDI video signals to ensure the correct format is delivered on each output.

The XL804HD/1A model is a compact solution, offering 8x4 HD asynchronous video in a single 1RU frame, complete with a single power supply. This switcher stands out with its modular design, allowing for easy expansion. It includes separate plug-in modules for 8x4 and 8x8 video, with the option to add 8x4 and 8x8 audio later by simply plugging in the desired audio module.

This routing switcher is designed with reliability in mind, featuring plug-in power-supply modules with two front load slots. One supply comes as standard, while the second slot can be used for a redundant power supply option. For added peace of mind, it includes true load power monitoring with remote indicators for both power supplies.

The switcher also boasts a standard computer hardware-based Ethernet 10Base2 single coax connection for remote control panel systems. Thanks to Link Electronics' unique 'control panel cradle', model CR100, local control panels can be easily moved to the 10Base2 remote network and vice versa.

The 8 x 4 HD/SDI Video and Analog Routing Switcher offers a wide selection of AFV, breakaway, and X-Y local and/or remote control panels. It also includes a built-in RS232 user serial port, with a simple and flexible protocol. Vertical interval switching is referenced to an external input, ensuring precise control over your video production.

In summary, the 8 x 4 HD/SDI Video and Analog Routing Switcher from the INNOVATION series is a versatile, expandable, and reliable solution for your video and audio routing needs.

Link Electronics Video Routing Switcher Features

  • Automatically adapts to SMPTE and ITU standards for HD/SDI and SDI data streams
  • Data rates from 143Mbps to 1.4835Gbps
  • Excellent return loss and jitter performance
  • Input equalization up to 300 ft (100M) of 1694A cable or equivalent
  • Output re-clocking
  • Hot swappable front loading boards
  • Redundant power supply available
  • Wide range of local or remote control panels available
  • Versatile RS232 serial interface standard

Warranty Information

This product has a limited warranty of 120 months.
