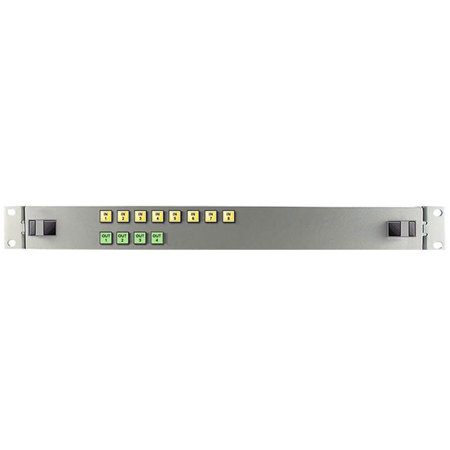

Link Electronics 8 x 4 HD/SDI Video Routing Switcher with Analog Stereo Audio

SKU: LEXL804HD3A MFR: XL804HD/3A
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 8 HD/SDI video sources with this reliable video routing switcher.
  • Enjoy pristine audio with balanced analog stereo audio routing capabilities included.
  • This HD/SDI video switcher supports SMPTE standards for professional broadcast quality.
  • Control your video distribution easily via RS-232 for a streamlined workflow setup.
  • Ensure signal integrity with automatic cable equalization up to 300m for SDI inputs.
  • Get superior performance with low latency and high resolution video signal transmission.
