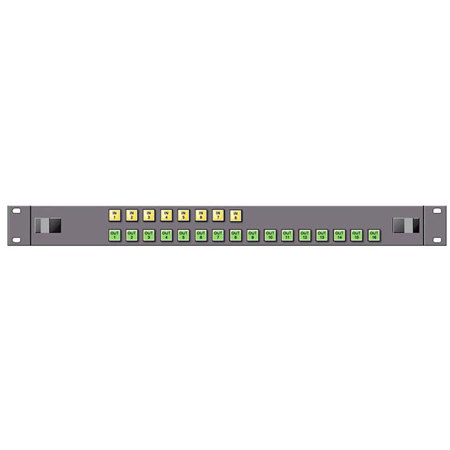

Link Electronics 8 x 16 Analog Video Routing Switcher

SKU: LEXL816A MFR: XL816A
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 8 video inputs to 16 outputs with this video switcher.
  • Ensure reliable streaming with low latency using our high-performance video router.
  • Enjoy good compatibility with various analog video sources via BNC connections.
  • This affordable video switcher offers professional-grade features for any setup.
  • Easy setup and integration into existing systems with standard power supply included.
  • Experience high resolution video routing with minimal signal degradation for clear output.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics Video Routing Switcher Specifications

  • Input

    8 x BNC

  • Input: Video Level

    1.0 Vpp, +/- 6 dB

  • Input: Impedance

    75 Ohms looping

  • Input: Coupling

    DC

  • Input: Return Loss

    40 dB @ 3.58 or 4.43 MHz

  • Output

    16 x BNC

  • Output: Level

    Unity gain, +/- 0.1 dB

  • Output: Character Video

    10 IRE units

  • Output: Return Loss

    35 dB @ 3.58 or 4.43 MHz

  • Output: Impedance

    75 Ohms +/- 1%

  • Output: Vertical Interval Switching

    Line 6, NTSC

  • Output: Frequency Response

    +/- 0.1 dB to 5 MHz / -3.0 dB to 50 MHz

  • Output: Differential Gain

    0.10%, 10% to 90% APL

  • Output: Differential Phase

    0.10%, 10% to 90% APL

  • Output: Crosstalk

    62 dB to 5 MHz, worst case

  • Output: Propagation Delay

    5 ns, typical

  • Output: Hum and Noise

    >60 dB to 5 Hz

  • Output: DC Offset

    <25 mV

  • Output: Line Rate Tilt

    <0.1%

  • Output: Field Rate Tilt

    <0.1%

  • Output: SNR

    -73 dB

  • Ambient Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Humidity

    10 to 90%, non-condensing

  • Power

    9.5 VAR

  • AC Voltage

    120/240 VAC +/- 10%, 50/60 Hz

  • Dimensions (H x W x D)

    1.8 x 19.0 x 9.3" (4.5 x 48.0 x 23.5 cm)

  • Weight

    9 lb (4 kg)

About Link Electronics Video Routing Switcher

The 8x16 analog video router is designed for the highest performance and most demanding applications. Small routing switchers are an essential part of almost every television facility. In a modern television plant how these small routers are designed can have a major effect of their versatility and ease of use. Unlike most small routing switchers this 8x16 has important features such as:

• Modular design. A separate plug-in module for the 8x16 video. There are no active components in the frame.

• Plug-in power-supply modules. Two front load slots for power supplies. One supply is standard. The second supply is the redundant power supply option. True load power monitoring with remote indicators included for both power supplies.

• A standard computer hardware based Ethernet 10Base2 single coax connection based remote control panel system.

• Because of RJM unique 'control panel cradle', model CR100, local control panels can be easily moved to the 10Base2 remote network and vice versa.

• A wide selection of AFV, breakaway, and X-Y local and/or remote control panels.

• Built-in RS232 user serial port, with a simple and flexible protocol.
• Interchangeable analog modules in the same rugged 1RU mounting frame.

• Vertical interval switching referenced to an external input.

Link Electronics Video Routing Switcher Features

  • Modular design
  • Plug-in power-supply modules
  • Flexible Ethernet and RS232 based control system
  • Rugged frame construction

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Seamlessly switch between 8 video inputs to 16 outputs with this video switcher.
  • Ensure reliable streaming with low latency using our high-performance video router.
  • Enjoy good compatibility with various analog video sources via BNC connections.
  • This affordable video switcher offers professional-grade features for any setup.
  • Easy setup and integration into existing systems with standard power supply included.
  • Experience high resolution video routing with minimal signal degradation for clear output.

What's in the box:

  • Analog Video Router
  • Power Supply
  • Link Electronics 10 Year Limited Warranty
