Link Electronics 8 x 8 HD/SDI Video Routing Switcher with Analog Audio

What sets the INNOVATION XL8x8 series of routing switchers apart is its advanced technology and user-friendly design. This series includes the HD/SDI XL818HD/1A and XL818HD/3A configurations, both of which are equipped with an auto-sensing feature for HD or SDI video signals. This ensures the correct format is provided on each of the 8 output destinations, enhancing the efficiency and reliability of your video routing tasks.

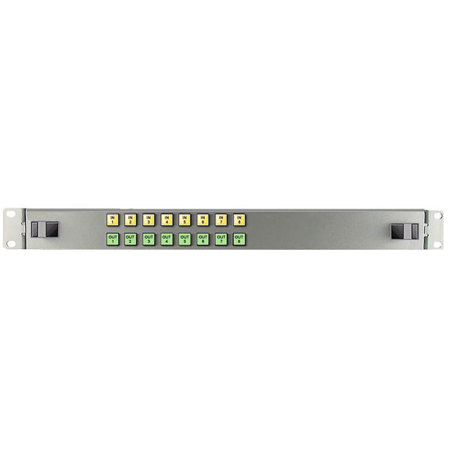

The XL818HD/1A model boasts an 8x8 HD asynchronous video in a compact 1RU frame, complete with a single power supply. This high-quality, durable switcher is designed with a modular structure, allowing for a separate plug-in module for the 8x8 video. The 8x8 audio can be conveniently added later by simply plugging in the desired type of audio module, providing flexibility and adaptability to your evolving needs.

One of the key features of this efficient video routing switcher is its plug-in power-supply modules. It comes with two front load slots for power supplies, with one supply as standard. The second slot can be utilized for a redundant power supply option, ensuring uninterrupted operation. The switcher also includes true load power monitoring with remote indicators for both power supplies, enhancing its reliability.

The INNOVATION XL8x8 series also incorporates a standard computer hardware-based Ethernet 10Base2 single coax connection for remote control panel system. Thanks to Link Electronics' unique 'control panel cradle', model CR100, local control panels can be easily transferred to the 10Base2 remote network and vice versa, making it a user-friendly choice for professional video applications.

This series also offers a wide selection of AFV, breakaway, and X-Y local and/or remote control panels. It also features a built-in RS232 user serial port with a simple and flexible protocol. The vertical interval switching is referenced to an external input, further enhancing the functionality of this high-quality video routing switcher.
