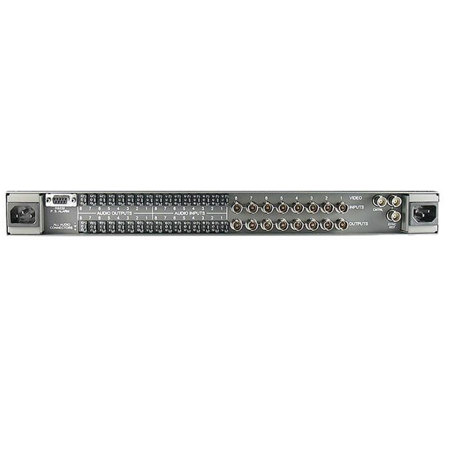

Link Electronics 8 x 8 HD/SDI Video Routing Switcher with Analog Stereo Audio

SKU: LEXL818HD3A MFR: XL818HD/3A
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 8 HD/SDI video sources with this reliable video routing switcher.
  • Enjoy pristine audio with balanced analog stereo audio routing capabilities on this switcher.
  • Easily manage your video signals with automatic cable equalization up to 300m at 270 Mb/s.
  • This video switcher supports SMPTE 259M and SMPTE 292M for versatile video format handling.
  • Integrate effortlessly with existing systems using RS-232 control for remote operation.
  • Ensure signal integrity with low latency and minimal signal degradation using this component.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics Video Routing Switcher Specifications

  • SDI Input

    8 x BNC

  • SDI Input: Data Rate

    270 Mb/s, 360 Mb/s, 540 Mb/s, 1.4835 Gb/s

  • SDI Input: Data Type

    SMPTE 259M, SMPTE 292M, SMPTE 344M, DVB-ASI

  • SDI Input: Input Cable Equalization

    Automatic up to 300 m @ 270 Mb/s, 100 m @ 1.485 Gb/s

  • SDI Input: Video Level

    800 mV +/- 10%

  • SDI Input: Impedance

    75 Ohms looping

  • SDI Input: Coupling

    DC

  • SDI Input: Return Loss

    >15 dB @ 1.485 Gb/s

  • SDI Output

    8 x BNC

  • SDI Output: Level

    Unity Gain, +/- 0.1 dB

  • SDI Output: Character Video

    90 IRE units

  • SDI Output: Return Loss

    >15 dB @ 1.485 Gb/s

  • SDI Output: Impedance

    75 Ohms +/- 1%

  • Video Output: V.I. switching

    Line 6, NTSC

  • SDI Output: Frequency Response

    +/- 0.1 dB to 5 MHz / -3.0 dB to 50 MHz

  • SDI Output: Differential Gain

    0.10%, 10% to 90% APL

  • SDI Output: Differential Phase

    0.10%, 10% to 90% APL

  • SDI Output: Crosstalk

    62 dB

  • SDI Output: Propagation Delay

    5 ns, typical

  • SDI Output: Hum and Noise

    >60 dB to 5 Hz

  • SDI Output: DC Offset

    <25 mV

  • SDI Output: Line Rate Tilt

    <0.1%

  • SDI Output: Field Rate Tilt

    <0.1%

  • SDI Output: SNR

    -73 dB

  • SDI Output: Output Jitter

    <25 ps

  • Audio Input: Connector Type

    Weco, 3-pin disconnect

  • Audio Input: Impedance

    20k Ohms

  • Audio Input: Level

    +26 dBu, maximum

  • Audio Input: CMRR

    60 dB @ 1 kHz

  • Audio Output: Signal Type

    Balanced

  • Audio Output: Connector Type

    Weco, 3-pin disconnect

  • Audio Output: Impedance

    >30 Ohms

  • Audio Output: Level

    26 dBu, maximum

  • Audio Output: Frequency Response

    +/- 0.1 dB to 20 kHz, ref 1 kHz

  • Audio Output: Crosstalk

    90 dB @ 10 kHz

  • Audio Output: DC Offset

    < 50 mV

  • Audio Output: SNR

    <100 dB, 20 Hz to 20 kHz

  • Audio Output: IM/THD

    <0.02%

  • Ambient Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Humidity

    10 to 90%, non-condensing

  • Power

    9.5 VAR

  • AC Voltage

    120/240 VAC +/- 10%, 50/60 Hz

  • Dimensions (H x W x D)

    1.8 x 19.0 x 9.3" (4.5 x 48.0 x 23.5 cm)

  • Weight

    9 lb (4 kg)

About Link Electronics Video Routing Switcher

While the INNOVATION XL8x8 series of routing switchers, including the HD/SDI XL818HD/1A and XL818HD/3A configurations, are designed to seamlessly auto-sense HD or SDI video signals, they also ensure the correct format is provided on each output. This series is renowned for its 8x8 HD asynchronous video and analog stereo audio capabilities, all housed within a compact 1RU frame with a single power supply.

The XL8x8 series stands out with its modular design, featuring a separate plug-in module for the 8x8 video. The 8x8 audio can be conveniently added later by simply plugging in the desired type of audio module, offering flexibility and adaptability to your evolving needs. Notably, there are no active components in the frame, enhancing the product's durability and reliability.

The series also boasts plug-in power-supply modules, with two front load slots for power supplies. One supply comes as standard, while the second supply serves as a redundant power supply option. The system also includes true load power monitoring with remote indicators for both power supplies, ensuring efficient power management.

The INNOVATION XL8x8 series is equipped with a standard computer hardware-based Ethernet 10Base2 single coax connection for remote control panel systems. Thanks to Link Electronics' unique 'control panel cradle', model CR100, local control panels can be easily transitioned to the 10Base2 remote network and vice versa, providing versatile control options.

The series also offers a wide selection of AFV, breakaway, and X-Y local and/or remote control panels, catering to a variety of professional video and audio setups. Additionally, it features a built-in RS232 user serial port, with a simple and flexible protocol, and vertical interval switching referenced to an external input, further enhancing its efficiency and versatility.

Link Electronics Video Routing Switcher Features

  • Auto detect of HD and SDI formats
  • Auto input equalization and output re-clocking
  • Hot swappable front loading boards
  • Redundant power supply available
  • Wide range of local or remote control panels available
  • Versatile RS232 serial interface standard

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Seamlessly switch between 8 HD/SDI video sources with this reliable video routing switcher.
  • Enjoy pristine audio with balanced analog stereo audio routing capabilities on this switcher.
  • Easily manage your video signals with automatic cable equalization up to 300m at 270 Mb/s.
  • This video switcher supports SMPTE 259M and SMPTE 292M for versatile video format handling.
  • Integrate effortlessly with existing systems using RS-232 control for remote operation.
  • Ensure signal integrity with low latency and minimal signal degradation using this component.

What's in the box:

  • HD Routing Switcher
  • Video Routing Switcher
  • Link Electronics 10 Year Limited Warranty
