Lectrosonics ZS-LRLT-B1 L Series Kit, Includes LR Receiver, LT Beltpack Transmitter, M152 Mic, LRSHOE Camera Shoe Mount, CCMINI Case, B1: 537.600-614.375 MHz

The new L Series units all share a wide tuning range of three standard Lectrosonics blocks or 67.5 to 76.8 MHz, depending on the specific frequency band and employ Lectrosonics' patented Digital Hybrid Wireless technology for compandor-free audio along with compatibility modes for interoperability with older analog systems. Like all their other products, the L Series units are made in the USA and feature machined aluminum housings, user-friendly setup and reliable operation. The ZS-LRLMb kit [or ZS-LRLT kit] makes it easy to put these products right to work on the job. Everything you need is here: transmitter, receiver, mounting hardware, lav mic and connecting cables. Even batteries are included! Check with your Lectrosonics dealer for pricing and availability.

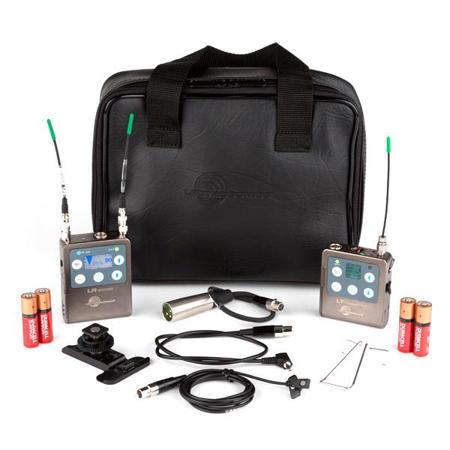

Containing the following items:
LR-xx receiver (Frequency band A1, B1 or C1)
LT-xx transmitter (Frequency band A1, B1 or C1)
M152/5P lavaliere Microphone
LRSHOE camera shoe mount for LR Receiver
MCSRXLR cable, TA3F to XLRM
MCLRTRS cable, TA3F to 1/8" TRS
CCMINI zippered pouch

Digital Hybrid Wireless Compact Receiver (LR)
• Tunes over a 75 MHz range
• Tracking front-end filters
• Digital Hybrid Wireless with compatibility modes for use with earlier transmitters
• Compact size powered by two AA batteries or an optional battery eliminator
• LCD with RF spectrum scanning
• SmartSquelch noiseless muting adapts automatically for near/far operation
• DSP-based pilot tone for squelch control
• USB port for firmware updates
• IR sync port for transmitter setup

Excellent performance in a small package for ENG and DSLR video production is the purpose and intent of the LR receiver design. Tracking front-end filters block interference from high powered RF signals on nearby channels to preserve the extended operating range. RF spectrum scanning displays accurate results on the LCD to make finding clear spectrum quick and easy. The receiver is powered by internal AA batteries or with an optional battery eliminator. The top panel includes an IR port for transmitter setup. Firmware updates are enabled via a USB port on the side panel. The housing is made from a solid machined aluminum billet.

Digital Hybrid Wireless UHF Belt-Pack Transmitter (LT)
• Covers three standard frequency blocks
• Digital Hybrid Wireless for compandor-free audio
• Selectable 50 or 100mW output power
• Compatibility modes for use with analog receivers
• 25 or 100 kHz tuning steps for up to 3072 selectable frequencies
• Integrated multi-function switch for mute or talkback modes
• Wide range input gain control in 1 dB steps
• IR port for setup with IR enabled receivers
• USB port for firmware updates.
• Menu selectable mic or instrument input
• Optional battery eliminator
• Detachable antenna

The LT transmitter offers a full set of professional features in a compact, rugged package. The unit is compatible with all Digital Hybrid Wireless receivers and even some from other manufacturers, making it comfortable in a wide variety of applications from video production to theater, stage and house of worship. The LT can be configured to operate as a "one touch" device with a single power on/off switch on the top panel or with full access to all operational parameters using the side panel membrane switches and LCD interface. The top panel switch can also be configured to provide a mute or talkback function.

M152/SM5P
High-performance omnidirectional lav mic, 5-pin plug with water/dust sleeve.

LRSHOE
LRSHOE is an accessory shoe for LR receiver to allowing mounting on DSLR type camera's.

CCMINI
A soft sided, padded and zippered carrying case for compact wireless systems such as the UCR400, UCR401 and other UCR units.

MCLRTRS
• 12" audio cable for SR receiver
• TA3F plug to 3 pin male XLR.
