Linhof 107 Technikardan 23s Complete 6x9 View Camera
See all Linhof items

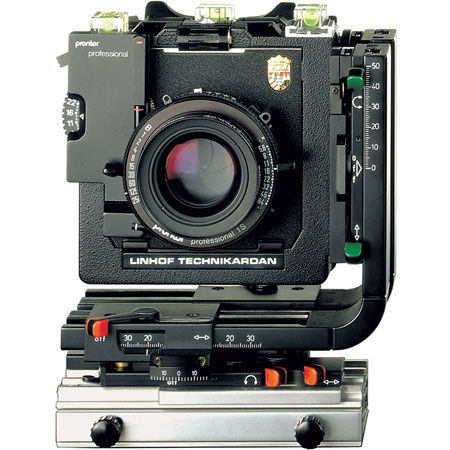

Linhof Technikardan 23s Complete 6x9 View Camera

SKU: LF107

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : What about the lenses?ANDREW R : This camera will work with most large format lenses (lens in shutter) and features the standard Linhof Technika lensboard for interchangeability.

Reviews about this item

Review Summary

Linhof Technikardan 23s Specifications

  • Type

    View Camera

  • Format

    6x9

  • Camera Movements

    -

  • Rise

    Front: 50mm rise only, Rear: 50mm rise only

  • Swing

    Front and Rear swings limited only by bellows, with reference scales +/- 10 degrees with a "zero" position click-stop

  • Tilt

    Front and Rear tilts limited only by bellows, with reference scales +/- 10 degrees with a "zero" position click-stop

  • Lateral shift

    front - total, rear - total 55 mm / 2.2"

  • Back swing

    30 / 25 mm / 2" up

  • Back tilt

    30 / 25 mm / 2" up

  • Camera back

    6x9cm (2x3") Vertical/Horizontal Linhof Technika 23 type, accepts standard 6x9 cut film holders, Linhof Super Rollex and Linhof Cine Rollex Roll film backs and Linhof 23 Polaroid backs only - NOTE! this camera does NOT accept Graphic-style(or Horseman/Mamiya RB) type backs

  • Track extention

    Maxim. camera extension 340 mm
    Minim. camera extension with wide-angle bellows 48 mm / 2"

  • Bellows

    Interchangeable

  • Lens panel

    Linhof Technika 45 Type 96x99mm

  • Dimentions

    Length 125 mm / 5" x Width 165 mm / 6.5" x Height 210 mm / 8.2"

  • Weight

    without lens 2800 g / 6 lb.

About Linhof Technikardan 23s

This is a totally different view camera. The studio on the go. The Technikardan perfectly combines the compactness of the classic Linhof Technika dropbed design and the optical bench versatility of the Kardan series.

It is a compact and mobile camera system designed for the demanding pro who needs to travel light but also wants to exploit all the possibilities of a fully adjustable viewcamera system. The disengageable click-stops assure positive zero settings for faster operation. The patented concept of the rotating standards allows to fold the camera to extremely compact dimensions. There are two formats available: 6x9 and 4x5/9x12.

Linhof Technikardan 23s Features

  • Lens tilt (front) reference scales 10°
  • Screen tilt (rear) zero clickstops
  • Vertical axis swing 360°, reference scales of front / rear standard zero click stops

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • 13.5" bellows
  • 13.5" rail
  • blank lensboard (001013)
  • front and rear L-standards with spirit levels
  • grid-lines groundglass
  • Linhof Quicklock 23 back
