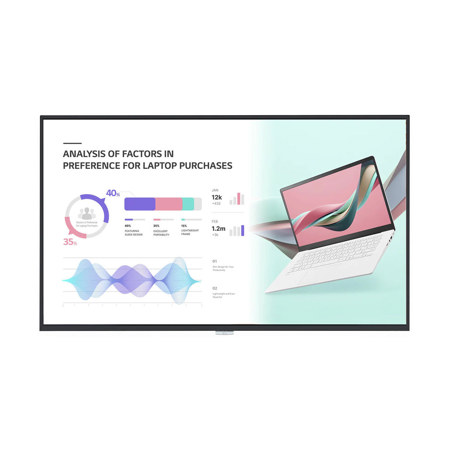

LG UH5J-H 43" 16:9 4K Ultra HD Digital Signage Commercial Smart IPS LCD Display

SKU: LG43UH5JH MFR: 43UH5J-H
Earn VIP Reward Points

Key Features

  • Experience stunning visuals with 4K Ultra HD resolution on this 43-inch commercial display.
  • Showcase vibrant digital signage content thanks to the brilliant 500 nits IPS panel.
  • Enjoy seamless content delivery with versatile connectivity options, including multiple HDMI and DisplayPort inputs.
  • Operate continuously with 24/7 durability, perfect for demanding commercial environments.
  • Manage content effortlessly with the integrated webOS 6.0 smart platform and built-in Wi-Fi.
  • Achieve flexible installations with both portrait and landscape orientation support for your commercial monitor.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

LG UH5J-H Specifications

Panel
  • Screen Size

    43" (109.22cm)

  • Panel Technology

    IPS

  • Backlight Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (4K UHD)

  • Refresh Rate

    60 Hz

  • Brightness (Typ.)

    500 nits

  • Contrast Ratio

    1200:1

  • Dynamic Contrast Ratio

    1000000:1

  • Color Gamut

    BT709 95%

  • Color Depth (Number of Colors)

    1.07 Billion Colors, 8 bit + FRC

  • Viewing Angle (H x V)

    178 Degree x 178 Degree

  • Response Time (G to G)

    8ms

  • Surface Treatment (Haze)

    25%

  • Surface Treatment (Anti Glare)

    No

  • Surface Treatment (Hard Coating)

    No

  • Operation Hours

    24/7 (Hours per Day / Days per Week)

  • Lifetime

    Up to 50,000 Hrs

  • Orientation

    Portrait / Landscape

  • Transparency

    No

  • QWP (Quarter Wave Plate)

    No

  • Touchscreen

    No

  • Operating System (OS)

    webOS 6.0

  • Processor

    No

  • Graphics

    No

  • Storage

    No

  • Internal Memory

    16GB eMMC

  • Power Consumption (Max.)

    120W

  • Power Supply

    AC 100-240V, 50/60 Hz

Electrical

Jump to...
  • Power Consumption

    Power Off: 0.5W
    Display Power Management (DPM): 0.5W
    Smart Energy Saving (70%): 56W
    Typical: 80W

  • Power Type

    Built-in Power

  • BTU Heat Generation

    Max: 410 BTU
    Typical: 273 BTU

Connectivity

Jump to...
  • HDMI In

    Yes (3x) HDMI1DMI2: HDCP 2.2/1.4 HDMI3: HDCP 1.4

  • IR In

    Yes (3.5mm)

  • DVI-D In

    Yes, 1x HDCP 1.4

  • RGB In

    No

  • Audio In

    Yes, 1x 3.5mm

  • DisplayPort In

    Yes, 1x HDCP 2.2/1.3

  • RS-232C In (3.5mm 4-pin)

    Yes, 1x

  • RS-232C In (D-sub 9-pin)

    No

  • RJ45 (LAN) In

    Yes, 1x

  • USB Type-A In

    Yes, 1x USB 2.0

  • USB Type-C In

    No

  • Power In

    No (DC From External PWR Box)

  • Power Loop In

    No

  • HDMI Out

    Yes, 1x

  • DisplayPort Out

    No

  • Audio Out

    Yes, 1x 3.5mm

  • Touch USB

    No

  • IR Out

    No

  • RJ45 (LAN) Out

    No

  • RS-232C Out (3.5mm)

    Yes, 1x

  • RS-232C Out (D-sub 9-pin)

    No

  • Power Loop Out

    No

  • External Speaker Out (3.5mm)

    No

  • Bluetooth

    No

  • Daisy Chain

    Yes (input HDMI, DP / Output HDMI)

  • Built-in Wi-Fi

    Yes

Audio/Sound

Jump to...
  • Built-in Speakers

    No

Features

Jump to...
  • Crestron Certified Compatibility

    Yes

  • Beacon

    Yes

  • Play Via URL

    Yes

  • Cisco Certified Compatibility

    Yes

  • Failover

    Yes

Software Compatibility

Jump to...
  • SuperSign CMS

    Yes

  • SuperSign Media Editor

    No

  • SuperSign Control+

    Yes

  • SuperSign WB

    Yes

  • SuperSign Cloud

    No

  • Mobile CMS

    No

  • Connected Care

    Yes

Regulatory & Certifications

Jump to...
  • UL Certification

    No

  • U.S. ePEAT (Environmental)

    No

  • FCC (Regulatory)

    EMC Class A

  • IP Rating (Solid / Liquid Ingress)

    IP5X

  • TAA Compliance

    No

  • CE Marking (Regulatory)

    Yes

  • ISTA6 (Packaging)

    No

  • ERP (Environmental)

    Yes

  • Energy Star (Environmental)

    Yes

Protective Glass

Jump to...
  • Thickness

    No

  • Degree of Protection

    No

  • Tempered / Chemical Strengthening

    No

  • Anti-Reflective

    No

  • Anti-Reflective Coating

    No

  • Anti-Reflective Film

    No

  • Infrared - Resistance (IR)

    No

  • Shatter-Proof

    No

  • Heat Dissipation

    No

  • Heater

    No

  • Noise Level

    No

Smart Features

Jump to...
  • Screen Share

    Yes

Hospitality Features

Jump to...
  • Pro: Idiom

    Yes

  • Wake on LAN

    Yes

Hardware Features

Jump to...
  • Local Key Operation

    Yes

  • Built-in Microphone

    No

  • Built-in Camera

    No

  • Pixel Sensor

    No

  • Temperature Sensor

    Yes

  • Auto Brightness Sensor

    Yes

  • Built-in Cooling Fan

    No

  • Acceleration (Gyro) Sensor

    Yes

  • Current Sensor

    No

  • BLU Sensor

    No

  • Power Indicator

    No

  • Proximity Sensor

    No

  • Humidity Sensor

    No

Software Features

Jump to...
  • Gapless Playback

    Yes

  • Picture-by-Picture (PBP)

    Yes, 4x

  • Control Manager

    Yes

  • SI Server Setting

    Yes

  • Setting Data Cloning

    Yes

  • Status Mailing

    Yes

  • Auto Set ID

    Yes

  • Scan Inversion

    No

  • Backlight Sync

    No

  • ISM Method

    Yes

  • Group Manager

    Yes

  • Booting Logo Image

    Yes

  • Network Ready

    Yes

  • RS-232C Sync

    Yes

  • W/B Setting by Grayscale

    No

  • webRTC (Real Time Communication)

    Yes

  • Video Tag

    Yes, 4x

  • PM mode

    Yes

  • Picture-in-Picture (PIP)

    Yes

  • Local Network Sync

    Yes

  • Screen Rotation

    Yes

  • Smart Energy Saving

    Yes

  • Tile Mode Setting

    Yes (Max. 15 x 15)

  • External Input Rotation

    Yes

  • No Signal Image

    Yes

  • SNMP

    Yes

  • Brightness Compensation

    No

  • Local Contents Scheduling

    Yes

  • HDMI-CEC

    Yes

  • USB Plug & Play

    Yes

Environmental

Jump to...
  • Operation Humidity

    10% to 80%

  • Operation Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

OPS Compatibility

Jump to...
  • OPS Power Built-in

    No

  • OPS Compatible

    Yes

General

Jump to...
  • Color

    Black

  • Bezel Width (Off Bezel)

    T/R/L: 8.4mm, B: 14.4mm

  • Tilt (Face Down)

    Yes (-30 Degree )

  • Tilt (Face Up)

    No

  • Conformal Coating (Power Board)

    Yes

  • Handle

    No

  • VESA Standard Mount Interface

    200 x 200mm

  • Overlay Touch Compatibility

    No

  • Smart Calibration

    No

  • Power Protection

    No

  • Direct Sunlight

    No

  • Onscreen Display Languages

    Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, Turkish

  • Country of Origin

    China

  • Dimensions (W x H x D)

    With LG Logo: 37.9 x 22.4 x 1.6" (962.5 x 568 x 39.9mm)
    With Stand: 37.9 x 24.1 x 11.4" (962.5 x 613.1 x 290mm)

  • Weight

    Without Stand: 24.7 lbs (11.2kg)
    With Stand: 26 lbs (11.8kg)

  • UPC Code

    195174033777

About LG UH5J-H

High Haze 4K UHD Digital Signage
Enjoy crisp, clear content on this 4K UHD Digital Signage that features a high haze surface treatment. This user friendly display can be set up portrait or landscape depending on your needs. The IPS display allows for wide viewing angles making it great for any space whether it is retail or corporate offices.

A Bright View
With brightness of 500 nit, this 4K UHD signage clearly deliver content to attract public attention, making it a great display for marketing in airports, retail, shopping malls & more.

High-Performance with webOS
Built-in Quad Core System on Chip (SoC) can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive graphical user interface (GUI) and access to an advanced ecosystem of third-party development applications.

Compatible with AV Control System
This 4K UHD signage has been certified Crestron Connected for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.

Conformal Coating
It can be hard to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on the power board helps reduce these risks.

IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation

LG UH5J-H Features

  • The 16:9 4K Ultra HD display shows crisp, clear images & in portrait or landscape
  • 500 nits brightness & 25% (Haze) surface treatment lets your message been seen
  • webOS 6.0 Signage Platform, SuperSign CMS Compatible
  • Certified Crestron Connected and Cisco Certified
  • Lasts up to 50,000 hours and can be on 24/7
  • Energy Star Certified

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience stunning visuals with 4K Ultra HD resolution on this 43-inch commercial display.
  • Showcase vibrant digital signage content thanks to the brilliant 500 nits IPS panel.
  • Enjoy seamless content delivery with versatile connectivity options, including multiple HDMI and DisplayPort inputs.
  • Operate continuously with 24/7 durability, perfect for demanding commercial environments.
  • Manage content effortlessly with the integrated webOS 6.0 smart platform and built-in Wi-Fi.
  • Achieve flexible installations with both portrait and landscape orientation support for your commercial monitor.

What's in the box:

  • LG UH5J-H 43" 16:9 4K Ultra HD Digital Signage Commercial Smart IPS LCD Display
  • Remote Controller with Batteries
  • Power Cord
  • Phone to RS-232C Gender
  • User Manual
  • LG 3 Year Limited Warranty
