This item is no longer available.
UNI FAN TL LCD - Visualized Breeze, Elevated Style
• Slide In Daisy-Chain Style
• 1.6" LCD Screen
• Stable Motor
• Enlarged Infinity Mirror
• Dual Zone Lighting Effects
• L-Connect 3 Software
Empower With Customizable Display
The world's 1st PC case fan with a LCD screen, which can be personalized and controlled using L-Connect 3.
• Power PCIe Cable
• 500 (TYP) nits Brightness
• SRGB-24-bit Full Color
• 400 x 400 Resolution
• IPS Type Display
Performance Detail at a Glance
Monitor the temperature and loading of your CPU and GPU, as well as the fan speed, instantly with built-in hardware monitor dashboards on the screen.
Unique Style

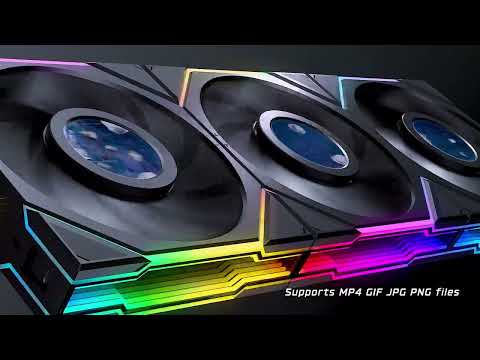

Elevate your system's style by uploading your own personalized MP4 / GIF / JPG / PNG.
Next Generation of UNI FAN
Building on the design success of the UNI FAN series interlocking system, the UNI FAN TL series takes clutter-free setups to the next level.
Durable Daisy-Chain Solution
Experience a hassle-free setup with the slide-in daisy-chaining mechanism, securely holding the fans in place and ensuring a snug fit for easy configuration.
Seamless Connection
A single cable is all you need to connect a group of up to 3 TL LCD fans to the controller, which supports a maximum of 7 TL LCD fans per controller, with a group of 3 on each port (up to 16 TL+TL LCD fans in total).
To operate 8 to 12 TL LCD fans, please use 2 controllers simultaneously. Note that L-Connect 3 doesn't support more than 13 TL LCD fans.
Well-Adapted for all Configurations
The interlocking key at the end of TL LCD fans is removable for enhanced compatibility and less interference with other components.
Stable Operation
UNI FAN TL LCD is engineered for stable fan blade operation, ensuring efficiency at a low noise level.
Metal Bearing Shell
To securely hold the impeller to the shaft
Magnetic Rubber Ring
To provide extra support for fan operation
Stator
To provide a rotating magnetic field that generates momentum
Brazz Nut
To Prevent oil leaks
Fluid Dynamic Bearing (FDB)
To effectively reduce the internal friction for improved durability
Shaft And Copper Base
To ensure fan blade stability during operation
Thicker Fan Frame
28mm thick fan frame helps deliver more airflow and static pressure
Rubber Pads
To reduce vibrations and maintain extremely low noise levels
Breeze Your System
Redefining PC cooling experience with a fan that doesn't compromise on thermal control, all while offering a personalized screen for a touch of individuality.
Customizable Fan Speed
Able to set different fan speeds for each fan cluster to optimize different scenarios of use providing flexibility for radiator or case fan needs with L-Connect 3.
Sophisticated Continuous RGB Lighting
Each UNI FAN TL fan has 26 LEDs with an elegant side diffuser on the 2 sides of the fan frame that wraps around the edges of the anti-vibration pad.
Dazzle With Infinity Mirror
Illuminate your setup with the UNI FAN TL's enlarged infinity mirror (30% larger than UNI FAN SL-INF on the side) on both sides of the frame, showcasing clear and 0.7mm gap multi-layer lighting effects.
Individual Lighting Effects
Easily customize different lighting effects on the two sides of the LED strips using L-Connect 3 for a unique setup. You can also sync your TL fans and apply the same lighting effect you like across all of them.
Smooth Appearance
Cover the screws with anti-vibrate rubber pads for a seamless and uninterrupted aesthetic appeal.
Seamless Software
L-Connect 3 offers complete control over the UNI FAN TL series, including the lighting effects, fan speed, and LCD screen.
Two Fans, One Controller
UNI FAN TL and TL LCD share the same controller, enabling the connection of up to 16 TL and TL LCD fans simultaneously, with a maximum of 7 TL LCD fans.
Fan Group Signal
Each port supports a maximum of 10 TL fans or 3 TL LCD fans
Power PCIe Cable
Power up the connected fans
USB Cable
Plug directly into a motherboard 9-pin USB header
5V ARGB / 4 PIN PWM Cable
Required for motherboard sync function
