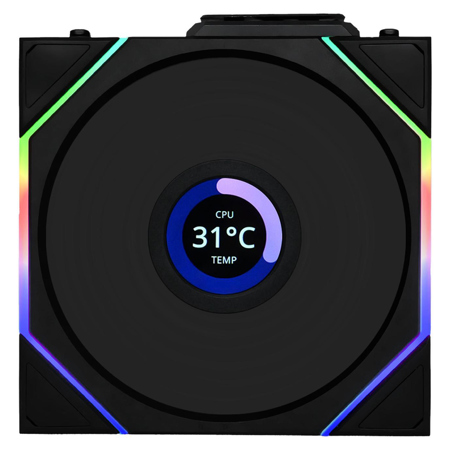

Lian-Li UNI FAN TL Wireless 1.6" LCD 120mm ARGB Case Fan, Black

SKU: LI12TLLCD1W1 MFR: 12TLLCD1W1B
$49.99
Earn VIP Reward Points

Key Features

  • Enhance PC cooling with this Lian-Li 120mm ARGB case fan for optimal performance.
  • Customize your rig with a vibrant 1.6" LCD, displaying real-time system info.
  • Enjoy near-silent operation at 27 dBA max, thanks to the fluid dynamic bearing.
  • Wirelessly control fan speed (0-1900 RPM) & ARGB via the optional controller.
  • Experience superior airflow (62 CFM) and static pressure (2.9 mmH2O) for cooling.
  • Built with durable PBT & PA66 materials, this Lian-Li fan ensures reliability.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.99

2 Year

$5.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lian-Li UNI FAN TL Wireless Specifications

  • Color

    Black

  • Material

    PBT&PA66

  • Number of Fans

    1

  • Controller

    No

  • Connector Type

    1x 4-PIN PWM + 9-PIN USB

  • Fan Speed

    0,350-1900 RPM

  • Max. Air Pressure

    2.9 mmH2O (Maximum)

  • Max. Airflow

    62 CFM (Maximum)

  • Acoustic Noise

    27 dBA (Maximum)

  • Input Power

    7.08W

  • Bearing Type

    Fluid Dynamic Bearing (FDB)

  • Operate Voltage

    DC12V & 5V

  • Dimensions

    4.72 x 4.88 x 1.10" (120 x 124 x 28mm)

  • UPC Code

    840353048010

About Lian-Li UNI FAN TL Wireless

Revolutionary Wireless ARGB Fan
The UNI FAN TL LCD Wireless feature LIAN LI's innovative wireless sync technology, utilizing a 2.4GHz wireless signal to control lighting effects and fan speed to further improve the PC building experience while delivering efficient cooling, dazzling lighting, and quiet operation. (L-Wireless Controller Sold Separately).

Elevate the PC setup with the UNI FAN TL wireless LCD version. 120mm fans are available in Black meeting all kinds of needs.

Wireless transmission, easy installation
By adopting 2.4GHz wireless technology, the UNI FAN TL Wireless Series eliminates the need for traditional hub connections, significantly simplifying the installation process and enhancing user experience.

Innovative L-Wireless Controller (Sold Separately)
Instead of using the traditional connection method, the L-Wireless Sync Controller controls both lighting and fan speeds without connecting the cable to the controller. The fans can be powered via a 4-PIN fan header on the motherboard or a SATA power cable. For the LCD versions, a USB 2.0 9-PIN cable connection to the motherboard is required to set the LCD screen.

The LCD versions use different receivers. For mixed clusters, use the LCD version receiver. Each fan group requires connection to either a 12V PWM header or a 1-to-3 SATA splitter cable.

• UNI FAN TL LCD Wireless: PWM cable powers the LED and motor; USB cable transmits LCD signals and provides LCD power
• The cable length can be shortened with the organizer on the receiver

The transmission logic between the USB port and the LCD has been optimized, enabling the use of an additional USB splitter cable to the USB 2.0 or 3.0 port on the motherboard:

• USB splitter cable without SATA for additional power (e.g., LIAN LI USB 2.0 1-to-3 HUB): Supports up to 6 TL LCD wireless fans
• USB splitter cable with SATA for additional power (e.g., LIAN LI Edge hub): Supports up to 9 TL LCD wireless fans
• Furthermore, a single motherboard can support up to 20 UNI FAN TL LCD wireless fans

One Controller For All
The L-Wireless Controller supports UNI FAN TL Wireless. The L-Wireless Controller (Sold Separately) can transmit signals to up to 10 channels. Each group of wireless fans occupies one channel, while each Strimer Wireless uses an additional channel. In the future, the L-Wireless Controller will also be compatible with more LIAN LI wireless devices. With this controller, you can create a stunning and streamlined LIAN LI ecosystem that combines beauty and simplicity!

Personalized Remix, Style On Display
UNI FAN TL LCD wireless now can be mix-matched into a group, offering versatile configurations and empowering creativity.

Practical and stylish LCD screen
The UNI FAN TL LCD Wireless carries forward the legacy of the world's first LCD-equipped fan. It features a 1.6" circular LCD screen with 60Hz refresh rate (upgraded from 30Hz) that integrates seamlessly with LIAN LI's L-Connect 3 software, offering exceptional customizability.

• 1.6" LCD
• 60HZ Refresh Rate
• 400x400 resolution
• 500 nits brightness
• sRGB 24-bit
• IPS TYPE DISPLAY

Performance Detail At A Glance
Monitor CPU and GPU temperature and load with new built-in animated hardware sensors displayed directly on the screen. For clusters of 3 LCD fans, multiple data points can be displayed simultaneously.

Upload your style
Achieve a completely personalized system style by uploading MP4/GIF/JPG/PNG files to customize the LCD screen.

Combination of Performance and Aesthetics
The UNI FAN TL Wireless uses LCP material for fan blades, a copper center shaft, and FDB bearings with 9 tightly aligned blades (0.65mm gap), ensuring a striking look without compromising on performance.

Sophisticated Continuous RGB Lighting
Each UNI FAN TL Wireless series fan has 26 LEDs with a wide infinity mirror on the 2 sides of the fan frame that wraps around the edges of the anti-vibration pad.

Seamless Software
Able to set different fan speeds for each fan cluster to optimize different scenarios of use providing flexibility for radiator or case fan needs with L-Connect 3. L-Connect 3 offers a variety of features, such as grouping, naming, and sorting fans for more intuitive management, providing diverse functionality and user-friendly design.

Lian-Li UNI FAN TL Wireless Features

  • L-Wireless Sync supported (required for use)
  • UNIFAN interlocking system for streamlined cable management
  • Two light zones for an enhanced visual experience
  • Full software control for fan speed, lighting effects, and LCD screen display via L-Connect 3
  • Noise-optimized and performance-oriented fan
  • LCP (liquid crystal polymer) fan blades are used for tight tolerance

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Enhance PC cooling with this Lian-Li 120mm ARGB case fan for optimal performance.
  • Customize your rig with a vibrant 1.6" LCD, displaying real-time system info.
  • Enjoy near-silent operation at 27 dBA max, thanks to the fluid dynamic bearing.
  • Wirelessly control fan speed (0-1900 RPM) & ARGB via the optional controller.
  • Experience superior airflow (62 CFM) and static pressure (2.9 mmH2O) for cooling.
  • Built with durable PBT & PA66 materials, this Lian-Li fan ensures reliability.

What's in the box:

  • Lian-Li UNI FAN TL Wireless 1.6" LCD 120mm ARGB Case Fan (Black)
  • USB 9-Pin & PWM 4-Pin Cable with Wireless Receiver
  • (L-Wireless Controller Not Included)
  • Lian-Li 3 Year Limited Warranty
