Line 6 HX Stomp XL Guitar Multi-Effects Floor Processor

HX Stomp XL.

HX Stomp, Expanded.

The HX Stomp XL amp and effects processor delivers HX modeling in a performance-ready pedal with eight capacitive-touch footswitches. The same SHARC DSP chip found in Helix enables it to run up to eight processing blocks simultaneously, and the footswitches let you access and control those blocks in powerful ways.

Connections.

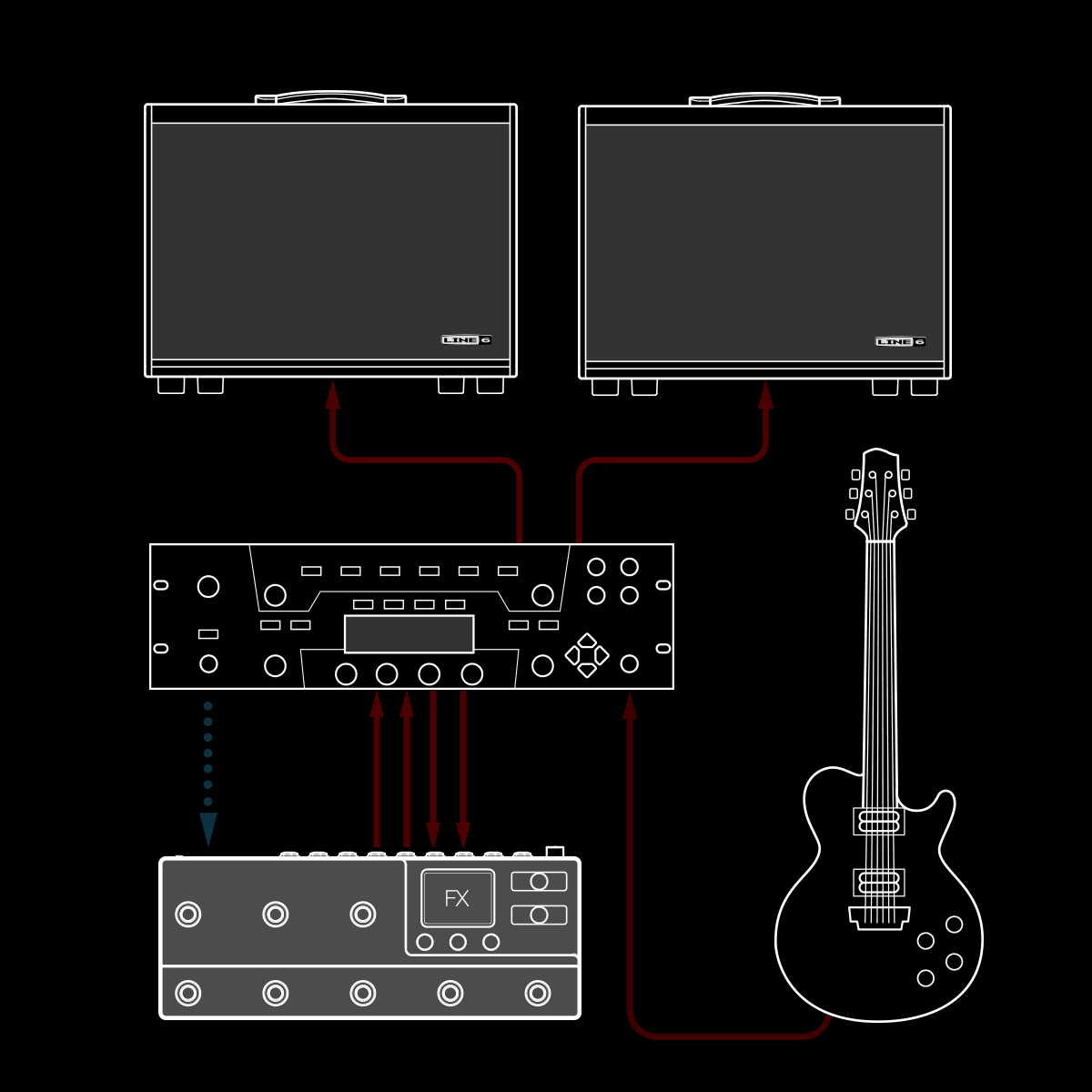

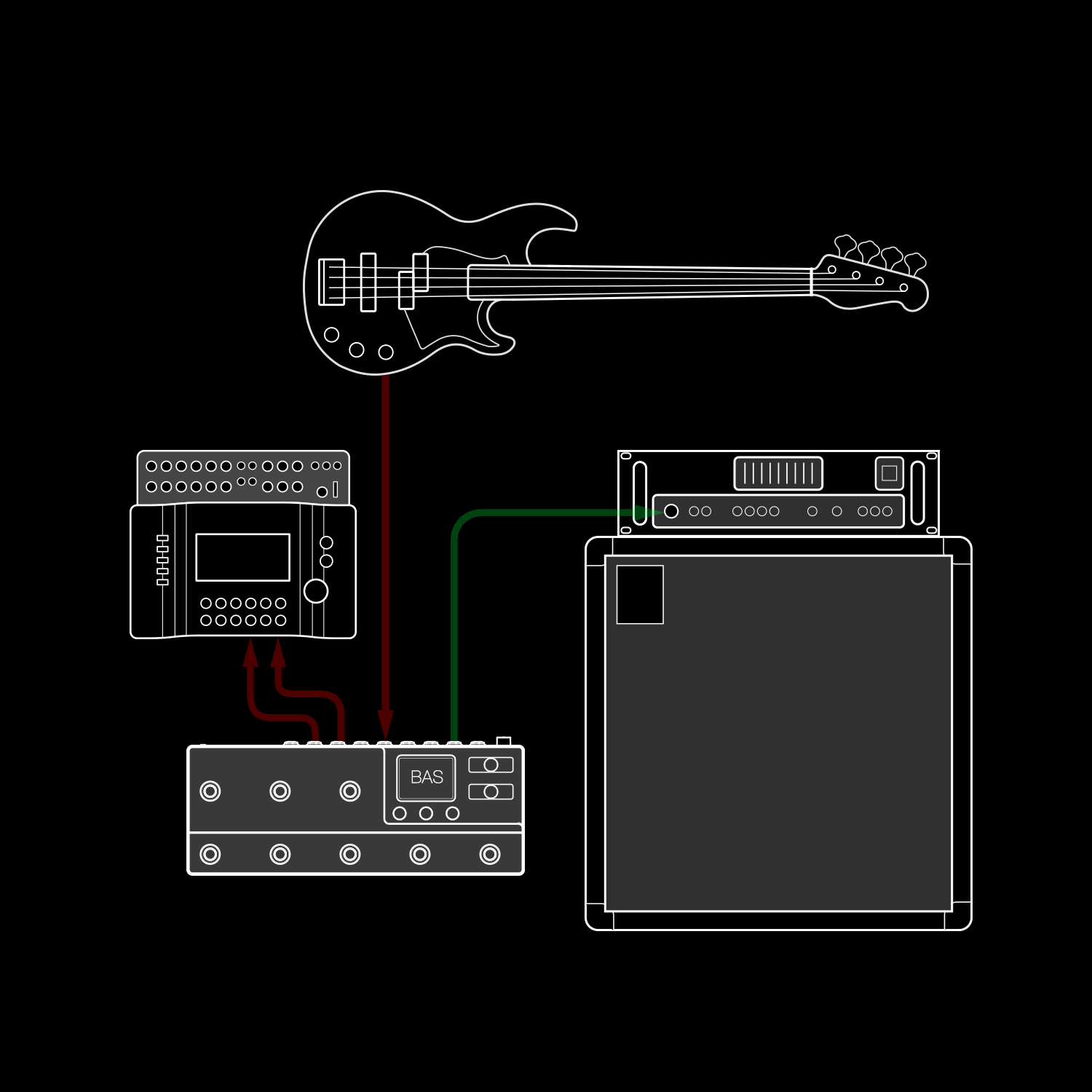

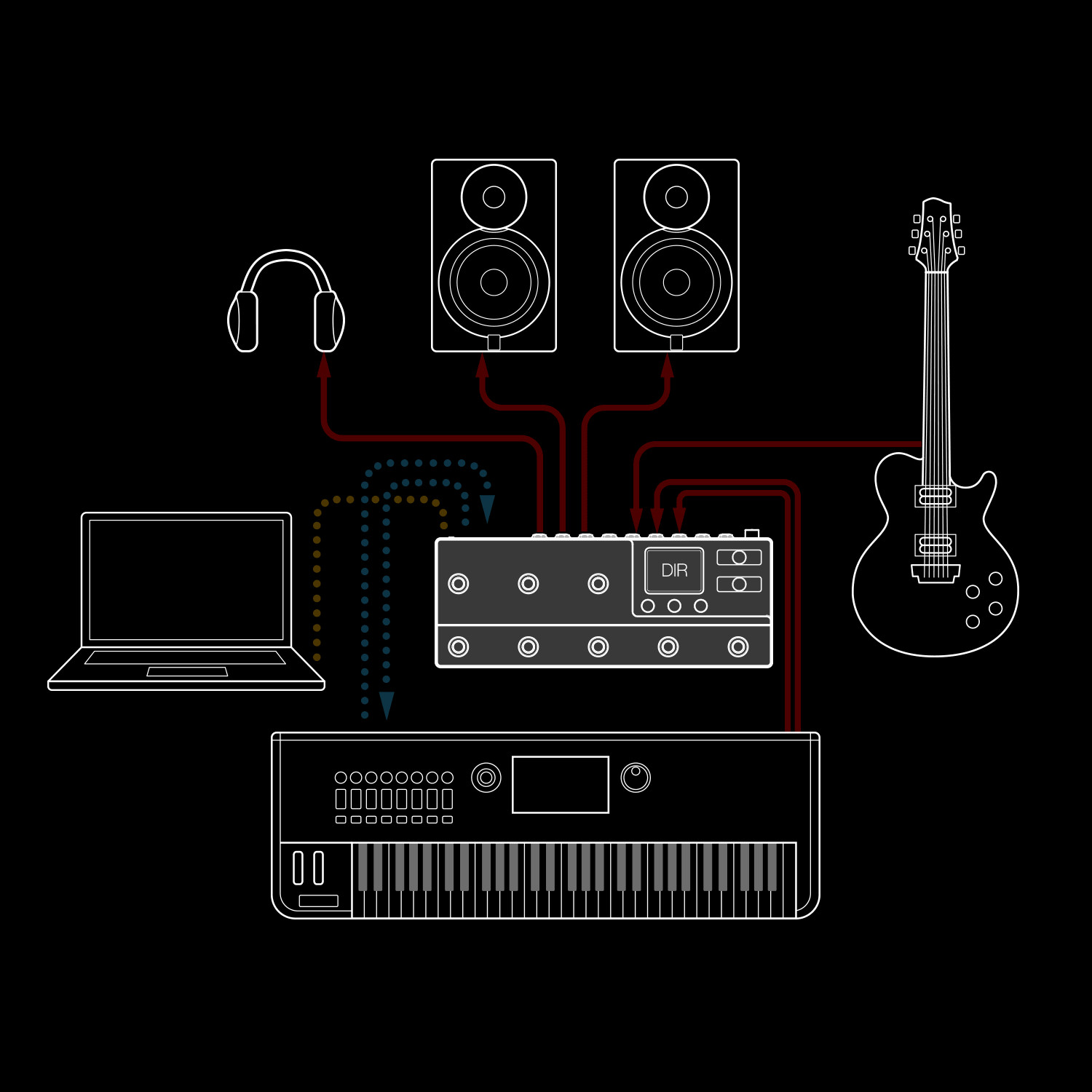

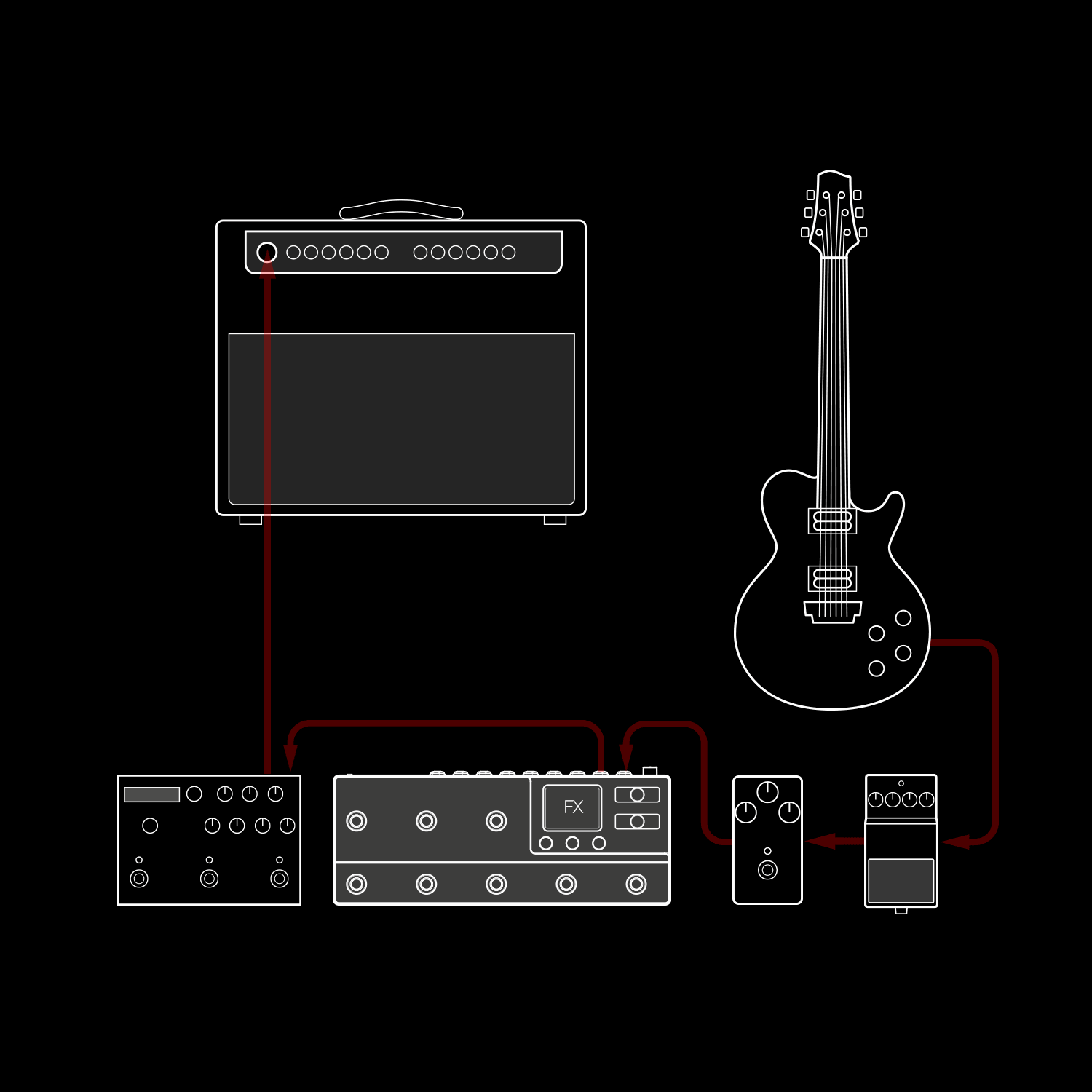

Here are just a few of the many ways to connect HX Stomp XL to other gear:

The Power Of Eight.

The HX Stomp amp and effects processor was already the leading device in its class-but with five additional footswitches, HX Stomp XL greatly expands its real-time performance capabilities. Use HX Stomp XL as a "super stompbox," a backup or travel rig, an add-on tone expander with other modelers, a professional-quality audio interface, or even a complete guitar or bass rig. The HX Stomp XL processor's Command Center functionality, MIDI capabilities, and external expression pedal jack also make it an ideal master controller for your entire setup.

Authentic Modeling
HX modeling digitally mirrors the circuitry of analog amps and effects, component by component. Every model sounds and feels realistic, including such notoriously hard-to-model devices as vintage fuzz and modulation effects. Simply put, the HX Stomp XL amp and effects processor nails the analog vibe.

Intuitive Operation

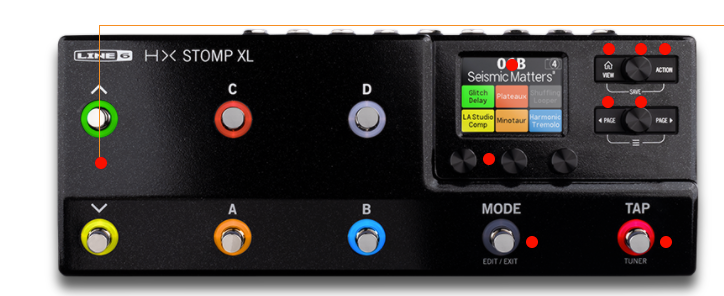

Despite its compact size, HX Stomp XL is easy to use, thanks to its simple but powerful controls, color LCD, and eight capacitive-touch footswitches with color-coded LED rings.

Pristine Audio Quality
An industry-leading 123dB of dynamic range provides tremendous depth and ultra-low noise. High-quality components guarantee unadulterated audio from inputs to outputs, whether feeding an amp or powered speaker, going direct to FOH, or recording in a professional or home studio.

Maximum Flexibility

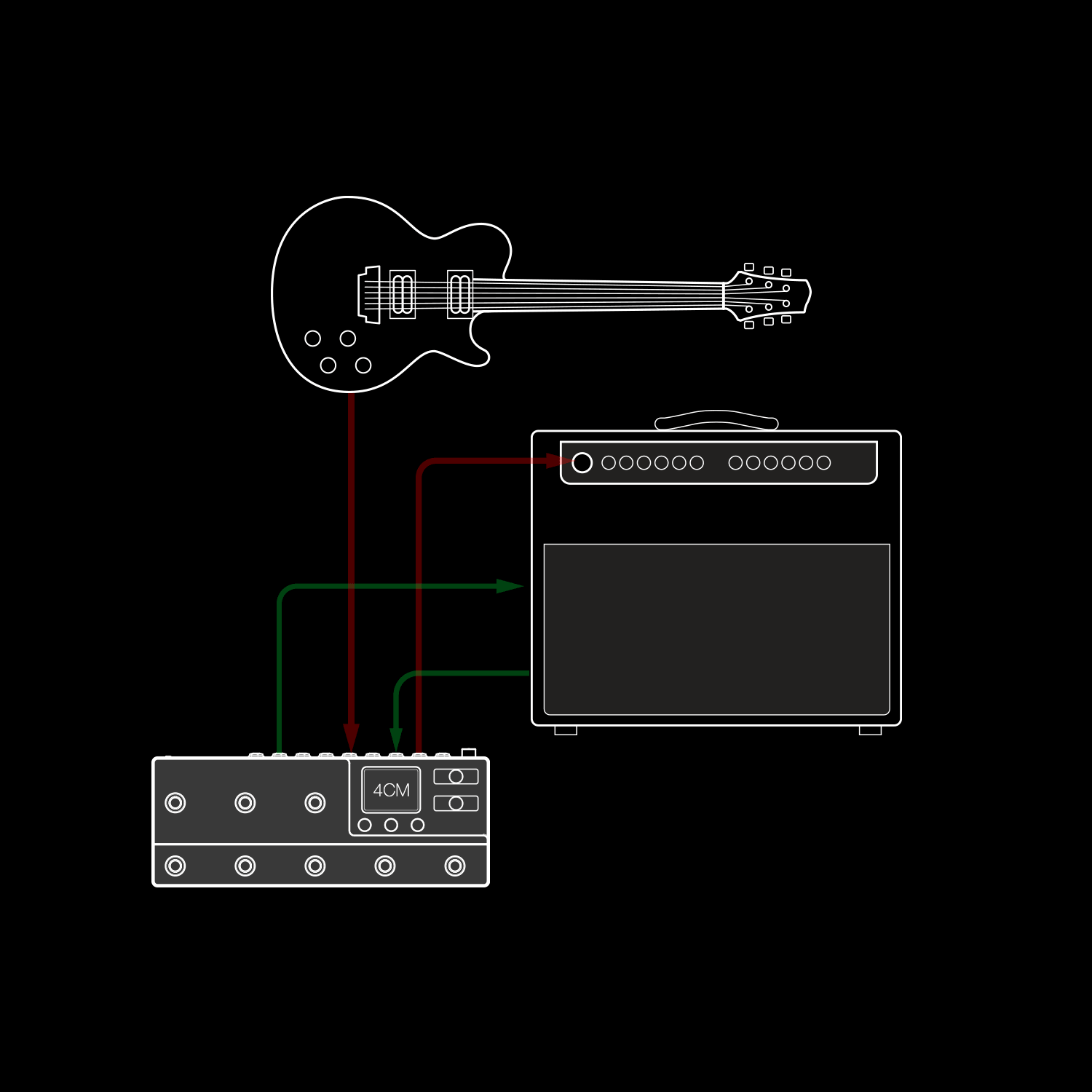

Highly configurable I/O permits such routing schemes as simultaneously feeding an amp and a FOH mixer, employing 4-Cable Method, and re-amping in the studio. External control via MIDI and optional expression pedal or footswitch provide additional flexibility.

• The power of HX Stomp-now with eight footswitches
• Exceptional sound quality with 123dB of dynamic range
• Features the same SHARC DSP chip and HX Modeling as Helix processors
• Eight capacitive-touch footswitches with color-coded LED rings
• More than 300 HX and legacy amps, cabs, and effects-up to 8 simultaneous
• Supports third-party impulse responses (IRs)
• World-class polyphonic pitch-shifting effects
• Split/parallel signal paths for maximum routing flexibility
• Dual expression pedal/footswitch input for greater creative control
• Stereo effects loop (mono/stereo TRS send + stereo returns)
