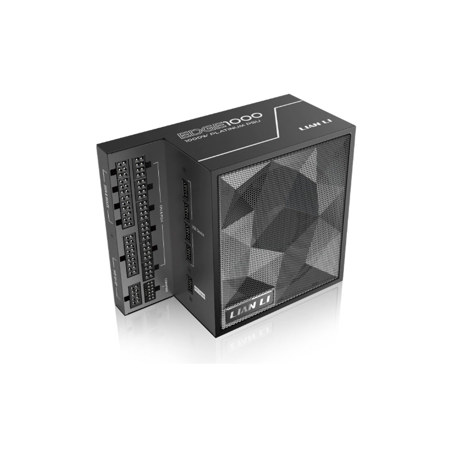

Lian-Li EG1000 1000W 80+ Platinum Certified Fully Modular ATX Power Supply Unit Black

SKU: LIEG1000BK MFR: EG1000 BLACK
$161.50
$172.50
Save: $11 (6%)
Earn VIP Reward Points

Key Features

  • 1000W power capacity ideal for high-performance computing systems
  • 80+ Platinum certification ensures superior energy efficiency
  • Fully modular design for easy cable management and improved airflow
  • Supports stable and reliable power delivery for demanding components
  • Perfect for gaming rigs, content creation workstations, and high-end servers
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the benefit of the 80+ Platinum certification in the Lian-Li EG1000 PSU?

The 80+ Platinum certification ensures exceptional energy efficiency, reducing power wastage and lowering operating costs, while also helping your system run cooler and quieter.

How does the fully modular design of the Lian-Li EG1000 PSU improve my PC build?

The fully modular design allows you to connect only the cables you need, reducing clutter and improving airflow within your PC case, which enhances overall system performance.

Is the Lian-Li EG1000 PSU suitable for high-performance gaming systems?

Yes, the Lian-Li EG1000 PSU is ideal for high-performance gaming systems, providing a robust 1000W output to support high-end graphics cards and multi-core processors.

What kind of components are used in the Lian-Li EG1000 PSU?

The Lian-Li EG1000 PSU is built with premium components that ensure superior performance, durability, and reliability for demanding computing environments.

Shopper : Why Did You Choose This?FAHIM A : I want to build in the Lancool 207 case, which has some cable management concerns which should hopefully be alleviated by this PSU design.KENNETH S : Extra USB ports built into the PSUMATTHEW S : Cable managementBRADLEY S : video review

Reviews about this item

Review Summary

Lian-Li EG1000 1000W 80+ Platinum Certified Fully Modular ATX Power Supply Unit Specifications

  • Available Colors

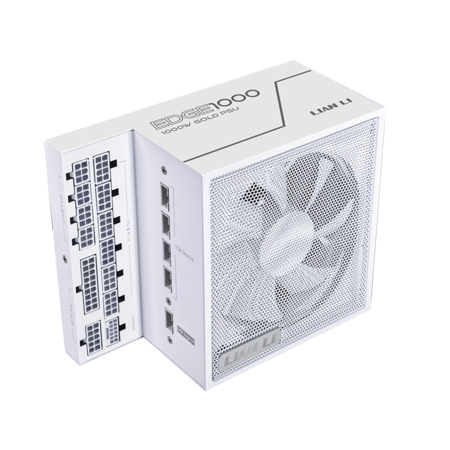

    Black, White

  • Material

    Steel, Plastic

  • Power Supply Design

    Fully modular

  • Form Factor

    ATX 3.1

  • Certification

    80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM

  • Max. DC Output

    1000W

  • Combined

    +3.3V & +5V: 120W
    +12V: 996W

  • Input Voltage

    100-240Vac

  • Input Frequency Range

    12-6A 50-60Hz

  • PFC

    Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz

  • Efficiency

    92.36% MAX

  • Protective Circuit

    OCP/OVP/OTP/OPP/SCP/UVP

  • Connectors

    1x 24/20-Pin motherboard connector (500mm) x1pcs
    1x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs
    1x 8/6+2 Pin PCle connector (550m m) x4pcs
    1x 12VHPWR connector (550mm) x 1pcs
    4x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs
    4x SATA connector (400mm-150mm-150mm-150mm) x1pcs
    4x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
    4x Y Type SATA connector (400mm-125mm*2) x1pcs

  • Connectors (Contd.)

    USB 9pin - USB*9pin connector (350mm) x 1pcs
    USB 9pin -Type A connector (550mm) x 1pcs

  • Fan Type

    120mm FDB Fan

  • Fan

    2000RPM

  • Fan Noise Level

    25.96dBA

  • Dimensions (D x W x H)

    7.16 x 3.38 x 5.9" (182 x 86 x 150mm)

  • UPC Code

    840353045989

About Lian-Li EG1000 1000W 80+ Platinum Certified Fully Modular ATX Power Supply Unit

Become the powerhouse behind your high-performance computing setup with the Lian-Li EG1000 1000W 80+ Platinum Certified Fully Modular ATX Power Supply Unit (PSU). Designed to cater to the rigorous demands of today's advanced systems, this PSU delivers a robust 1000 watts of power, ensuring your components receive the stable and reliable energy they need to perform at their best.

The 80+ Platinum certification highlights its superior energy efficiency, significantly reducing power wastage and lowering your overall operating costs. This efficiency not only benefits your wallet but also contributes to a greener environment by minimizing energy consumption.

The fully modular design of the Lian-Li EG1000 allows for a clean and organized build, enabling you to connect only the cables you need. This not only improves airflow within your case but also simplifies installation and maintenance.

Whether you're building a gaming rig, a content creation workstation, or a high-end server, the Lian-Li EG1000 1000W PSU is engineered to provide the reliable power and efficiency your system demands.

Lian-Li EG1000 1000W 80+ Platinum Certified Fully Modular ATX Power Supply Unit Features

  • The power for dual chamber chassis
  • L-Shaped design for cable connection direct access
  • Features a USB expansion hub to support multiple controllers
  • 80 Plus Platinum efficiency
  • Feature sleeved cable with cable combs

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • 1000W power capacity ideal for high-performance computing systems
  • 80+ Platinum certification ensures superior energy efficiency
  • Fully modular design for easy cable management and improved airflow
  • Supports stable and reliable power delivery for demanding components
  • Perfect for gaming rigs, content creation workstations, and high-end servers

What's in the box:

  • Lian-Li EG1000 1000W 80+ Platinum Certified Fully Modular ATX Power Supply Unit
  • Lian-Li 10 Year Limited Warranty
