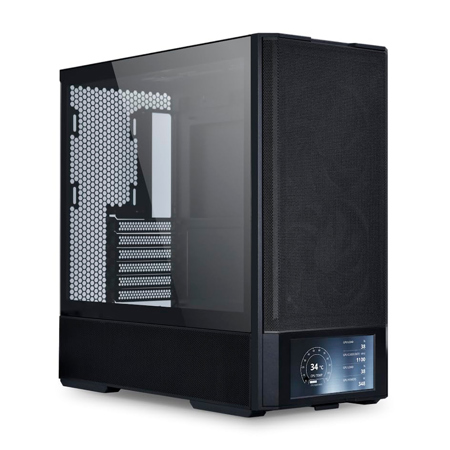

Lian-Li LANCOOL 207 Digital Tempered Glass M-ATX Mid-Tower Computer Case with 6" Display, Black

The LANCOOL 207 Digital adds a playful touch to the LANCOOL 207, featuring an integrated LCD screen for real-time system monitoring and customizability - all within a sleek and compact M-ATX chassis.

• 6-inch LCD Screen
• ATX Motherboard
• Front Side PSU
• 4x Performance Fans pre-installed
• Direct GPU Airflow
• Cable Management Friendly
• 360mm Radiator Support
• GPU Anti-Sag

ATX Layout Re-Invented
Though compact in size, the LANCOOL 207 Digital offers remarkable compatibility, supporting ATX motherboard, a 360mm radiator, ATX PSU, and GPU up to 375mm long, all within its 45.5L chassis.

6-Inch Lcd Screen
This 6" LCD screen features a 60Hz refresh rate, a 720x1600 resolution, and 500 nits of brightness. It offers extensive customization options and can display a wide range of hardware information in real time.

Real-Time Performance, Personalized Display
Choose from nearly 30 built-in templates for a quick and polished setup.

Further Customization with Theme Info / Modular
For a fully personalized experience, L-Connect 3 features a powerful built-in canvas tool that lets you design your display your way. Freely arrange modular elements, craft a layout that fits your style, and even upload your favorite images to make your setup truly one of a kind.

The screen can also function as a 60Hz secondary display, perfect for monitoring or multitasking. Users can easily toggle the secondary screen function ON or OFF directly within the L-Connect 3 interface.

Secondary Screen Function
The screen is also allowed to be as a secondary screen (60hz refresh rate) by L-connect 3 control.

Fan Speed Dashboard Function
The screen function also includes fan speed dashboard. Fans can be custom-named for easy identification, with clearly displayed positions for quick recognition. Real-time RPM and temperature source readings enable precise monitoring and fine-tuning of cooling performance.

Space-Saving Innovative Layout
The LANCOOL 207 Digital's unique offset motherboard tray provides a space-efficient solution while improving compatibility and airflow.

• Supports standard ATX (max width 244mm) / M-ATX/ ITX motherboards
• Supports graphics cards up to 375mm long and CPU coolers with heights up to 180mm

Easy Access Front-Mounted PSU
The PSU is strategically placed at the front, with connector ports facing outward for convenient cable connection. Additionally, a PSU power adapter extension cable is provided for rear power access.

The LANCOOL 207 offers PSU mounting with the fan oriented either upward or downward.

Optimal Airflow Design
Besides being designed with comprehensive mesh panels on the top, front, and side bottom, the LANCOOL 207 digital comes pre-installed with four high-performance fans for superior out-of-box cooling.

4 Pre-Installed Performance Fans
The front top fan provides more direct airflow with a shorter depth.

• Size: 140 x 140 x 30mm
• Speed: 450 - 1800 RPM
• Airflow: 109.47 CFM
• Static Pressure: 2.71mm H20
• Noise: 34 dBA

The two bottom fans are placed directly under the GPU for optimal cooling efficiency.

• Size: 120 x 120 x 25mm
• Speed: 500 - 1950 RPM
• Airflow: 71.1 CFM
• Static Pressure: 1.99mm H20
• Noise: 30.81 dBA

The PPLP Lab testing shows the Lancool 207 Digital is in the top-tier of their ranking, which deliver outstanding thermal performance. This earned it the Level-S Chassis Performance award for exceptional thermal management.

GPU Anti-Sag Bracket Support
The LANCOOL 207 Digital includes an adjustable GPU anti-sag bracket, offering extensive adjustability to fit GPUs of all sizes.

To provide power and signal to the screen, users can either connect to a 9-pin port on the motherboard or use an extension cable to a Type-A port.

For easier setup, the chassis's rear panel features a dedicated cutout, allowing for clean and convenient cable routing when connecting the screen.

For swapping fans, screws for 25mm and 28mm thickness fans are included in the case.

Seamless Connectivity
The LANCOOL 207 Digital's top-mounted I/O panel offers easy access to essential ports.

Efficient Cable Management
With the innovative layout, the well-organized cable management system is mostly at the front of the 2nd chamber.
