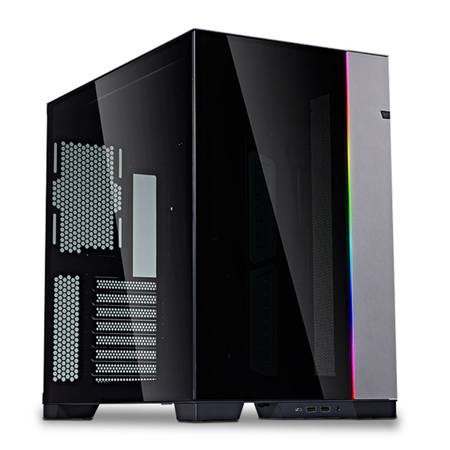

Lian-Li O11 Dynamic EVO ATX Mid-Tower Tempered Glass Computer Case, Black

Keep cool with the O11 Dynamic series all-new design and express the preferable configuration.

• Reversible Chassis
• Mesh Panel Integration
• Flexible Configuration
• Optimize Cooling Support
• 9 Drives Capacity
• Cable Management Friendly
• German Engineered

Build With The Finest Materials

The Modern Black
The O11 Dynamic series classic tinted glass and brushed aluminum panel are once again combined in proper proportion.

• Brushed Aluminum
• Black Coated Mesh Panel
• Tinted Tempered Glass

Versatile Orientation
With only a few steps, the O11D EVO can be flipped in reverse mode to experience a seamless front and side tempered glass showroom view on the right side of the chassis.

Exquisite, Yet Functional
Following the style of the O11 Dynamic series, the aluminum panels feature an updated fine mesh which provides an optimal ratio of airflow and dust filtering.

Innovative and Flexible Configuration
Featuring a modular design, the O11D EVO offers many configuration potentials when making use of optional kits, both for air cooling and water cooling.

Air Cooling

Unrestricted Airflow
The more direct the airflow, the better the cooling performance. Thanks to the upright GPU kit and the front mesh kit, which makes the addition of 3 extra fans at the front possible, the O11D EVO can provide powerful and direct airflow to the GPU and the CPU.

Upgraded Vertical Gpuairflow
The upgraded vertical GPU kit provides more room for bottom-mounted fans and radiators to increase the cooling capability and efficiency of the O11D EVO. Users can either mount the GPU vertically at the lower position which provides 50mm of clearance at the bottom of the chassis, or the upper position for 90.5mm of clearance.

Custom Water Cooling

Supreme Thermal Control
With the upright GPU kit, users can move their water-cooled GPU next to the motherboard. This opens up the main chamber of the chassis, allowing simpler and more efficient tube runs to reach the components, and creating a restriction-free chimney-style airflow that allows the top and bottom radiators to perform more effectively.

Spacious Cooling Support
The O11D EVO features sufficient space to accommodate 3x 360mm radiators, and up to 10 fans.

Massive Storage Capacity
Multiple easily accessible storage mounting points are provided to support up to 9x SSDs or 6x HDDs + 3x SSDs.

• Side Drive Tray: 2.5" SSD x 4 or 3.5" HDD x 2
• Cable Management Bar: 2.5" SSD x 2
• Drive Cage: 2.5" SSD x 3 or 3.5" HDD x 2 + 2.5" SSD x 1
• Bottom Fan Bracket: 2.5" SSD x 4 or 3.5" HDD x 2

Mounting points for a 60mm fan are provided on the hard drive cage, located in the second chamber, to improve the temperature of hard drives. The same location can be used to mount a fan hub.

Clean Look
The O11D EVO keeps the front panel as clean as possible with a multi-directional power button that can be pressed from both the front and the side of the chassis.

Personalized Argb Lighting Strip
The front panel LED strip features 7 built-in lighting effects which can be controlled via the M button. An 8th mode is available to enable motherboard software synchronization or L-Connect control.

Turn off the LED strip : Press M button for 3 seconds in 8th mode.

Friendly Building Process Easily Removable Panels
The new mechanism to mount the side panels simplifies the process to reach the interior of the case by eliminating the need to first open the top panel.

Struggle-Free Fan Brackets
While each fan bracket features a quick-release design, they can be fixed to the chassis via a straightforward process.

The side bracket can be oriented in two ways to provide more clearance for fan/radiator combinations next to the motherboard.

Effortless Cable Management
The O11D EVO optimizes the user's ability to cable manage their system with a dual-chamber design and a removable bracket.

Relocatable I/O Port
At the bottom of the chassis, the I/O module can be relocated to 3 different locations without the use of any tools.

• Location 1: The default mode can be reached from the front
• Location 2: Without any tools needed, the I/O module can be moved to the left side of the chassis
• Location 3: Flip the chassis and change the position of the I/O to the right side for a PC in Reverse Mode
• Location 4: Optional Accessory-Top I/O - Optimized for PC located on the floor, the top I/O additional accessory moves the chassis I/O at the top

Additional I/O Ports (Optional Accessories)
Double the number of USB ports for a total of 4 x USB 3.0 Type-A and 2 x USB 3.1 Type-C with the additional accessory.

Potential For Dual PSU
The drive cage can be removed to make place for a second PSU, or be switched to a lower position.

Anti-Sag Bracket for Perfectly Horizontal GPU
The GPU anti-sag bracket is included for displaying hardware through the seamless front and side tempered glass panels.

GB-001 Compatible with ATX or E-ATX motherboard

In Collaboration with Der8auer
In continuation of the O11D family, LIAN LI has collaborated with Der8auer and the community to finalize the O11D EVO design. Thanks to his contribution, a LIAN LI badge with De8auer's name is provided. Users can place it on the cable management bar in their desired orientation.
