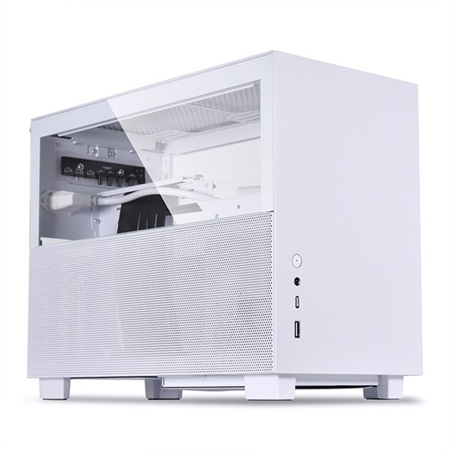

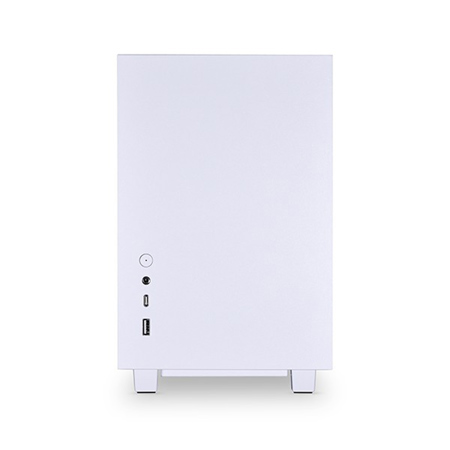

Lian-Li Q58 Aluminum Mini-ITX Computer Case with PCIe 3.0 Riser Card, White

SKU: LIQ58W3

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?NAING L : small, compact, clean aesthetic

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lian-Li Q58 Specifications

  • Color

    White

  • Riser Cable Generation

    PCIe 3.0

  • Material

    Aluminum Exterior
    SPCC Steel Interior
    3.0mm tinted tempered glass side panels

  • MotherBoard Support

    Mini-ITX

  • Fan Support

    SFX PSU Mode:
    Top: 2x 120mm or 2x 140mm
    Bottom: 1x 120mm

    ATX PSU Mode:
    Top: 1x 120mm or 1x 140mm
    Bottom: 1x 120mm

  • Radiator Support

    SFX PSU Mode:
    Top: 1x 240mm or 280mm (Max length 315mm, or max 325mm if remove front SSD tray)
    Bottom: 1x 120mm

    ATX PSU Mode:
    Top: 1x 120mm
    Bottom: 1x 120mm

  • PSU Support

    SFX/SFX-L/ATX (max length 160mm)

  • GPU Length Clearance

    Max. 12.59" (320mm)

  • CPU Cooler Clearance

    Max. 2.63" (67mm)

  • Drive Support

    SFX PSU Mode: 4x 2.5" SSD or 3x 2.5" SSD + 1x 3.5" HDD
    ATX PSU Mode: 2x 2.5" SSD

  • Expansion Slot

    3

  • Input/Ouput Ports

    1x USB 3.0
    1x USB 3.1 TYPE-C
    1x HD Audio

  • Dust Filter

    2x bottom magnetic

  • Dimensions (D x W x H)

    13.5 x 6.7 x 9.8" (342 x 170 x 250mm)

  • UPC Code

    4718466010674

About Lian-Li Q58

The mini-ITX chassis exquisite aluminum craftsmanship guarantees airflow while displaying the components.

• Aluminum Material
• Two-Tone Design
• Modular Design
• Detail Oriented
• Flexible Cooling
• 4 Drive Space
• 3 slots GPU Support
• Cable Management

Swappable Hinge Panels
The dual side split hinged panels feature two 3.0mm thick tempered glass panels and two 1.0mm fine mesh panels that are swappable.

Modular Design For SFX/ATX Power Supply
Compatible for both SFX and ATX PSU, the Q58 comes with an additional bracket to transform from SFX PSU mode to ATX PSU mode.

Details Make Perfection

Build Like A Pro - Avoid Glass Damages
The hinged glass panel features a curve hole at the rear, which allows opening of the panel without removing the thumbscrew, and helps avoid any possible damage caused to the glass by preventing it from leaning on the table.

Effortless Connection - Included LED/Fan Hub
Flip the LIAN LI logo plate at the rear to access the LED/fan hub that supports 3 PWM fan headers and 3 LED headers ( 5V 3 Pin ARGB) without dealing with cable clutter.

Advance Kit - Toolless Hot Swap SSD Tray
Exclusively design for the Q58, a toolless hot swap SSD tray is located at the front top of the case. Simply open the top and front panel to quickly remove or replace the SSD without unplugging any cables.

Flexible Cooling Support
In SFX PSU mode, the Q58 has room for a 280mm AIO. Depending on the mounting configuration employed, the actual supported length of the AIO varies.

Uncompromised Storage Space
The ingenious use of the room in the Q58 allows for 4 storage drive mounting locations. Drives support includes 4 x2.5" SSDs, or 3 x2.5" SSDs and 1 x3.5" HDD.

Compact Yet Spacious GPU support with Riser Cable
The Q58 implements a PCIe 3.0 riser cable to vertically mount a GPU up to 3 slots thick and 320mm long.

USB 3.1 Type C Port
The Q58 I/O ports are located at the front panel and feature a Type C port with efficient transmission speeds.

Comprehensive Cable Management
Several Self-Securing Closure straps and multiple cable tie-down points are provided to tidy up the cables and the bottom fan bracket helps to snuggle the cables into the Q58.

Stop The Dust
Two magnetic dust filters are attached at the bottom of the chassis and the mesh panel to prevents dust from entering the case.

Lian-Li Q58 Features

  • Mini-ITX Aluminum Chassis
  • Features swappable hinged glass and mesh panels
  • Included PCIe 3.0 riser cable for vertically mounted GPU
  • Supports SFX PSU and up to 160mm long ATX PSU
  • Supports up to 325mm long radiator in certain circumstances
  • Supports 4 storage drive mounting locations
  • Cable management friendly with tie points and included LED/ fan hub
  • Fully white-coated frame, silver screws, white USB 3.0, and a white PSU cable extension

Key Features

  • Mini-ITX Aluminum Chassis
  • Features swappable hinged glass and mesh panels
  • Included PCIe 3.0 riser cable for vertically mounted GPU
  • Supports SFX PSU and up to 160mm long ATX PSU
  • Supports up to 325mm long radiator in certain circumstances
  • Supports 4 storage drive mounting locations

What's in the box:

  • Lian-Li Q58 Aluminum Mini-ITX Computer Case with PCIe 3.0 Riser Card (White)
  • Lian-Li 1 Year Limited Warranty
