Line 6 Relay G10 24-Bit Digital Wireless Guitar System with Automatic Setup, Includes Relay G10T Transmitter and Relay G10R Receiver

SKU: LIRELAYG10

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-07-28T13:59:57

Rated 5 out of 5

Great Guitar Add On

works very well. I now own 2 and my oldest one is almost 5 years old.

GARY H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Line 6 Relay G10 Specifications

System
  • Construction

    Polycarbonate, amp-top system

  • Antennas

    Internal antennas

  • Transmission Format

    4th generation Line 6 proprietary digital audio transmission

  • Latency

    < 2.9 ms, RF2 mode

  • Frequency Response

    10 Hz to 20 kHz

  • Dynamic Range

    > 110 dB

  • RF Carrier Frequency

    2.4 GHz, ISM band

  • Operating Mode

    RF2

  • Compatible Channels

    Up to 14

  • Frequency Scanning

    Yes

  • Scenes

    No

  • Support for Multiple Transmitters

    No

  • Support for Multiple Instruments

    No

  • Transmission Range

    Up to 50.0' line-of-sight, may vary due to local conditions

  • FCC Compliance

    Part 15 approved, no user license required

  • Cable Tone

    Factory set for 10' Length
    XLR output has no cable tone applied

G10T transmitter

Jump to...
  • A/D Conversion

    24-bit Delta Sigma, 128 times oversampling

  • Input Impedance

    1.3 MOhms

  • Connectors

    1 x 1/4" male, unbalanced input plug

  • LED Display

    Power, Status

  • Battery Life

    Approximately 8 hours (internal rechargeable battery)

  • Sleep Mode

    Automatic, activated after 4 minutes without any audio input (extends standby time up to 200 hours)

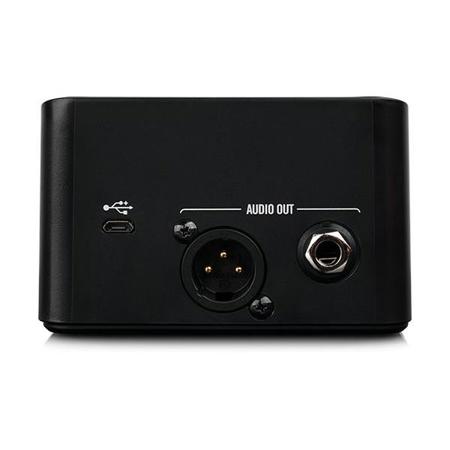

G10R receiver

Jump to...
  • D/A Conversion

    24-bit Delta Sigma, 128 times oversampling

  • Connections

    1x 1/4" output (unbalanced)
    1x XLR output (balanced)

  • LED Display

    Connection status
    Transmitter battery life

  • Power

    5 VDC, 1 A
    Micro USB

  • Power Supply

    Universal USB power supply included

  • UPC Code

    614252304825

About Line 6 Relay G10

FEATURED REVIEWS

Great Guitar Add On

By GARY H.

works very well. I now own 2 and my oldest one is almost 5 years old.

The Easiest Guitar Wireless System-ever

Wireless freedom. Cable simplicity
Playing guitar should be simple. Just plug-in and go. That's why we made Relay G10 incredibly easy to use-it works just like a guitar cable. You get incredible sound quality, rock-solid performance and the freedom of digital wireless-all from the world's easiest, most compact instrument wireless system.

Simple and Intuitive design

Plug in. And start playing
In the past, wireless guitar systems have often been complicated to use-not anymore. Relay G10 features an extremely simple and intuitive design that makes it easy to rock. Just plug in the 1/4" transmitter and the receiver will automatically select the best channel. G10 also makes switching instruments a breeze-the transmitter works with nearly all guitar types. Plus, thanks to separate XLR and 1/4" outs, you get flexibility in your choice of outputs. No complicated menus. No tedious setup. No hassle.

Easy Recharging

Always ready when you are
Other wireless systems require expensive external batteries or a bulky charging station. Not Relay. A long-lasting rechargeable transmitter gives you up to 8 hours of playing time per charge. When you're not playing, G10 enters sleep mode to extend battery life to as much as 200 hours. And when it's time to recharge, just dock the transmitter on the receiver and you're good to go. It doesn't get any easier than that.

Smart Features

Packed with innovative technology
Relay G10 is loaded with smart features to help you get the most out of your performance. Cable Tone technology matches the character and feel of a regular guitar cable. The system automatically activates when your transmitter is fully connected-eliminating annoying pops when you plug in your guitar. Finally, the receiver lights up, making it easy-to-see sync and battery status.

What's in the box:

  • Line 6 Relay G10T Guitar Transmitter
  • Relay G10R Receiver
  • USB Type-A to Micro-USB Cable
  • Universal USB Power Supply with International AC Adapter Kit
  • Line 6 1 Year Limited Warranty
