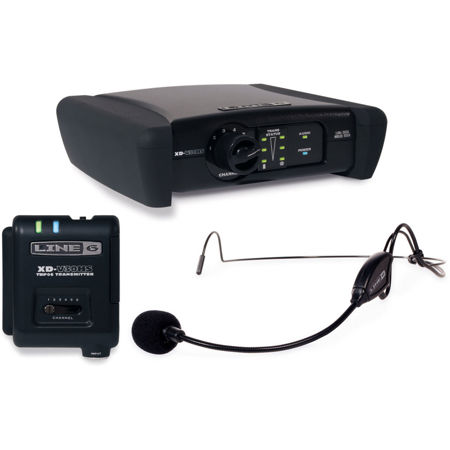

Line 6 XD-V30HS Digital Wireless Headset Microphone System with Bodypack Transmitter, Black

The wireless microphone system shall utilize digital conversion and operate in the 2.4 GHz ISM band. The system shall transmit a digital representation of the audio signal distributed over four separate RF frequencies that include a unique digital code sequence that identifies the transmission to the receiver thus locking out all other sources of interference without the need of squelch circuitry.

The system shall include the option of changing the compatible preset operating channels enabling up to 6 systems to operate simultaneously in the same location without interfering with one another. Effective range of the system shall be 30 meters (100 feet) under optimal conditions. Each transmitter shall be powered by two AA alkaline batteries.

System shall use both spatial and channel diversity to minimize dropouts and improve reception. Handheld transmitter shall have a power on-off and a channel select switch. A "hidden" switch shall provide lockout of the user control buttons. Mic capsule shall be field replaceable. Beltpack transmitter shall have a slide on-off switch. Beltpack shall have 1/4" TRS input jack and be capable of input signal up to 6.5 Vpp. Receivers shall have three-bar LEDs that show audio level. The system shall be Line 6 XD-V30 system.
