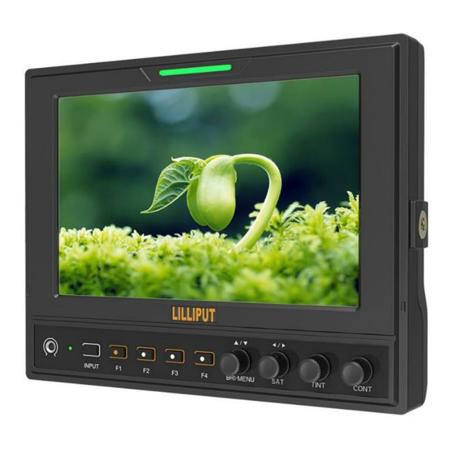

Lilliput 662/S 7" IPS Metal Framed Camera-Top LED Field Monitor with Built-In Speaker, 1280x800, 3G-SDI & HDMI Input/Output

The Lilliput 662/S monitor is a 7" widescreen metal framed LCD field monitor with 3G SDI and HDMI input and output. Featuring the advanced functionality you've come to expect from Lilliput monitors such as peaking, focus assist, wave form tools and false color filters.

Black Magic Pocket Cinema Camera Compatible
This monitor is fitted with the 2674 processing chip - which gives a greater range of input frequencies that can be used.

SDI & HDMI Cross Conversion
The HDMI output connector can actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal. In short, signal transmits from SDI input to HDMI output and from HDMI input to SDI output.

7 inch monitor with wide screen aspect ratio
The Lilliput 662/S monitor has a 1280x800 resolution, 7" IPS panel, perfect combination for use and the ideal size to fit neatly in a camera bag.

3G-SDI, HDMI and component and composite through BNC connectors
No matter which camera or AV equipment our customers use with the 662/S, there is a video input to suit all applications.

Optimized for Full HD Camcorder
Compact size and peaking functionality are the perfect complements to your Full HD Camcorder's features.

Foldable sunhood becomes screen protector
Customers frequently asked Lilliput how to prevent their monitor's LCD from getting scratched, especially in transit. Lilliput responded by designing 662's smart screen protector that folds out to become a sun hood. This solution provides protection for the LCD and saves space in the customers camera bag.

HDMI video output - no annoying splitters
662/S includes an HDMI-output feature which allows customers to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected.

High resolution
662/S uses the latest IPS LED-backlit display panels that feature higher physical resolutions. This provides higher levels of detail and image accuracy.

High contrast ratio
662/S provides even more innovations to pro-video customers with its super-high contrast LCD. The 800:1 contrast ratio produces colors that are vivid, rich - and importantly - accurate.

Configurable to suit your style
Since Lilliput introduced the complete range of HDMI monitors, we have had countless requests from our customers to make changes to improve our offering. Some features have been included as standard on 662/S. Users can customize the 4 programmable function buttons (namely F1, F2, F3, F4) for shortcut operation according to different needs.

Wide viewing angles
Lilliput's monitor with the widest viewing angle has arrived! With a stunning 178 degrees viewing angle both vertically and horizontally, you can get the same vivid picture from wherever you are standing.
