What is the resolution of the 665/S/P 7" Camera-Top LED Monitor?

The 665/S/P 7" Camera-Top LED Monitor features a high resolution of 1024x600 pixels, providing more detail on your screen.

What are the input options for the 665/S/P 7" Camera-Top LED Monitor?

This monitor is equipped with versatile input options including 3G-SDI, HDMI, YPbPr, and component video inputs, making it compatible with a wide range of cameras and AV equipment.

What advanced camera auxiliary functions does the 665/S/P 7" Camera-Top LED Monitor offer?

The monitor boasts advanced camera auxiliary functions such as Peaking, False Color, Histogram, and Exposure, addressing major concerns for DSLR users.

What is the power input range of the 665/S/P 7" Camera-Top LED Monitor?

The 665/S/P monitor offers a wide power input range of 6.5-24V DC, making it suitable for a variety of applications.

Can the 665/S/P 7" Camera-Top LED Monitor be customized to suit specific needs?

Yes, the monitor features four programmable function buttons (F1, F2, F3, F4), allowing you to customize it to suit your specific needs.

Don P : 1) Does this accept both SD-SDI and HD-SDI? 2) Is an AC adapter included?

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Lilliput 665/S/P Specifications

  • LCD Size

    7" / 177.80mm

  • Display Resolution

    1024 x 600

  • Active Area

    6.04 x 3.54" (153.6 x 90 mm)

  • Dot Pitch

    0.15 x 0.15 mm

  • Aspect Ratio

    17:10

  • Brightness

    250 cd/m2

  • Contrast Ratio

    800:1

  • Backlight

    White LED

  • Surface Treatment

    Hard coating with EWV Film

  • Response Time

    Typical: Tr: 14 ms, Tf: 11 ms, Maximum: Tr: 17 ms, Tf: 14 ms

  • View Angle

    80/80 deg. (Left/Right) and 80/70 deg. (Up/Down)

  • Interface

    Audio, Video, YPbPr, HDMI, XLR, DC Power

  • Input Connector

    3G-SDI, AV, YPbPr & HDMI

  • Output Connector

    3G-SDI, HDMI, Video

  • Power

    7 to 24 VDC

  • Power Consumption

    =10 W

  • Control

    Basic: Power, Video, YPbPr, HDMI bottoms. F1-F4 User-definable buttons, BRI/MENU knob, SAT/ADJ knob, TINT knob, CONT knob, Advanced: Brightness, Contrast, Saturation, Tint, Volume, Sharpness, Color Temp, Check Field, Aspect Ratio, Pixel-to-Pixel, Camera, H/V delay, Underscan, Center Marker, Screen Markers, Language, PIP, Input Format OSD, LOGO, Freeze Input, Image Flip, Assistant Function, Manufacturer Default, Color Bar, Zoom.

  • HDMI Format Support

    Full HD: 1080p (60/59.94/50/30/29.97/25/24/23.98/23.976/24SF)
    HD: 1080i (60/59.95/50 Hz), 1035i (60/59.94 Hz), 720p (60/59.94/50/30/29.97/25 Hz)
    SD: 576p (50 Hz), 576i (50 Hz), 480p (60/59.94 Hz), 486i (60/59.94 Hz)

  • Speaker

    Built-in 1 W

  • Menu Language

    English/Chinese

  • Temperature

    Operating: -4 to 140 deg. F / -20 to 60 deg. C
    Storage: -22 to 158 deg. F / -30 to 70 deg. C

  • Dimensions

    7.65 x 5.9 x 1.51" / 194.31 x 149.86 x 38.35mm

  • Weight

    16.93oz / 479.96g
    22.57oz / 639.85g with cover

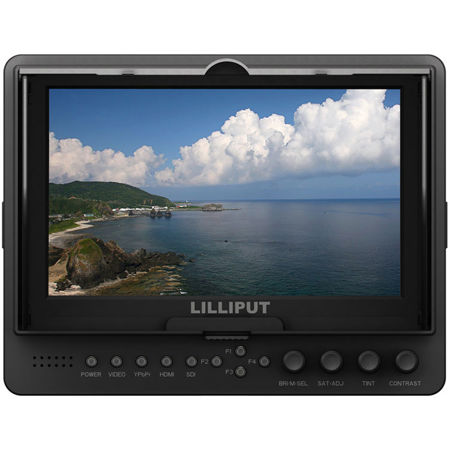

About Lilliput 665/S/P

Why settle for less when you can have the best with the 665/S/P 7" Camera-Top LED Monitor This high-quality, BlackMagic compatible monitor is designed with the professional videographer in mind. It features a superior resolution of 1024x600, providing 25% more pixels than other 7" monitors in the market. This means you get more detail on your screen, ensuring what you see during shooting is exactly what you get during post-production.

This 7" LED field monitor is equipped with 3G-SDI, HDMI, YPbPr, and component video inputs, making it versatile and compatible with a wide range of cameras and AV equipment. It also boasts advanced camera auxiliary functions such as Peaking, False Color, Histogram, and Exposure, addressing major concerns for DSLR users and making photo and video recording even easier.

The 665/S/P monitor stands out with its unique HDMI-output feature, allowing users to duplicate video content onto a second monitor without the need for HDMI splitters. Regardless of the size of the second monitor, the picture quality remains unaffected, offering you flexibility and convenience.

With an impressive 800:1 contrast ratio, this monitor provides clear and consistent colors, thanks to its enhanced LED backlight technology. This high contrast ratio ensures that you won't encounter any unexpected surprises during post-production.

The 665/S/P monitor also offers a wide power input range of 6.5-24V DC, making it suitable for a variety of applications and ready for any shoot. It also comes with a wide selection of battery plates, including DU21, QM91D, LP-E6, F970, Anton, and V-mount, further enhancing its versatility.

The package includes a shoe mount adapter and features quarter-inch Standard Whitworth threads on the bottom and both sides, allowing for easy mounting on a tripod or camera rig. Plus, with four programmable function buttons (F1, F2, F3, F4), you can customize the monitor to suit your specific needs.

Experience the difference with the 665/S/P 7" Camera-Top LED Monitor, a product that combines durability, high-quality hardware, and advanced features at a competitive price.

Lilliput 665/S/P Features

  • High-resolution 7" Camera-Top LED Monitor with 1024x600 pixels for detailed viewing
  • Versatile input options including 3G-SDI, HDMI, YPbPr, and component video
  • Advanced camera auxiliary functions such as Peaking, False Color, Histogram, and Exposure
  • Unique HDMI-output feature for duplicating video content to a second monitor
  • High contrast ratio of 800:1 for clear and consistent colors
  • Wide power input range of 6.5-24V DC and an array of battery plate options
  • Includes shoe mount adapter and features quarter-inch Standard Whitworth threads for easy mounting
  • Four programmable function buttons for customized operation

Key Features

  • High-resolution 7" Camera-Top LED Monitor with 1024x600 pixels for detailed viewing
  • Versatile input options including 3G-SDI, HDMI, YPbPr, and component video
  • Advanced camera auxiliary functions such as Peaking, False Color, Histogram, and Exposure
  • Unique HDMI-output feature for duplicating video content to a second monitor
  • High contrast ratio of 800:1 for clear and consistent colors
  • Wide power input range of 6.5-24V DC and an array of battery plate options

What's in the box:

  • Lilliput 665/S/P 7 " Camera-Top LED Monitor
  • Flexible Folding Sun Shade
  • Sony F-970 Battery Plate
  • Canon LP-E6 Battery Plate
  • Battery Plate Bracket
  • HDMI Type-A to Type-C Cable
  • 12 VDC Adapter
  • Lilliput 1 Year Limited Warranty
