Lilliput 667GL-70NP/H/Y Specifications

  • LCD Size

    7"

  • Video System

    NTSC/PAL

  • Resolution

    800 x 480

  • Aspect Ratio

    16:9

  • Brightness

    450 nit

  • Contrast

    500:1

  • Viewing Angle

    140 deg. /120 deg. (H/V)

  • Input and Output Connectors

    Input
    HDMI: 1x HDMI Type A
    Component: 3x BNC
    Composite: 2x BNC
    Audio: 1x BNC
    Output: Speaker: 1x W

  • Input Resistance

    75Ohms

  • Mounting

    3 x 1/4"-20 threaded mounting holes

  • Language

    English, Chinese

  • Power Connectors

    1x 4-pin XLR, 1x Battery plate slot, 1x Coax connector

  • Power Requirements

    7 to 24 VDC
    Operating Current: 650 mA
    Max Standby Current: 50 mA

  • Power Consumption

    Max: 8 W

  • Dimensions (W x H x D)

    Monitor Without Sun Hood: 7.4 x 5.2 x 1.3" / 187.96 x 132.08 x 33.02mm
    Monitor With Sun Hood: 7.6 x 5.3 x 2.9" / 193.04 x 134.62 x 73.66mm

  • Weight

    Monitor Without Sun Hood: 1.1lbs / 0.50kg
    Monitor With Sun Hood: 1.5lbs / 0.68kg

  • UPC Code

    6950821600238

About Lilliput 667GL-70NP/H/Y

FEATURED REVIEWS

Very good quality

By Ron H.

I like the quality and flexibility. I'm using it in an art display and it serves my purpose very well.

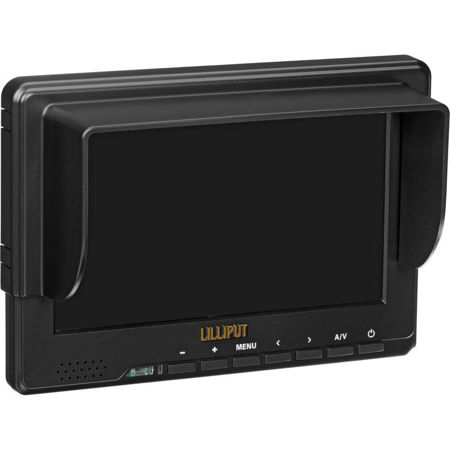

Make your photography and videography experience more immersive with the Lilliput 667GL-70NP/H/Y, a 7" Camera-Top LED Monitor. This high-quality field monitor offers a widescreen LCD display with HDMI, component, and composite video inputs, providing a larger, clearer viewfinder for directors and cameramen.

The 7" screen, with its 16:9 aspect ratio, is designed to complement HD resolutions, providing an enhanced viewing experience. This makes the Lilliput 667GL-70NP/H/Y an ideal addition to any DSLR camera setup, most of which support HDMI output.

Despite being designed for the professional video market, this monitor is priced affordably, offering high-quality hardware without the hefty price tag of more well-known brands. It comes with a variety of accessories, including a shoe mount adapter, sunhood, HDMI cable, and remote control, eliminating the need for additional aftermarket purchases.

The LED backlit display boasts a 500:1 color contrast ratio, ensuring rich, vibrant colors and accurate color representation. The matte surface prevents glare or reflection, making it ideal for outdoor work. With a high brightness level of 450 cd/m2, the monitor produces a clear, bright picture, even under sunlight. The included sunhood further enhances clarity in bright conditions.

The Lilliput 667GL-70NP/H/Y offers wide viewing angles, remaining perfectly viewable up to 130 degrees horizontally and 120 degrees vertically from the center point. This is particularly useful when multiple people need to view content on a single monitor.

Unlike the 668 model, the 667 includes two battery plates compatible with Sony NP-F970 and Canon LP-E6 batteries. It also features a variety of video inputs to suit all applications, including HDMI, component, and composite through BNC connectors.

This versatile monitor also includes a shoe mount adapter, saving you the additional cost of purchasing a separate unit. With 2 1/4" BS Whitworth thread inserts, the monitor can be quickly mounted on either a tripod or camera.

Whether you're a professional videographer or a passionate photographer, the Lilliput 667GL-70NP/H/Y 7" Camera-Top LED Monitor is a valuable addition to your equipment arsenal.

Lilliput 667GL-70NP/H/Y Features

  • 7" widescreen LCD monitor complements HD resolutions with HDMI, component & composite inputs
  • 16:9 aspect ratio for a larger, clearer viewfinder experience in professional video setups
  • High-quality LED backlit display with 500:1 contrast ratio for accurate color representation
  • Sunlight-readable with 450 cd/m2 brightness and included sunhood for outdoor clarity
  • Wide viewing angles up to 130° horizontally and 120° vertically for multi-person monitoring
  • Comes with essential accessories: shoe mount adapter, HDMI cable, and remote control

Key Features

  • 7" widescreen LCD monitor complements HD resolutions with HDMI, component & composite inputs
  • 16:9 aspect ratio for a larger, clearer viewfinder experience in professional video setups
  • High-quality LED backlit display with 500:1 contrast ratio for accurate color representation
  • Sunlight-readable with 450 cd/m2 brightness and included sunhood for outdoor clarity
  • Wide viewing angles up to 130° horizontally and 120° vertically for multi-person monitoring
  • Comes with essential accessories: shoe mount adapter, HDMI cable, and remote control

What's in the box:

  • Lilliput 667GL70NP/H/Y 7 " Camera-Top LED Monitor
  • IR Remote Control
  • Snap-On Sunshade
  • Table Top Mounting Bracket
  • Panasonic DU21 Type Battery Plate
  • Sony L-Series Type Battery Plate
  • AC Power Supply
  • Lilliput 1 Year Limited Warranty
