What is the resolution of the Lilliput 969A/S 9.7" 3G-SDI Monitor?

The Lilliput 969A/S 9.7" 3G-SDI Monitor has a high resolution of 1024 x 768 for detailed and clear visuals.

What input options does the Lilliput 969A/S 9.7" 3G-SDI Monitor offer?

The Lilliput 969A/S 9.7" 3G-SDI Monitor offers multiple input options including 3G-SDI, HDMI, YPbPr, and AV for versatile connectivity.

Is the Lilliput 969A/S 9.7" 3G-SDI Monitor portable?

Yes, the Lilliput 969A/S 9.7" 3G-SDI Monitor is designed to be portable. It features a compact and lightweight design, and it also has a built-in rechargeable battery for on-the-go use.

Can the Lilliput 969A/S 9.7" 3G-SDI Monitor be used outdoors?

Yes, the Lilliput 969A/S 9.7" 3G-SDI Monitor is equipped with a built-in sun hood to ensure optimal viewing even in bright outdoor settings.

Who is the Lilliput 969A/S 9.7" 3G-SDI Monitor intended for?

The Lilliput 969A/S 9.7" 3G-SDI Monitor is ideal for professionals in film and television production, live events, and other applications where a small, high-resolution display is needed.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Lilliput 969/S Specifications

LCD Display

LCD Display

Jump to...
  • LCD Size

    9.7" (24.6cm)

  • Display Resolution(Dot)

    1024 x R.G.B. x 768

  • Active Area (H x V)

    196.608 x 147.456mm

  • Dot Pitch (H x V)

    0.192 x 0.192mm

  • Aspect Ratio

    4:3

  • Brightness

    400 cd/sq. m

  • Contrast Ratio

    600:1

  • Back-Light

    White LED

  • Surface Treatment

    Hard coating(3H), Glare treatment of the front Polarizer (Haze 0%)

  • Response Time Note

    Symbol: Ton+Toff
    Typ. (ms): 30
    Max (ms): 50

  • View Angle (Degree)

    89/89 (Left/Right)
    89/89 (Up/Down)

Interface

Jump to...
  • Interface

    Earphone, SDI, YPbPr, Audio, HDMI, Mini USB, Power cable interface, TALLY signal, USB, XLR DC power

Connector

Jump to...
  • Input

    HDMI, YPbPr, SDI, TALLY, AUDIO

  • Output

    HDMI, YPbPr, SDI, USB

  • Power

    DC 7-24V

  • Power Consumption

    <=18Watts

SDI FORMAT

Jump to...
  • SMPTE-425M-A

    1080p (60/59.95/50/30/29.97/25/24/23.976/24sf)

  • SMPTE-274M

    1080p (30/29.97/25/24/24Sf/23.976)
    1080i (60/59.94/50)

  • SMPTE-296M

    720p (60/59.94/50/30/25)

  • SMPTE-125M

    480i (60/59.94)

  • ITU-R BT.656

    576i (50)

Control

Jump to...
  • Basic

    Battery power, Video, YPbPr, HDMI bottoms.
    F1-F4 User-definable buttons, BRI/M/SEL knob, SAT/ADJ knob, TINT knob, CONTRAST knob

  • Advance

    Brightness, Contrast, Saturation, Tint, Volume, Sharpness, Color Temp, Check Field, Aspect Ratio, Pixel-to-Pixel, Camera, H/V delay, Underscan, Center Marker, Screen Markers, Language, PIP, Input Format OSD, LOGO, Freeze Input, Peaking, Assistant Func., Manufacturer Default, Color Bar, Zoom, ISP.

General

Jump to...
  • Speaker

    Built in, 1 Watts

  • Menu Language

    English/Chinese

  • Storage Temperature

    -22 Degree F - 158 Degree C (-30 Degree C - +70 Degree C)

  • Operation Temperature

    -4 Degree F - 140 Degree F (-20 Degree C - +60 Degree C)

  • Operation at High Temperature/Humidity

    Ta=+60 Degree C, 240hrs

  • Dimension (L x W x D)

    With Cover: 9.68 x 8.81 x 6.59" (246 x 224 x 167.5mm)
    Without Cover: 9.68 x 8.81 x 1.22" (246 x 224 x 31mm)

  • Weight

    With Case: 3.06 lb (1.38kg)
    Without Case: 2.35 (1.06kg)

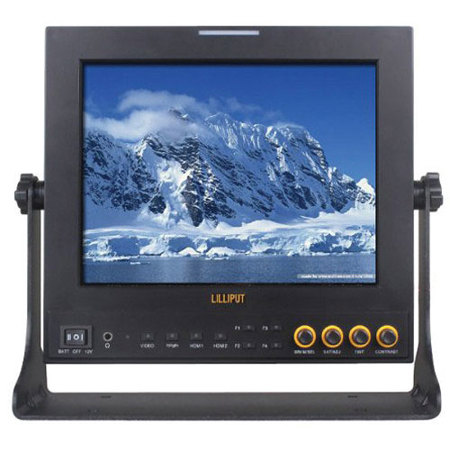

About Lilliput 969/S

Where high-quality visuals and efficient performance meet, you'll find the Lilliput 969A/S 9.7" 3G-SDI Monitor. This compact, yet durable monitor is designed with a 4:3 IPS LED HD display, offering a superior resolution of 1024 x 768. This high-resolution display ensures that every image and video is presented with exceptional detail and clarity, making it an ideal choice for professionals in film and television production, live events, and video editing.

The Lilliput 969A/S is not just about high-quality visuals, it's also about versatility. With multiple input options including 3G-SDI, HDMI, YPbPr, and AV, this reliable monitor can seamlessly connect to a wide range of video sources. The inclusion of a built-in sun hood ensures optimal viewing even in bright outdoor settings.

Its user-friendly design is highlighted by its lightweight and compact size, making it easy to transport and set up in various locations. The monitor also comes with a table mount, allowing for easy adjustment and positioning based on your viewing preference.

Moreover, the Lilliput 969A/S is equipped with a built-in rechargeable battery, making it a truly portable solution for all your video monitoring needs. Whether you're on a film set, at a live event, or in a studio, the Lilliput 969A/S 9.7" 3G-SDI Monitor delivers reliable, high-quality performance every time.

Lilliput 969/S Features

  • 9.7" 3G-SDI Monitor
  • IPS Panel 178 Degree wide viewing angles
  • High Resolution: 1024 x768
  • High Brightness: 400cd/sq m
  • High Contrast: 600:1
  • 3G-SDI & HDMI input
  • Wide Voltage: DC 7-24V
  • TALLY interface & 5V charging

Key Features

  • 9.7" IPS LED HD display with high resolution of 1024 x 768 for detailed visuals
  • Multiple inputs including 3G-SDI, HDMI, and component video for versatile connectivity
  • Compact and durable design with a built-in sun hood for optimal outdoor viewing
  • User-friendly with a lightweight structure and table mount for easy positioning
  • Built-in rechargeable battery for portable, on-the-go video monitoring
  • Ideal for professional use in film, television, and live event production environments

What's in the box:

  • 1x Monitor
  • 1x Flexible Folding Sun Shade
  • 1x Battery Plate Bracket
  • 2x Battery Plate(F-970&LP-E6)
  • 1x HDMI A/A Cable
  • 1x DC 12V Adapter
  • 1x TALLY Connector
  • 1x Gimbals Bracket
  • Manual
  • Lilliput 1 Year Warranty
