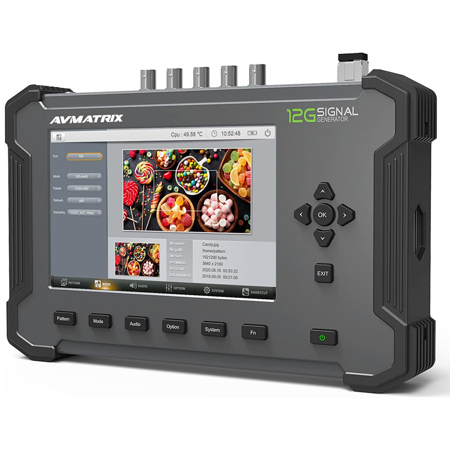

AVMatrix 12G-SDI and 4K HDMI 2.0 Pattern Generator

How can you ensure the highest quality in your video production With the advanced 12G-SDI and 4K HDMI 2.0 Pattern Generator from Avmatrix, a leader in professional video equipment. This high-tech tool is designed to generate sophisticated test patterns, including color bars, monochrome displays, and customized pictures, allowing you to accurately test color temperature and grayscale on your monitor.

This innovative pattern generator offers a wealth of preset and importable patterns, enabling you to create any color picture based on two different color spaces - RGB or YCbCr. It supports a wide range of signal compatibilities, including SD, HD, 3G, 6G, 12G-SDI, and 4K HDMI signals, as well as SDI, Fiber, and HDMI signals up to 4K 60Hz.

The device offers a multitude of mode options, allowing you to select from 12G-SDI6G-SDV, 3G-SDI/HD-SDI/SD-SDI, and HDMI signal formats. It also provides various raster options with different resolutions corresponding to different modes, and refresh options with different rates corresponding to different modes and raster.

The 12G-SDI and 4K HDMI 2.0 Pattern Generator also features a comprehensive audio output tool that supports up to 8 or 16 channels of embedded AES/EBU audio, with a range from -60dB to 0dB and a frequency from 20 to 20000.

For more advanced applications, the device offers an "Option" function that includes Overlay, Timecode, Ref In, HDR, EDID, and Closed Caption functions, enabling you to analyze different signals and formats. It also supports HLG and SMPTE protocol types and can import up to 10 custom HDR types.

The pattern generator also includes a user-definable function shortcut, supporting more than one hundred shortcut functions for time-saving and high efficiency during testing.

In summary, the 12G-SDI and 4K HDMI 2.0 Pattern Generator is a sophisticated, professional tool that ensures the highest quality in your video production.
