Lilliput BM230-4K Specifications

  • Display: Screen

    23.8" (60.4 cm)

  • Display: Resolution

    3840 x 2160

  • Display: Aspect Ratio

    16:9

  • Display: Brightness

    300 cd/m2

  • Display: Contrast Ratio

    1000:1

  • Display: Viewing Angle (H/V)

    178/178 deg.

  • Input

    1x 3G-SDI, 1x HDMI 2.0, 3x HDMI 1.4, 1x DVI, 1x 4-Pin XLR, 1x VGA, 1x Stereo RCA audio, 1x VGA tally

  • Output

    1x 3G-SDI, 1x 3.5 mm Headphone jack

  • Speaker

    2x L/R

  • Headphone Output

    Yes

  • Current

    2800 mA (15 V)

  • Input Voltage

    12 to 24 VDC (XLR)

  • Power Consumption

    =36 W

  • Operating Temperature

    32 to 140 deg. F / 0 to 60 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Dimensions

    Without case: 24.0 x 15.0 x 1.7" / 609.60 x 381.00 x 43.18mm
    With case: 26.0 x 16.5 x 7.0" / 660.40 x 419.10 x 177.80mm

  • Weight

    Without case: 20lbs / 9.07kg
    With case: 38lbs / 17.24kg

About Lilliput BM230-4K

The Lilliput BM230-4K is a 23.8" 4K resolution monitor with HDMI and SDI connectivity. Designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment.

4K Ultra-HD resolution
The BM230-4K monitor features the latest 4K imaging technology. Connected through by HDMI 2.0, 4K screens are Ultra HD - containing 8.3 million pixels making the resolution four times more powerful than full HD making them the ultimate in cinematic displays.

23.8" monitor with widescreen
The monitor's 23.8" 16:9 LED display gives a widbm230e viewing angle and consistently great images from any perspective. It's large enough to gather a crowd and gives a great picture from any angle

Precision colors with 1000:1 contrast ratio
The BM230-4K has a 1000:1 contrast ratio and 300cd/m brightness ratio, giving you sharper pictures and rich colors. Enjoy more detailed images than ever before.

Carry-on suitcase for superior protection
The monitor comes with a specially designed flight case for greater robustness and portability. The design also allows for greater heat radiation and ensures greater reliability over longer shoots.

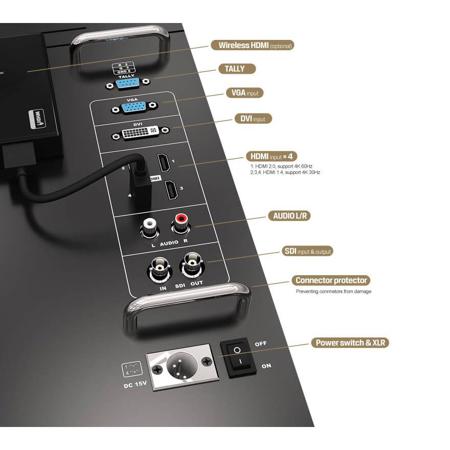

Connectivity for all video standards
The monitor comes with all of the major video standards used in commercial and the video industry. The BM230K connects using HDMI for 4K resolutions and can connect using either HDMI or SDI for standard 1080p and below resolutions. This gives the ability to meet the needs of any professional display solution.

Metal outer housing
An aluminum outer body provides excellent protection to extend the lifetime of your monitor.

Programmable Function keys
4 Programmable function keys on the front of the monitor allow you to shortcut to your most used functions, such as peaking, histograms, check field, image flip etc.

What's in the box:

  • Lilliput BM230-4K 23 " Carry-on 4K LED Monitor
  • Sunshade
  • Power Cord
  • 2x Power Adapter Fixing Belts
  • Tally Connector
  • Lilliput 1 Year Limited Warranty
