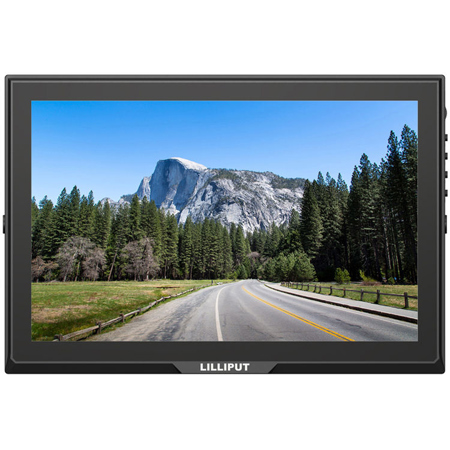

Lilliput FA1014-NP/C 10.1" IPS HDMI Monitor, 1280x800
See all Lilliput items

Lilliput FA1014-NP/C 10.1" IPS HDMI Monitor, 1280x800

SKU: LLFA1014NPC

This item is no longer available.

Recommended Alternatives

Lilliput 663 Monitor: Picture 1 regular
Lilliput 663 7" Camera-Top HDMI LED Monitor, 1280x800
$269.00
Lilliput 663/S2: Picture 1 regular
Lilliput 663/S2 7" Camera-Top Monitor with Waveform, 3G-SDI Input & Output
$439.00
Lilliput 664 Monitor: Picture 1 regular
Lilliput 664 7" Camera-Top Monitor, 1280x800, HDMI Input
$249.00
Lilliput 665: Picture 1 regular
Lilliput 665 7" Monitor (HDMI Input and Output, Basic Software Function)
$216.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : the reviewer said "not compatible with Blackmagic" - Blackmagic what? Cameras? Atem Mini? be specific please!Joanna C : The monitor accepts input resolution up to 1080p not 4K, so any Blackmagic has 4k resolution is not compatible,thanks!
Shopper : Why Did You Choose This?Jeff W : Needed to see thing at another scale as iI film soccer games

Reviews about this item

Review Summary

2017-05-12T14:01:15

Rated 1 out of 5

Not compatible

Not compatible with Blackmagic.

lara d.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Lilliput FA1014-NP/C Specifications

  • Display Screen

    10.1" (25.6 cm) LED backlit

  • Resolution

    1280 x 800
    Supports up to 1920 x 1080

  • Active Area (W x H)

    8.5 x 5.3" (216.96 x 135.6 mm)

  • Dot Pitch

    0.0565 x 0.1695 mm

  • Aspect Ratio

    16:10

  • Contrast Ratio

    800:1

  • Brightness

    350 cd/m2

  • Viewing Angle

    170 deg. / 170 deg. (H/V)

  • Response Time

    Typical:
    10 msec (Rise Time)
    15 msec (Fall Time)

    Maximum:
    20 msec (Rise Time)
    30 msec (Fall Time)

  • Input Connectors

    AV1, AV2, PC (VGA), HDMI, & DVI

  • Speaker

    Built in

  • Audio Output

    <=1 W

  • Interface

    AV, DC Power, HDMI, VGA, I/O port

  • Light Source

    Single LED (Side-light type)

  • Control

    Basic:
    Dial, Menu, FN, Input, Power

    Advanced:
    Brightness, Contrast, Saturation, Tint, Sharpness, Volume, Color Temp, Center Marker, Safety Marker, Aspect Ratio, H/V delay, Check Field, Pixel-to-Pixel, Underscan, Zoom, Freeze Input, Auto, H-Position, V-Position, Phase, Clock, Language, Reset, Backlight, Auto Light, Image Flip, Upgrade

  • Menu Language

    English/Chinese

  • Battery

    External (available separately)

  • Input Voltage

    7 to 24 VDC

  • Current

    800 mA

  • Power Supply

    12 VDC, 1500 mA (adapter included)

  • Power Consumption

    <=10 W

  • Storage Temperature

    4 to 140 deg. F (-20 to 60 deg. C)

  • Operation Temperature

    32 to 122 deg.F (0 to 50 deg.C)

  • Operation Time

    120 h at 104 deg.F (40 deg.C) and 90% RH

  • Dimensions (H x W x D)

    170 x 250 x 29.5mm (6.69 x 9.84 x 1.16")

  • Weight

    19.8oz (561.32g)

  • UPC Code

    6950821600818

About Lilliput FA1014-NP/C

The Lilliput FA1014-NP/C is a 10.1 inch 16:9 LCD monitor with HDMI VGA and composite.

Black Magic Pocket Cinema Camera Compatible
This monitor is fitted with the 2674 processing chip - which gives a greater range of input frequencies that can be used

10.1" monitor with widescreen
Featuring a widescreen 16:9 aspect ratio, the FA1014 includes multiple AV connections to satisfy a broad range of customers requirements.

HDMI upscaling for full 1080p compatibility
With it's IPS type screen panel the FA1014 boasts a native 720p resolution with full 1080p HDMI resolution available.

High brightness LCD panel
The FA1014 comes with a 350cd/m2 panel allowing for viewing in sunny conditions and also comes with auto dimming controls for darker areas.

Connection friendly for computer and multimedia systems
As with all modern Lilliput monitors, FA1014 ticks all the boxes when it comes to AV connectivity: HDMI,VGA and composite ideal for connectivity with computer and multimedia systems.

Raspberry Pi compatible monitor
The FA1014 is HDMI compatible making it a good match for the Raspberry Pi for small form PC systems.

I/O Control Interface
The FA1014 supports extra functionality such as reverse trigger camera mode and computer host power controls. These functions can now be handled by the newest standard; the I/O control interface port found on newer models in the Lilliput range.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Lilliput FA1014-NP/C 10.1 " IPS HDMI Monitor
  • 8-Key Remote Control
  • HDMI Cable
  • VGA Cable
  • I/O Control Line
  • A/V Input Cable
  • DC 12V Plug
  • Car Power Adapter
  • Lilliput 1 Year Limited Warranty
